Description

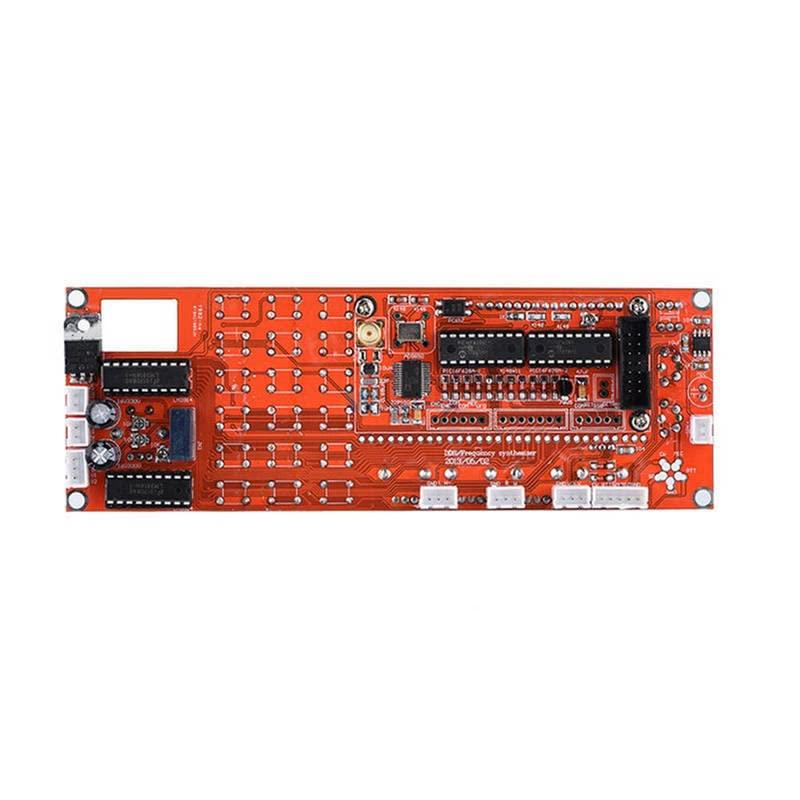

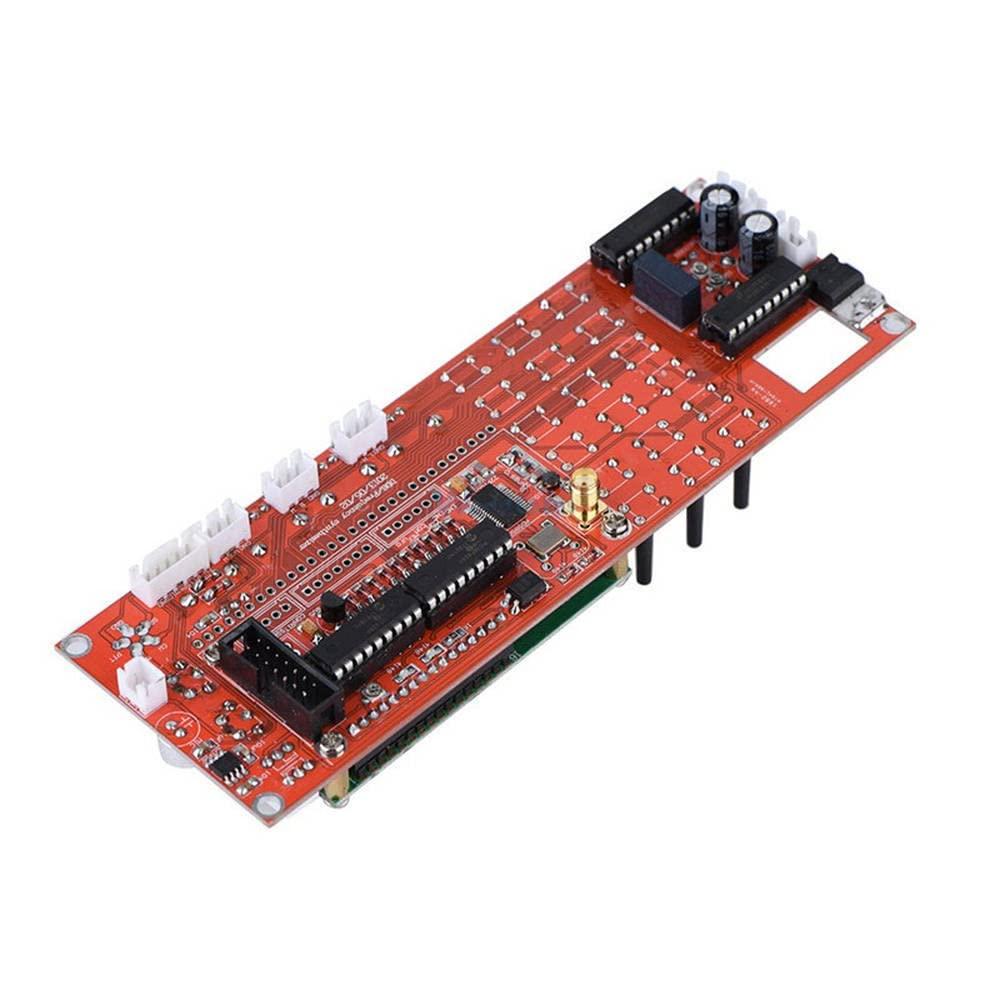

- 0~55MHz AD9850 Module DDS Signal Generator Shortwave radio Wave band for HAM Radio SSB6.1 Transceiver VFO SSB
Descriptions:
1.This is a 0~55Mhz Dds Signal Generator. It is Based on Ad9850 Chip and is Very Easy to Operate.Supports 0~55Mhz Continual Adjustment At 1Hz Step.
2.Input 12V.
3.With Direct Digital Input Frequency.
4.With Audio Volume Potentiometer.
5.With Amp. Gain Potentiometer.
Color: Red

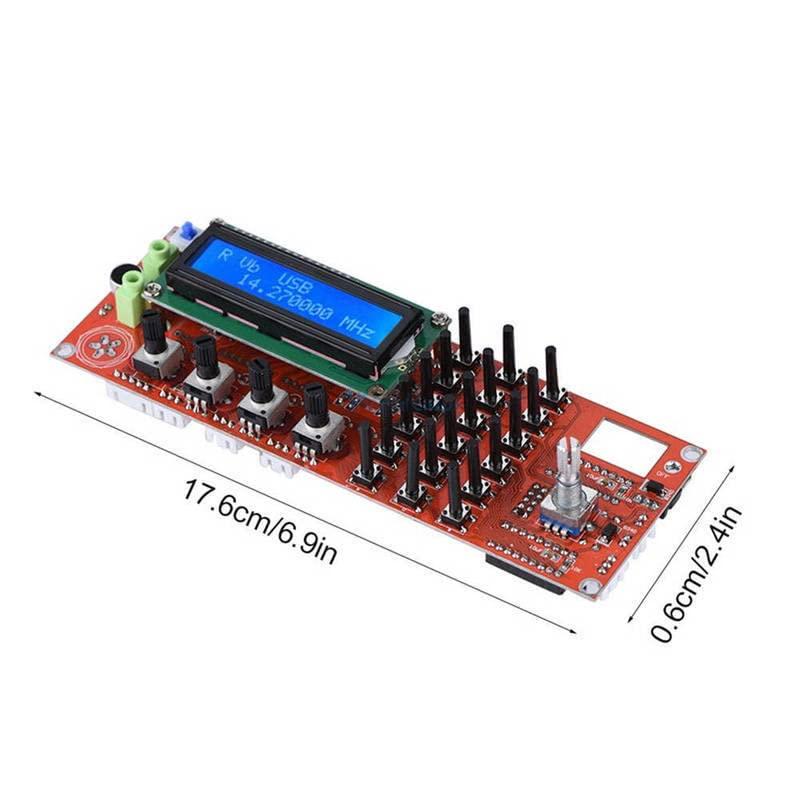

Dimension: Approx. 176 * 60mm / 6.9 * 2.4inch
Package weight: 131g

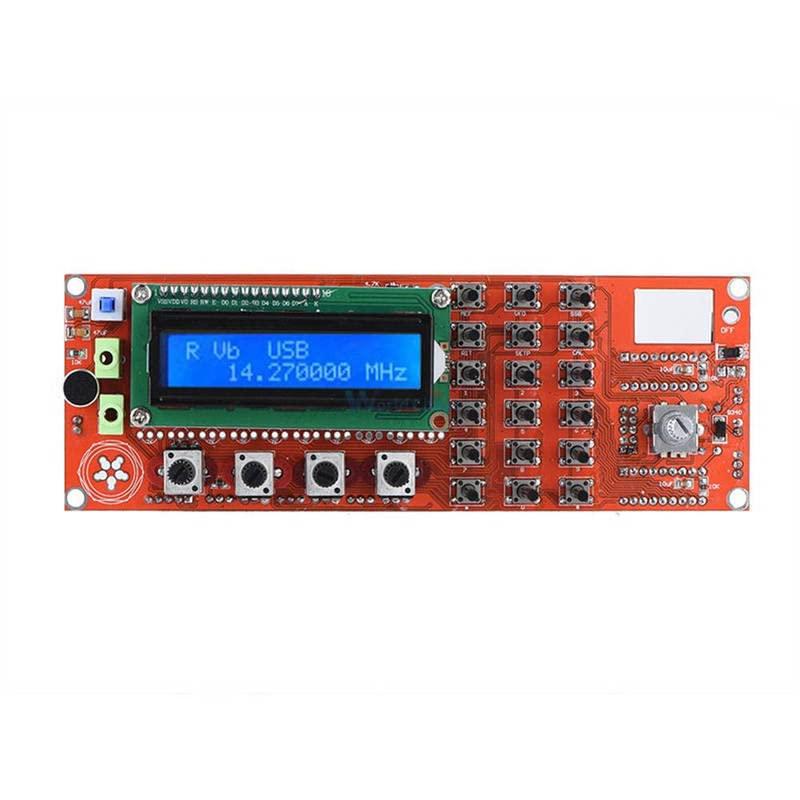

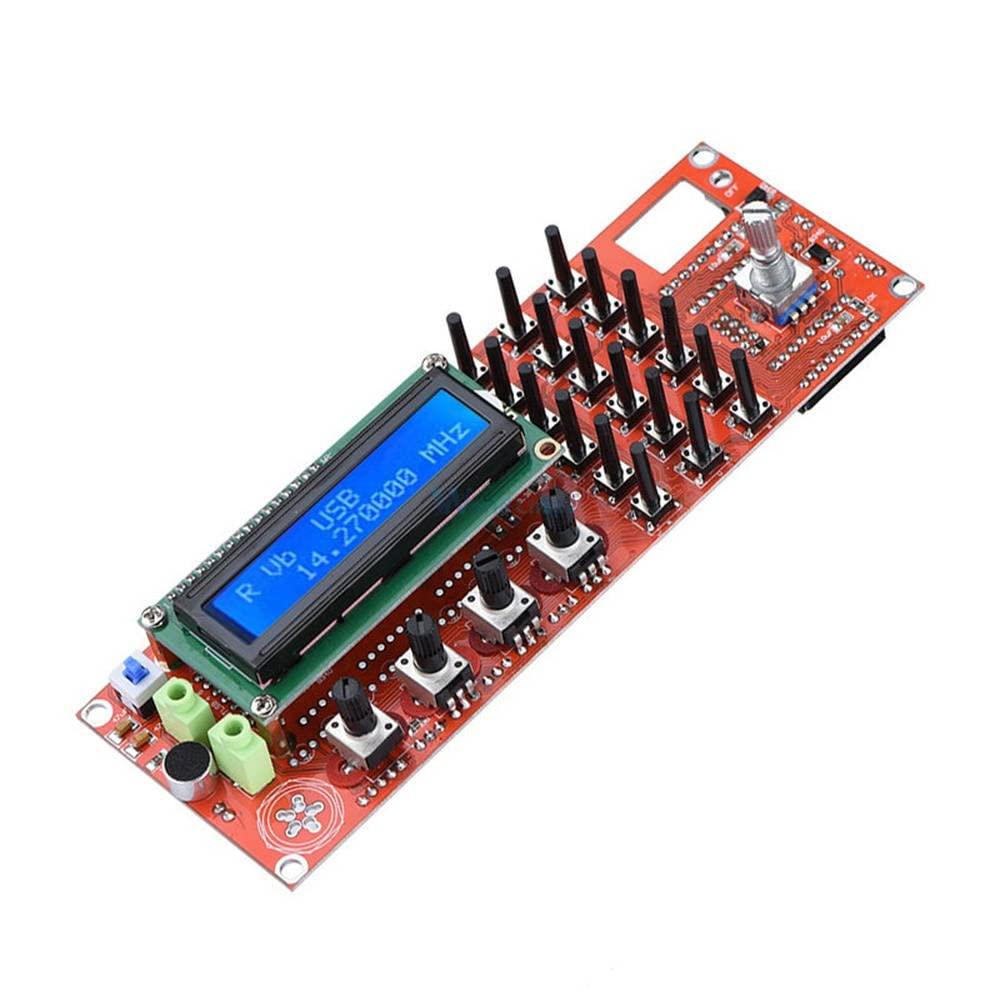

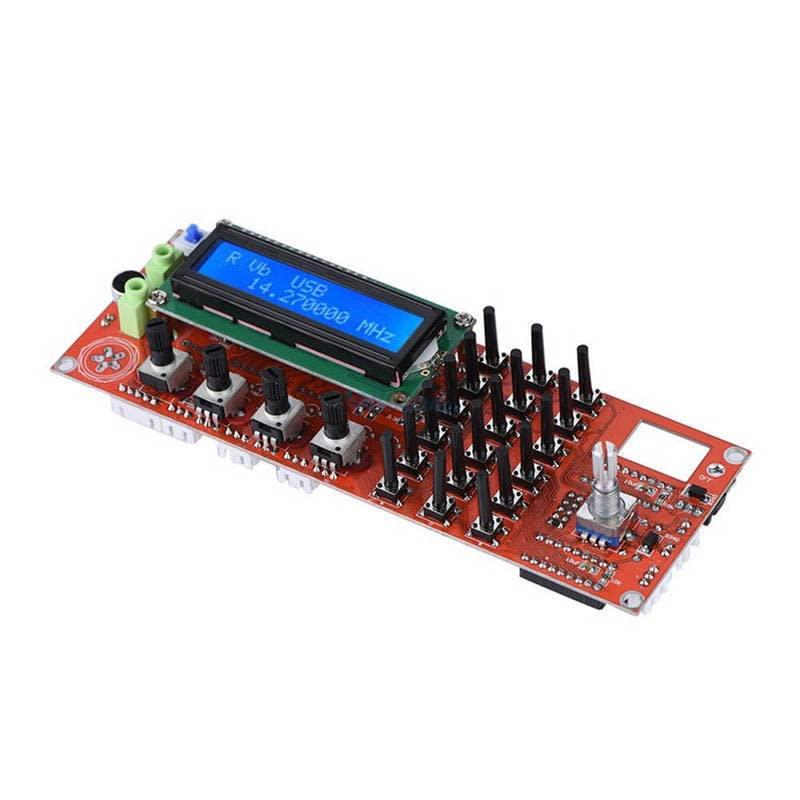

Keys & Connection interfaces:
ENC: encoder switch
MEM: switch for memory mode
VFO: Transfer from VFO A to VFO B, or from VFO B to VFO A.
SSB: Working mode change: circulate from USB, LSB, AM, CW, and on and on...
RIT: Fine tuning to receiving frequency
CAL: Set functions
KB-1 and KB-2 have common shared pin, but is not GND.
Notes:
1. DDS SYSTEM CLK: can use frequency tester to get 30MHz oscillator, multiply the tested value at 6, then put the multiplied value here. If using AD9851, make initial setting at 180000000.
2. OFFSET FREQ: can be set as + or - . Rotate encoder switch to change value, press STEP key, then rotate encoder switch to adjust step. Minimum working frequency plus (+) offset frequency should be high than 0 (zero).
Package List:
1 x DDS Signal Generator
