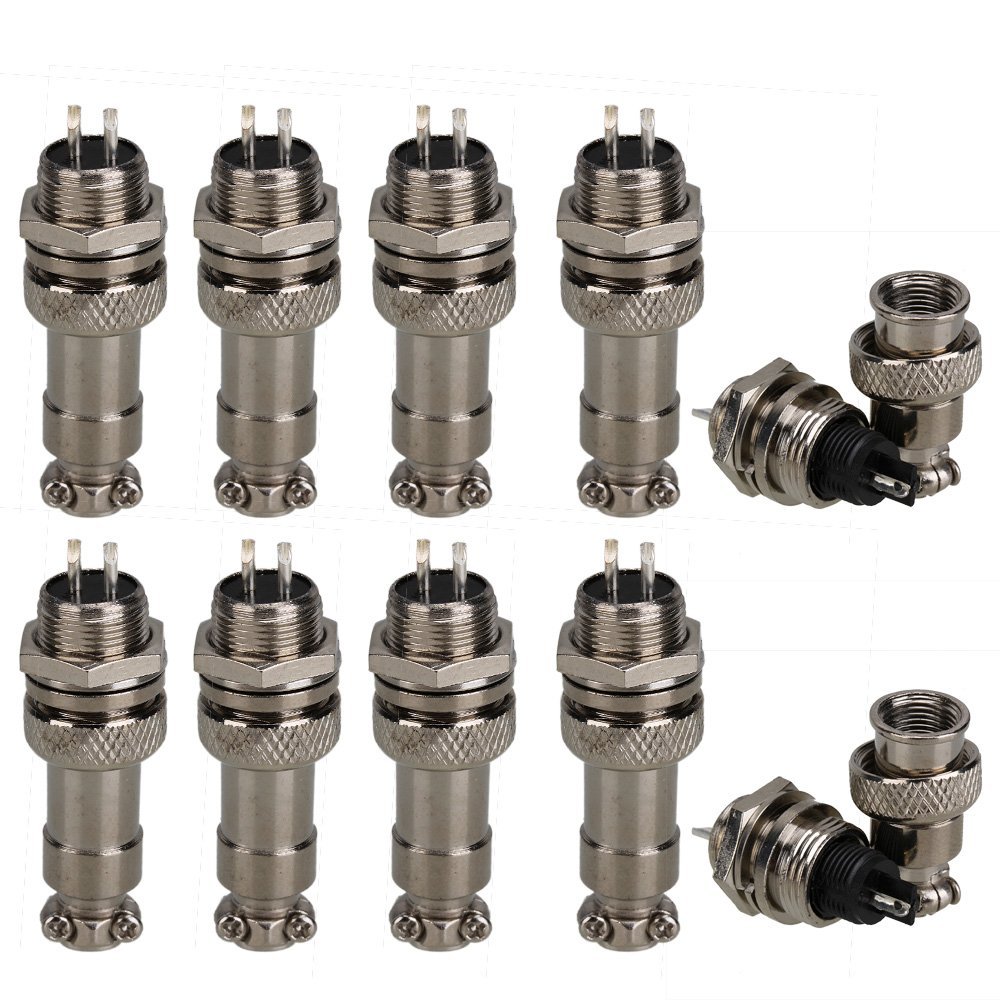

10 x Male 2pins Aviation Connector Plug GX12 12mm Panel Water Resistance 300V 5A

Description

• GX12 12MM 2 Pin Metal Connector Aviation Plug
• Plug Diameter:12mm/0.47"
• Insulation resistance: under normal conditions of not less than 500M, after the test of not less than 20M constant warmed

Specification:
Widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries.
Model no: GX12-2
Rated Current / Voltage:5A / 300V AC
Withstand Voltage:AC 1500V
Insulation Resistence:more than 2000 mOhm
Contact resistance: less than 5 Ohm
Insulation resistance: under normal conditions of not less than 500M Ohm, after the test of not less than 20M Ohm constant warmed.
Temperature: rated load, exposure to temperature rise should not exceed the ambient temperature + 50 C.
Life: 500 plug should not appear harmful plug seats machinery and performance.
Plug diameter:12mm/0.47"
Pin number:2-pin
Total Length:45mm/ 1.8"
QTY:10PCS
Color:Silver Tone
Material:Housing: zinc, nickel
Knurled nut: brass, nickel-plated
Insulator: Bakelite inner core
Plug and socket connection: thread tighten
Installation diameter: 12mm
Installation: Tighten thread
Environmental conditions:
Ambient temperature: -50 ~ + 70 C
Relative humidity: The temperature is + 40 C up to 98% when
Atmospheric pressure: up 4,4kpa
Vibration: vibration frequency of 10 ~ 100Hz, acceleration up to 100m / s2
Shock: frequency of 60 to 80 beats / min, acceleration up to 250m / s2
Centrifugal: Acceleration 250m / s2
Weight:152g

Package Include:
10 x GX12 12MM 2 Pin Metal Connector Aviation Plug
