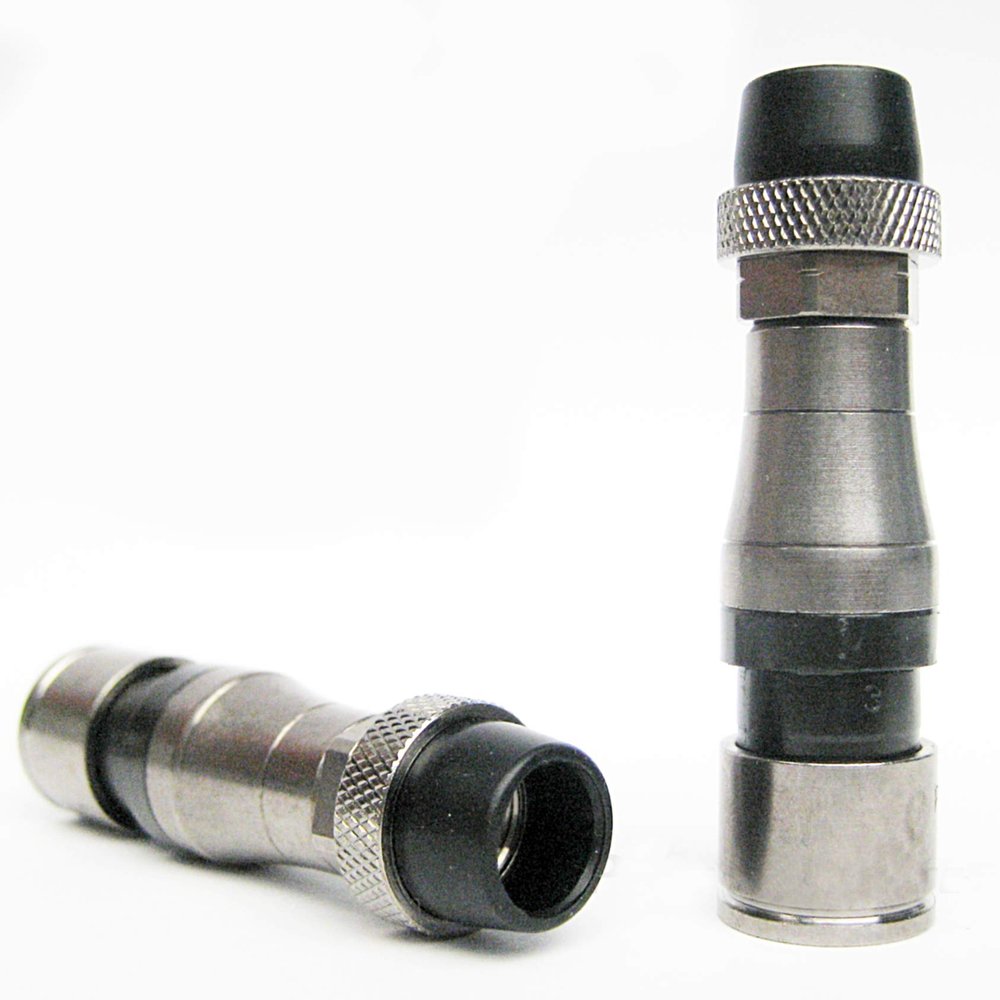

100 Pieces PPC RG11 Weather Boot SignalTight Aqua Tight Universal Compression Connector NiTin-Plated Brass Construction Coaxial Fitting EX11N716WSPLUS

Description

• Maintains ground continuity even when very loose. Reduces QAM errors/packet loss. Prevents service issues from loose connections
• Protection against loose connectors and moisture
• EX11N716WSPLUS - 60% Through Quad-Shield
• Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
• Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL

BELDEN PPC EX11N716WSPLUS Universal Compression Connector for RG11 Cable. Features Maintains ground continuity even when very loose Reduces QAM errors/packet loss Prevents service issues from loose connections Integrated port seal ensures proper moisture tight seal on every connection Gas-tight sealed connection between nut and post NiTin-Plated Brass Construction Movable push-up pin provides confirmation the connector is fully installed Large tapered compression area creates a redundant moisture-tight interface, keeping moisture out General Specification Bandwidth: 0 MHz to 3 GHz Impedance (nominal): 75 Ohms Cable Retention (3x shields): 75 lbs (34.02kg) minimum Return Loss: Minimum-35 dB to 1 GHz
Minimum -20dB to 3 GHz Insertion Loss: Less than .10 dB to 1 GHz
Less than .25 dB to 2.2 GHz Operating Voltage: 90 V (at 60 Hz continuous AC Operating Temperature: -40F to +140F Cable Range: RG11 60% through Quad-Shield Construction Material: NiTin-Plated Brass Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
