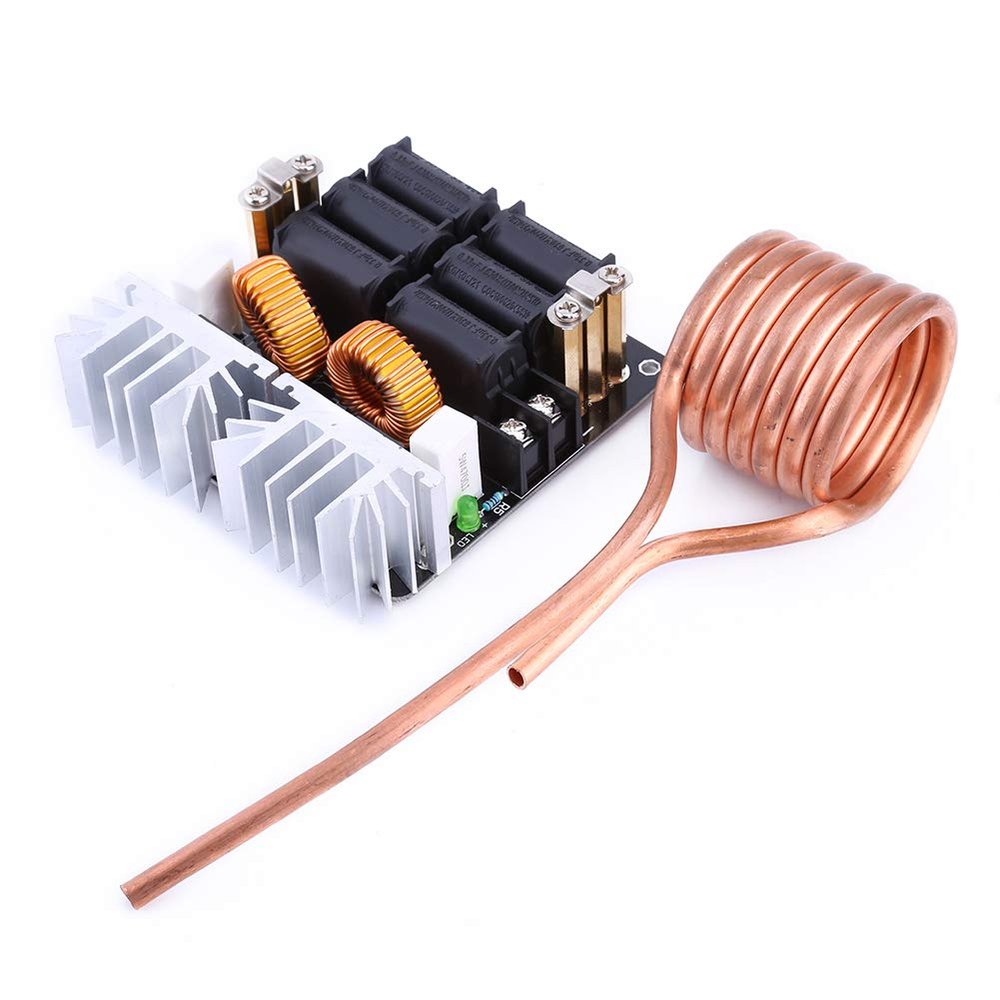

1000W ZVS Low Voltage Induction Heating Board Module Flyback Driver Heater DIY, Low Voltage Induction Heating Board,Low Voltage Induction Heating Board Module

Description

Specifications: Inside diameter of the coil: 40mm
Height of the coil: 50mm
24V input with no load current of 3A
48V input with no load current of 6A
The higher the voltage, the greater the heating current when the same thing, the effect is better,
But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.
It suits 12-36V power supply (not included)
The coil accept 40mm crucible.

Note:
1, The kit contains a full set of driving circuit elements and brass
2, Buyers need to bring their own power and cooling unit.
3, The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
4, The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V and then access the induction heating circuit.
Cooling capacity is very powerful.
2, Using the M4 pillars, fever smaller, more efficient. Package Included:1 x ZVS Low Voltage Induction Heating Board
1 x Brass
