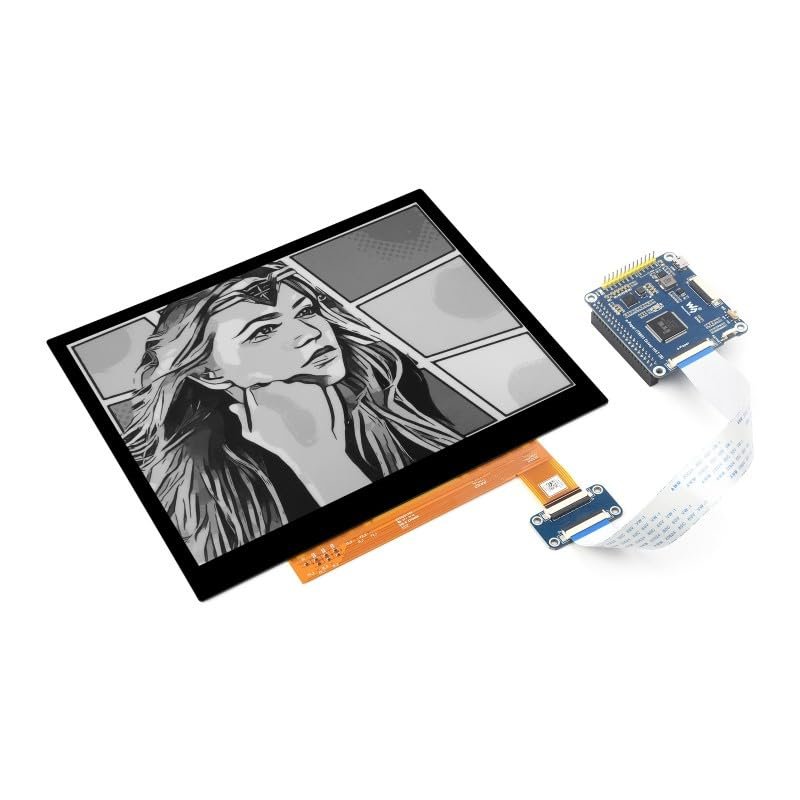

10.3inch E-Paper E-Ink Display (G) with E-Paper Driver HAT Compatible with Raspberry Pi, 18721404 Pixels, Black/White, Optical Bonding Toughened Glass Panel, 2-16 Grey Scales

Description

• Optional for e-Paper IT8951 Driver HAT (B), standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Adapting USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
• Adopts Anti-Glare Technology To Reduce Ambient Light Interference, Reflective Glare And Fingerprint Residue At The Same Time, Making The Image Clearer And The Display Effect More Eye-Care
• Compared With Traditional Screen Technology, The Optical Bonding Technology Can Make The Screen Thinner, Equipped With Toughened Glass For Providing Better Screen Protection.
• No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
• Application Examples: Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags

Introduction
10.3inch EPD (Electronic Paper Display) HAT for Raspberry Pi, 1872 x 1404 resolution, 16 gray scale, USB/SPI/I80/I2C interface
It has the advantages of low power consumption, wide viewing angle, and clear display under direct sunlight, and is often used in display applications such as shelf labels and industrial instruments.
Note: As the screen of the 10.3-inch e-Paper is large, the glass panel and FPC are fragile. Hence, please be careful when using it for development. It is recommended to reinforce the FPC with scotch tape when developing. Please connect all the cables before powering the device, the device cannot support a hot plug.

Features
No backlight, keeps displaying the latest content for a long time even when power is down.
Low power consumption, basically power is only required for refreshing.
Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+.
USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with online development resources and manual (examples for Raspberry Pi/STM32).

Specifications
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 216.70 174.40 0.78mm
Display size: 209.66 157.25mm
Dot pitch: 0.112 0.112mm
Resolution: 1872 1404
Display color: black, white
Grayscale: 2-16 (1-4 bit)
Full refresh time: 170
Operation Temperature: 0 ~ 50
Storage Temperature: -25 ~ 70

PACKAGE CONTENT
1. 10.3inch e-Paper (G) x1
2. e-Paper IT8951 Driver HAT (B) + Adapter board + FFC cable x1
3. USB type A plug to micro B plug cable x1
4. PH2.0 20cm 8Pin x1
5. RPi screws pack (2pcs) x1
