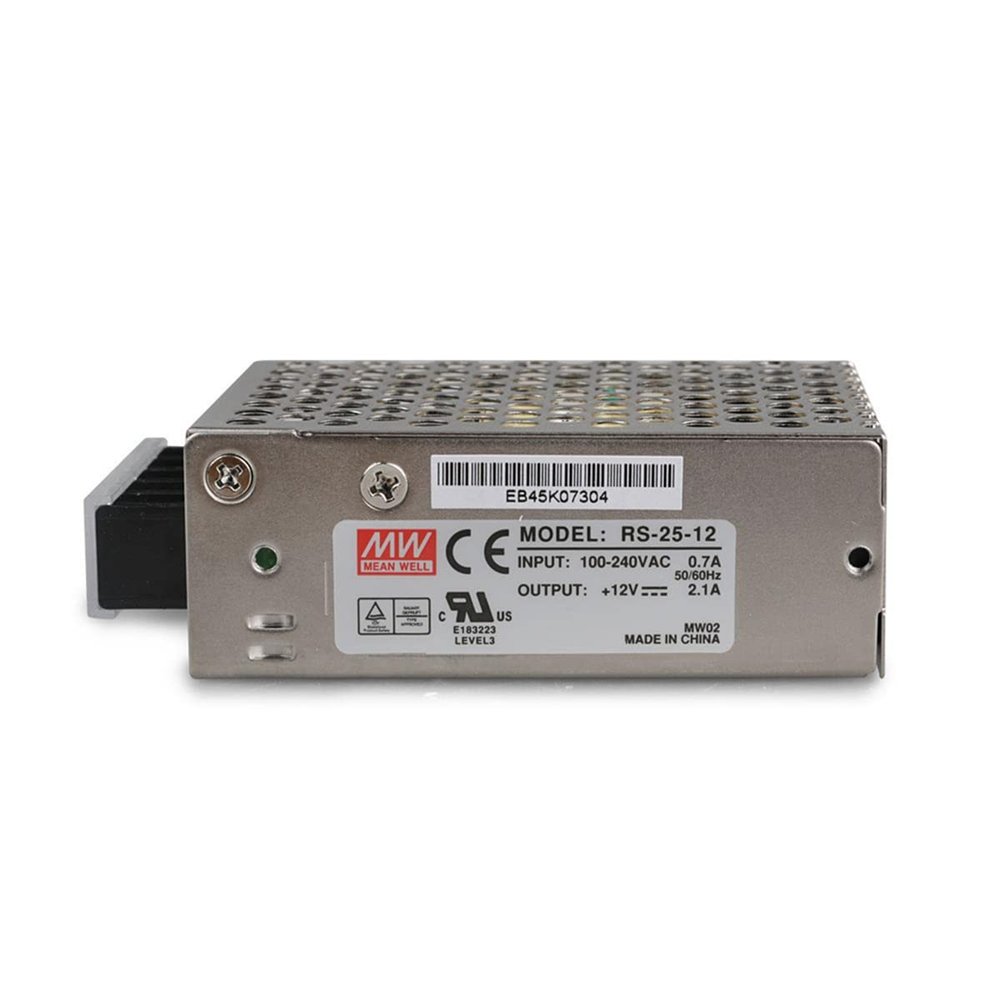

(12PACK) 25W Miniature Size Power : RS-25 Series Single Output Switching Power Supply (RS-25-12)

Description

• RS-25, 25W single output miniature size AC power supply
• meet EMS EN50082-2
• Protectins: Short Circuit/Over Load/Over Voltage; Withstand 300VAC surge input for 5 sec; High operating temp. up to 70C; Withstand 5G vibration test
• High power density; LED indicator for power on; full load burn-in test; Sutitable for critical applications

The RS-25 series, 25W single output miniature size AC power supply, Suitable for industrial control equipment, security/monitoring, LED/lighting/light strip

Specification
Input Voltage 88~264VAC, 125~373VDC
Inrush Current cold start, 30A at 230VAC
DC adjustment range +/- 10% by potential meter for single output; CH1 -5% ~ + 10% by potential meter for multiple output
O.L.P. 110% ~ 180%
O.V.P. 115% ~ 135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1minute
Working temp -25C ~ +70C
Vibration 10~500Hz, 5G 10 min. / 1 cycle, period for 60 min. each along X,Y,Z axes
Safety standard UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, ENV50204, EN61000-6-2
Connection Terminal block for input and output
Dimension L78 x W51 x H28 mm
Packing 60 pcs / 13 kgs / 0.46 CUFT
