Description
- This product is a cost-effective 19 Inch tft led industrial grade touch panel pc with a choice of Intel Core 6th Gen i5 processors, providing high performance computing in a compact embedded system.
- Highly durable design with IP65 front panel protection, High temperature five-wire resistive touch screen, and support for multiple interfaces to meet various industrial applications.
- This panel pc with 1 x SODIMM DDR3L 1333, max. to 8GB RAM, 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD.Windows 10 pro (64 bit) installed, set up is effortless and it's ready to run straight out of the box, if need other system, leave us message after order placed
- Aluminum housing, compact fanless design,Supports full-size Mini PCIe expansion, Supports USB 3.0 and VESA 75
- This industrial panel pc with DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2, support automatically power on after power failure, with mounting embedded buckle kits
Model Number: Partaker A11 PA-190TPC-CE5A
Panel Specification: 19" TFT LED panel, front panel protection IP65, High temperature five-wire resistive touch screen
Chassis:Aluminum
Processor: Intel Core I5 Gen. 6th CPU, Ship any one of them per stock
Memory: SO DIMM 1* DDR3L 1333, Max. 8G RAM
Storage: 1* mSATA SSD+ 1* 2.5 Inch HDD

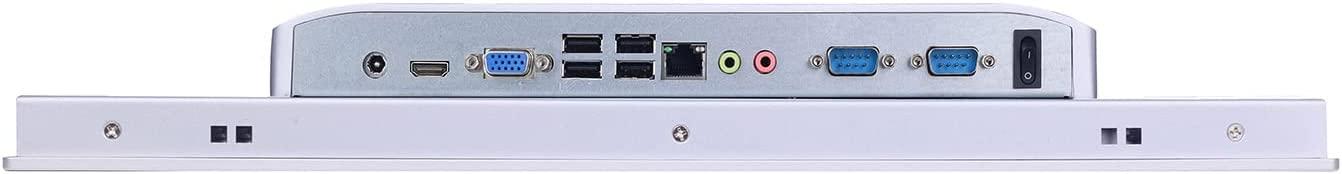

I/O: DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*4/AUDIO*2/COM*2
Cooling System: Fanless
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Dimension: 428 x 351.65 x 54.5 mm
Gross Weight: 3.6KGS
Opening Hole Size:422 x 346mm
Resolution:1280 x 1024
Perspective:80(L), 80(R), 60(T), 60(B)
Brightness:250cd/m2
Contrast:1000
Backlight Life:30,000 hours (min.)
Transmittance:865% at 550 nm wavelength
Durability (Touch Count):200 million times
Installation:Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature:0 ~ 50C with SSD, 0 ~ 40C with HDD
Storage Temperature:-20 ~ 60
Operating Humidity:10% ~ 95% @ 40 without condensation
Power Supply:DC100-240V AC/50-60Hz, 12V
Packing List:Panel PC+ Power supply+ Power Cord+ Touch Pen+ Embedded Buckle Kit+ Warranty Card
System Support:Windows 7/10,Linux Ubuntu etc, System Default Option: Windows 10 pro in English
