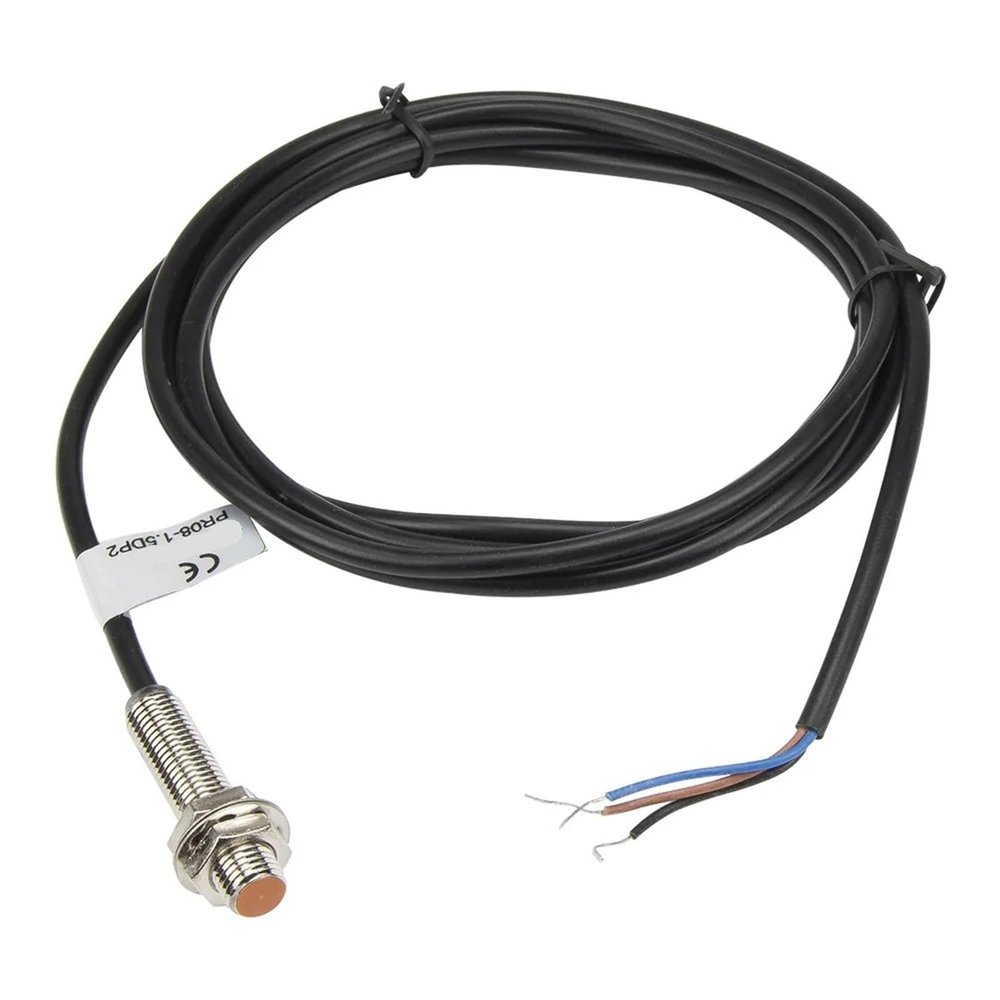

1pc M8 1.5mm Sensing 6-36V NPN PNP NO NC PR08-1.5DN PR08-1.5DN2 PR08-1.5DP PR08-1.5DP2 Full View Proximity Sensor Switch(PR08-1.5DP2 PNP NC)

Description

• Switches
• 1pc M8 1.5mm sensing 6-36V NPN PNP NO NC PR08-1.5DN PR08-1.5DN2 PR08-1.5DP PR08-1.5DP2 full view proximity sensor switch

Switches
PR08-1.5 series full view inductive proximity sensor
Operating form and parameters
Current type
Operating form
Contact form
Model number
Related product

NPN
NO
PR08-1.5DN
Visiting...

NPN
NC
PR08-1.5DN2
Visiting...

PNP
NO
PR08-1.5DP
Visiting...

PNP
NC
PR08-1.5DP2
Visiting...

Two wires
NO
PR08-1.5DO

Two wires
NC
PR08-1.5DC
General
Model number
PR08-1.5 series
External dimensions
RP1.5-DP M8x1x30; Others: M8*1*37
Installation type
Shielded
Detection distance
1.5mm10%
Setting distance
0-1.2 mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (90-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (8x8x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 1.5kHz; Two wires of : 1kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
10% max. of sensing distance at 23C within temperature range of -25C to 60C
15% max. of sensing distance at 23C within temperature range of -30C to 65C
Voltage influence
10% max. of sensing distance in rated voltage range 15%
IP Rating
IP67
Material
Case: Brass-nickel plated; Sensing surface: ABS
==========
Hign-concerned Chemical : None
Material : Copper
Switch Type : Proximity Switch
Model Nu
