Description
Specifications:
-Transport protocol: HDbitT
-Transmission distance: Up to 120m (394ft) via single Cat6 cable at 1080p@60Hz
-Audio: 7.1 Channel, PCM, DTS, AC3 audio
-Full frequency IR signal from 20KHz to 60KHz
-Video resolution: 480p / 720p / 1080i / 1080p@60Hz

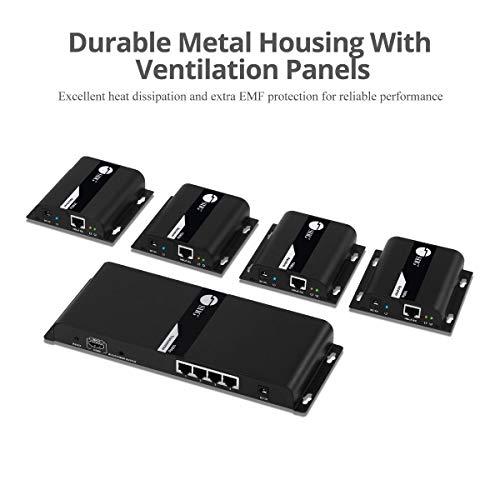

-Product housing: TX Metal and RX Aluminum with wall mount design
-Network cable: UTP/STP CAT6/6a/7
Connection methods:

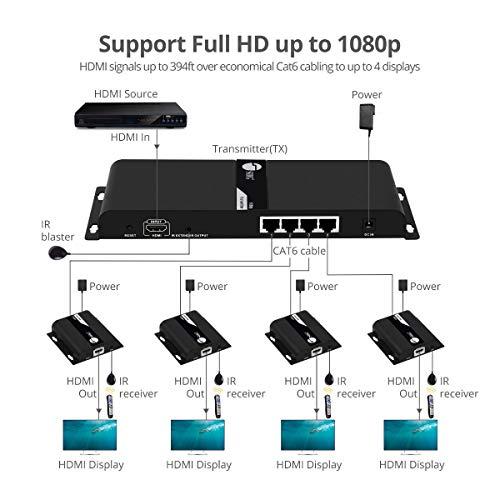

-1x4: Direct connection

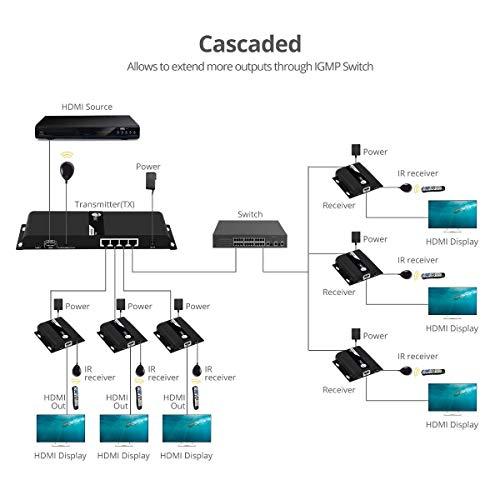

-Cascade: 1-to-Multiple through IGMP Gigabit network routers or switches
System Requirements:
-Cat6/6a/7 cable using T568B wiring standard
-100% copper wire recommended for best performance
-HDMI displays and cables
-Dedicated IGMP Gigabit network routers or switches (for Cascade connection)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
