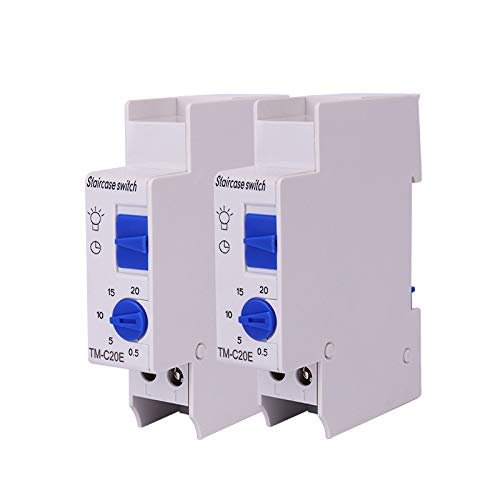

20 Minutes 230VAC DIN Rail Staircase Time Switch for Staircase Lighting Controls

Description

TM-C20E (0.5~20 mins) is a variable delay timer to control stairwell lighting. A momentary action push button will initiate the TH-C18 output, which will then time-out after a pre-set delay has elapsed.
1. Front adjustable knob: 0.5 min. ~20 min.
2. Simple Wiring..
3. Protection type: IP20.
Features:.
1) Type: TM-C20E.
2) Dimensions 85x17.5x60mm.
3) Time range: 0.5, 5, 10, 15, 20min.
4) Contact capacity: 16A, 220V AC.
5) Coil voltage: AC 110V, 220V, 230V, 240V.
6) Electrical life: 100, 000 times.
7) Mechanical life: 10, 000, 000 times.
8) Minimum setting unit: 0.5 minute.
9) Operating temperature: -40C - +50C
