Description
- Silent Motor Algorithm: To control the head and accurate positioning (0.01), supporting 170 to +170 degrees horizontal rotation, 30 to +90 degrees pitching rotation, all round shooting, fast and smooth rotation, capture every detail of the whole space.
- CMOS Sensor: Using 1/2.8 inch low noise CMOS sensor, can provide 1080P 60FPS image and video, 20X optical zoom, multimedia interface / SDI/ video output interface.
- Supporting Devices and 255 Preset Bits: Supports IR remote control, , RS232, RS485, and 4 control methods, VISCA. 255 preset bits, supporting image flipping, using 2D and 3D noise reduction technology, low noise, high to noise ratio, to ensure clear images.
- Encoding and Installation: Support H.264/H.265 encoding, video in low bandwidth conditions more smooth and clear. A variety of installation methods, supporting desktop, lifting, wall mounting, tripod installation.
- Strong Compatiblity: It supports video conferencing software and instant messaging software commonly used in the marke. Suitable for a variety of scenarios, a wide range of applications. It can be used for live broadcasting, online teaching, video conferencing, video calling, distance education, telemedicine, churches, courts, media centers, etc.
Specification:

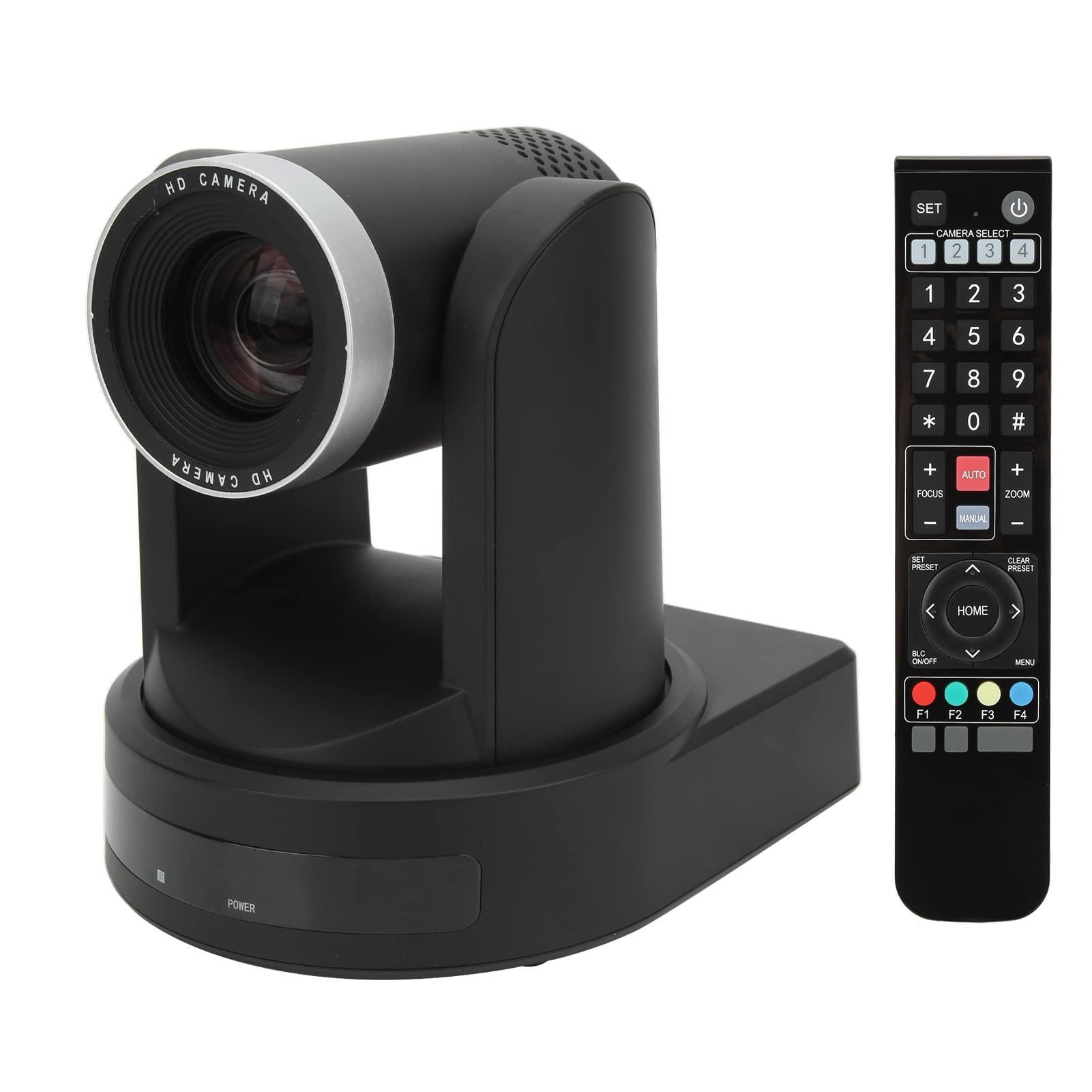

Item Type: PTZ Camera
Weight: Approx. 2400g / 84.66oz
Image Sensor: 1/2.8in high quality HD CMOS sensor
Available Pixels: 2.07 million available pixels
Video Format:
HD Multimedia Interface:1080P 60/50 frames, 1080P 30/25 frames, 1080I 60/50 frames, 720P 60/50 frames
SDI: 1080P 60/50/30/25 frames, 1080I 60/50 frames, 720P 60/50/30/25 frames
IP: 1080P 60/50/30/25 frames, 1080I 60/50 frames, 720P 60/50/30/25 frames
Optical Zoom: 20X optical zoom
Viewing Angle: 58.7(W) ~ 3.2(T)
SNR: 50dB
Minimum Illumination: 0.1 lx
Gain: Automatic/manual
White Balance: Automatic/indoor/outdoor/one button/manual
AE Control: automatic/manual
Image Flip: Yes
Backlight Compensation: Yes
Noise Suppression Function (3D NR) : Yes

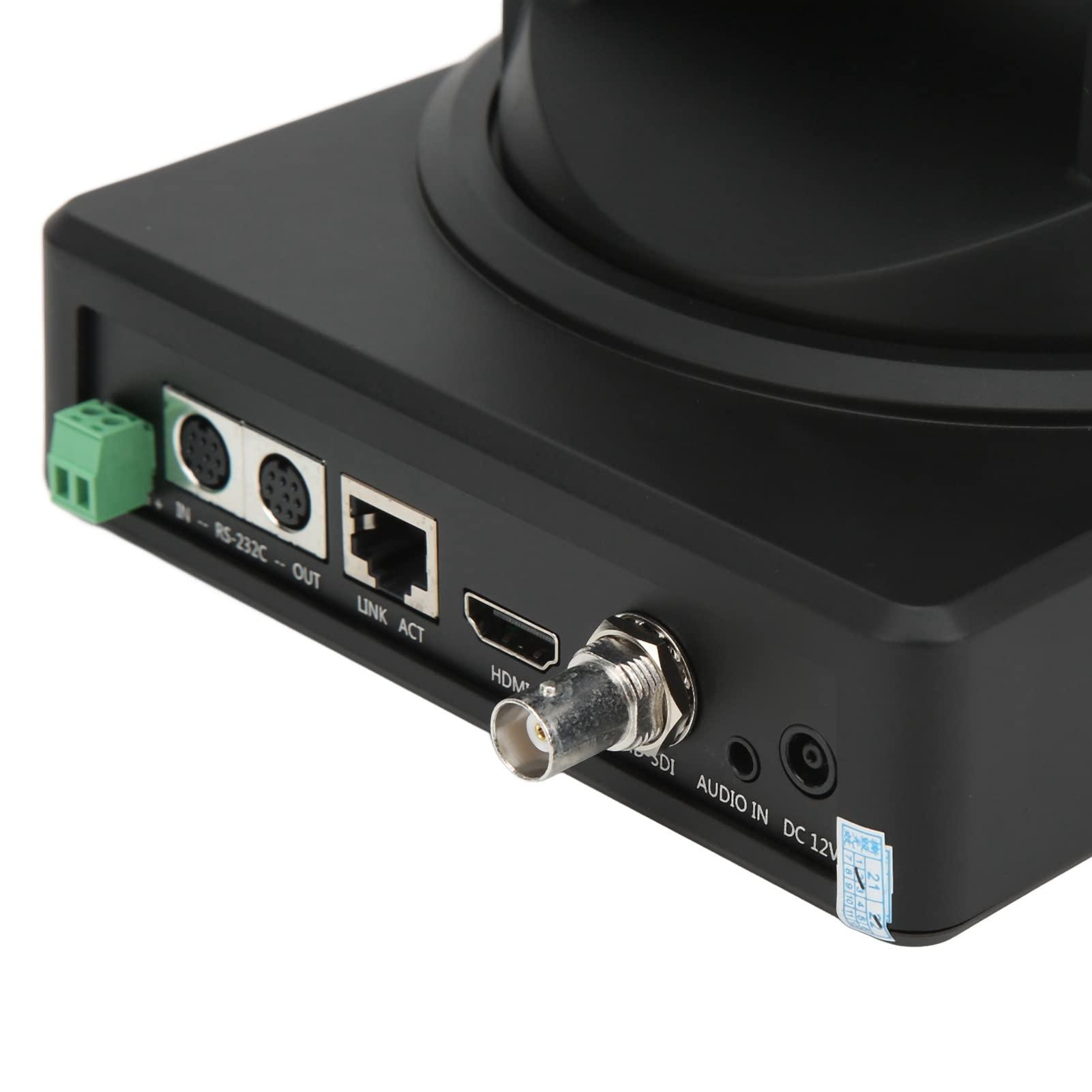

Video Output Interface: HD multimedia interface/HD SDI(3G)/wirless LAN(5G WIFI module, POE choosable )output, SDI maximum transmission Approx.100m/3937.01in
Preset Bits: 255
Intelligent Cruise Mode: Supported
Image Capture: Supported
Control Protocol: for VISCA automatic pairing
Installation Method: Formal installation/lifting/tripod
PTZ Control: IR remote control /IP/RS232/RS485 4 control modes

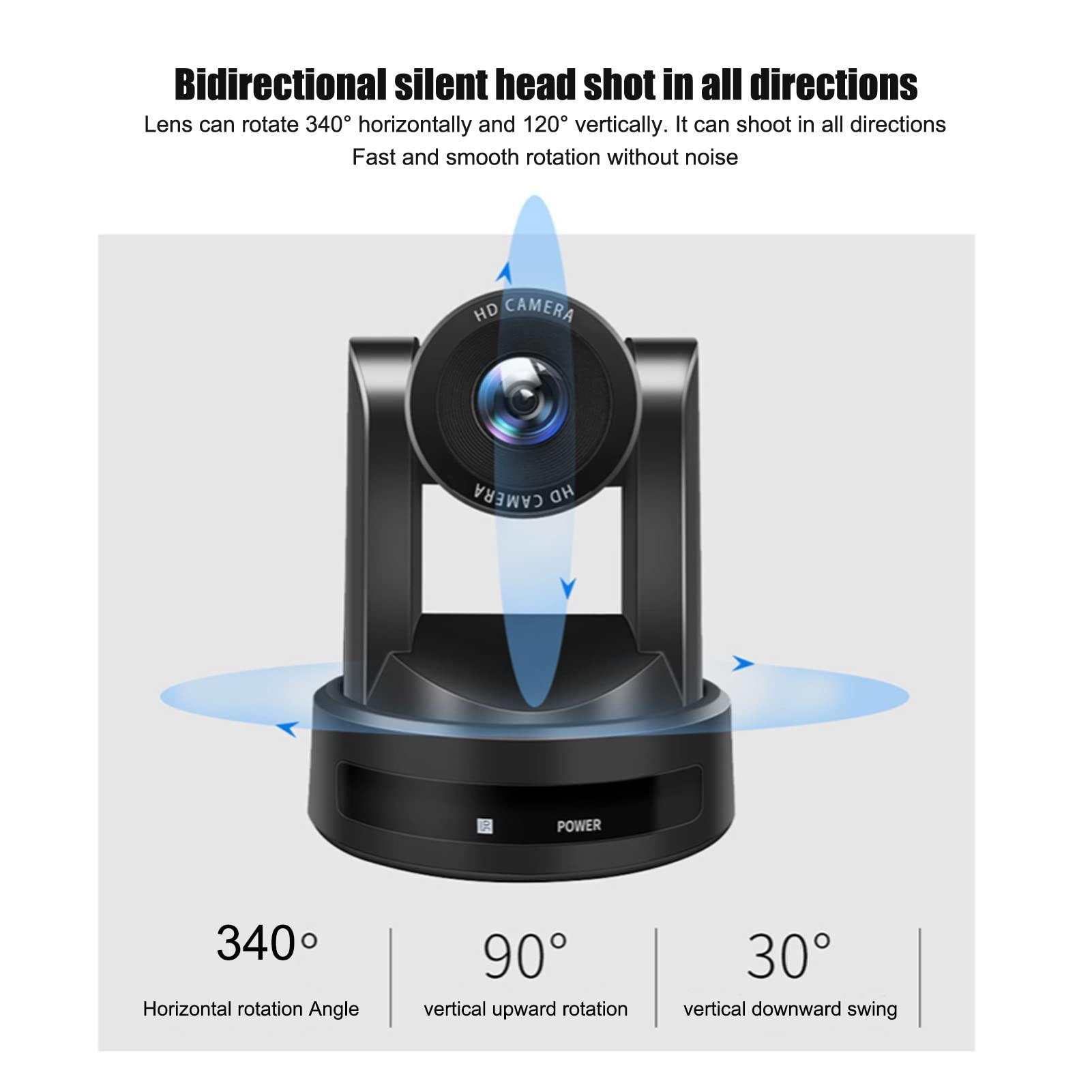

Horizontal Rotation Angle: horizontal rotation: 170 degrees; Pitch rotation: -30 degrees ~ +90 degrees
Head Control Speed: Level: 0.1-100/ s; Pitch: 0.1-60/ SEC
Multiple Network Protocols: Supports GB/T28181, RTSP, and RTMP. Support RTMP push mode, easy to connect to streaming media servers (Wowza, FMS); Support RTP multicast mode, support network command for VISCA control protocol
Coding Technology: H.264/H.265
Audio Interface: Approx.3.5mm Line In

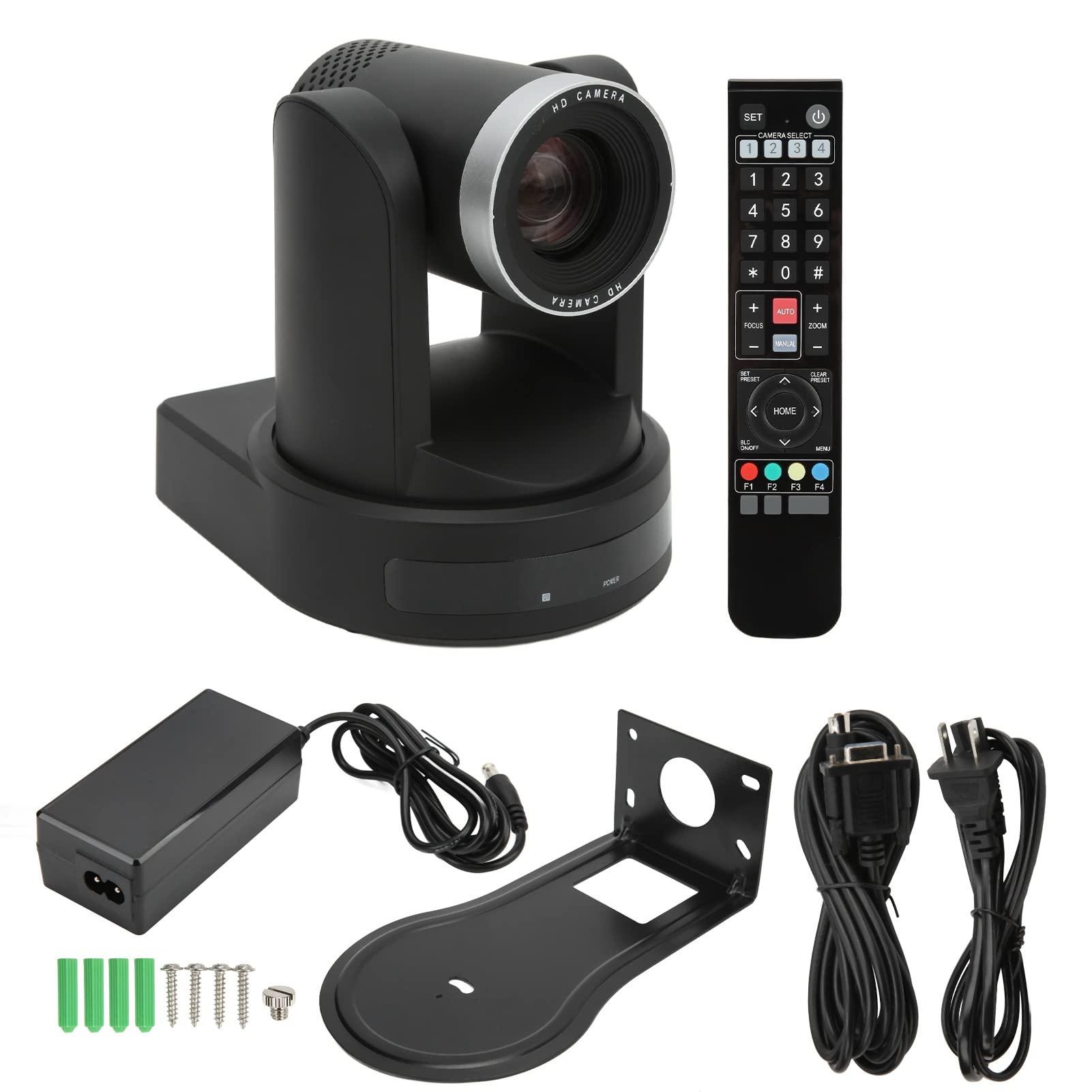

Package List:
1 x PTZ Camera
1 x Adapter
1 x Power Line
1 x Remote Control

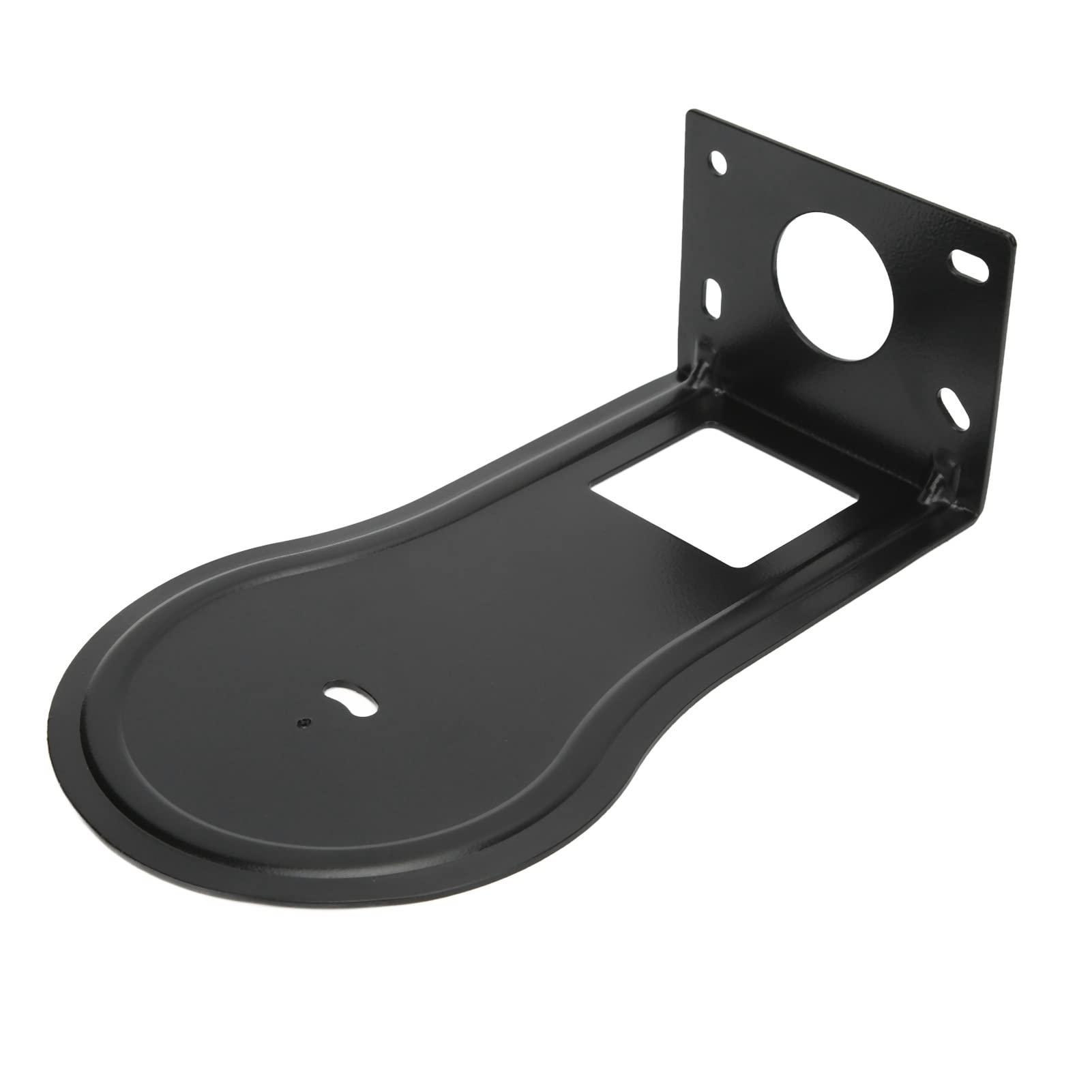

1 x Mounting Bracket
4 x Install Screw
4 x Plastic Fittings
1 x RS232 Line
1 x 1/4in Screw
1 x Specification
