Description

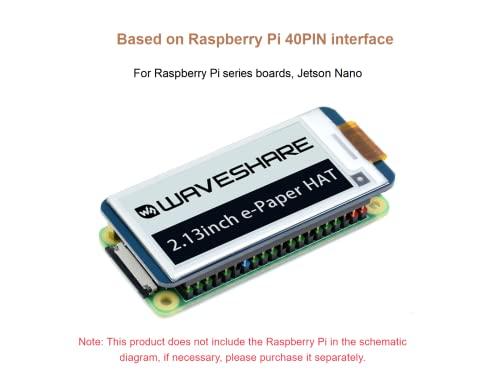

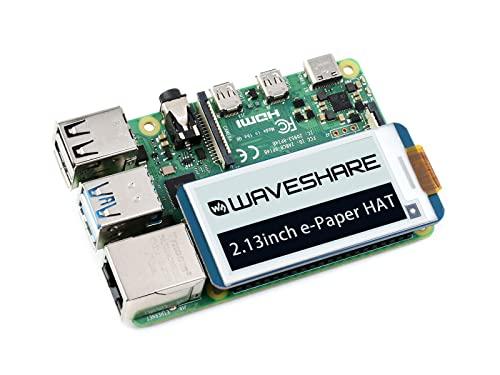

- This is the latest version 2.13inch e paper display HaT,Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B,Jetson Nano
- Ultra low power consumption, basically power is only required for refreshing
- Preserved solder pads for SPI interface, compatible with other controller boards like Arduino/Nucleo, etc.

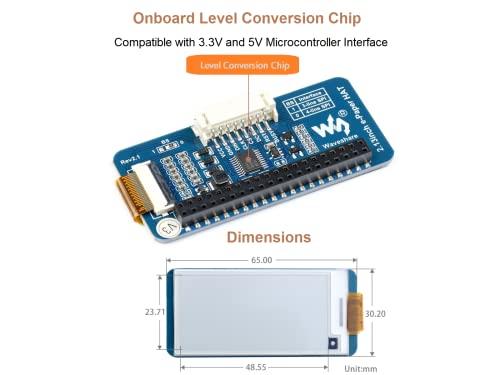

- Onboard voltage translator, compatible with 3.3V/5V MCUs,Comes with development resources and manual (examples compatible with Raspberry Pi/Arduino/STM32)
- No backlight, keeps displaying last content for a long time even when power down

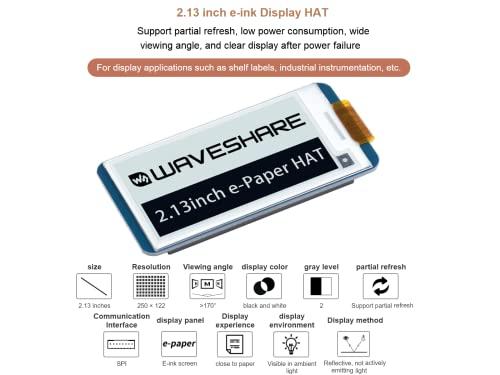

250x122, 2.13inch E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano,SPI interface
Overview
This is an E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface,
supports partial refresh.

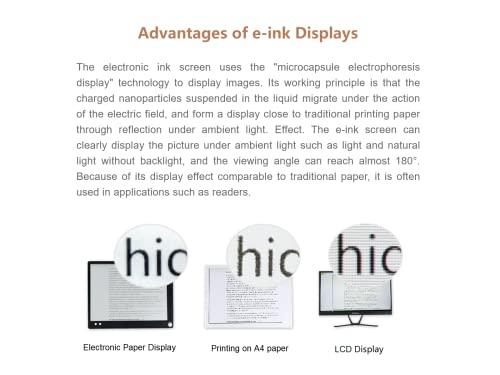

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as
shelf label, industrial instrument, and so on.

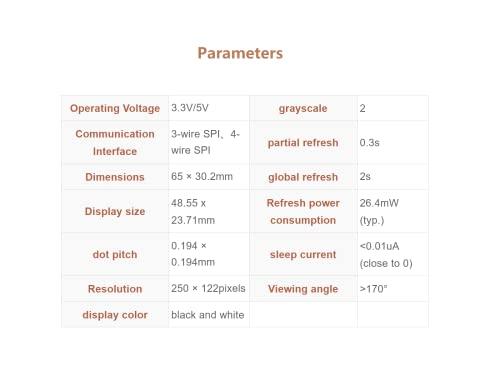

Specifications
Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm 30.2mm
Display size: 23.71mm 48.55mm
Dot pitch: 0.194 0.194
Resolution: 250 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170

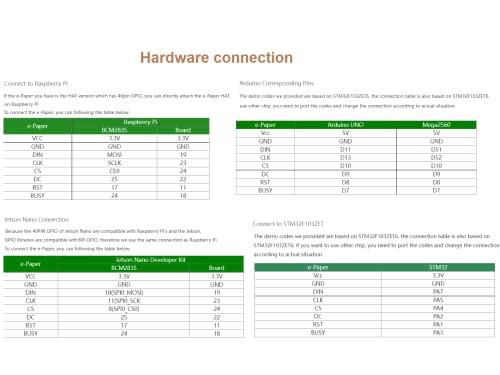

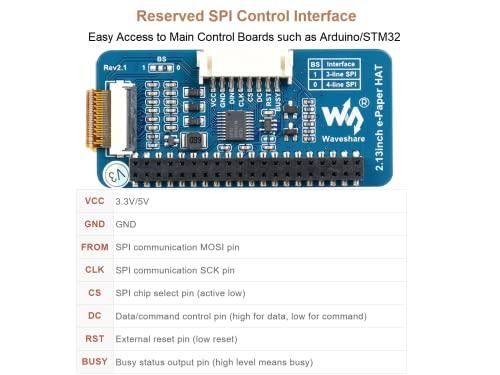

Interface
VCC---3.3V
GND---GND
DIN---SPI MOSI
CLK---SPI SCK
CS---SPI chip select (Low active)
DC---Data/Command control pin (High for data, and low for command)
RST---External reset pin (Low for reset)
BUSY---Busy state output pin (Low for busy)

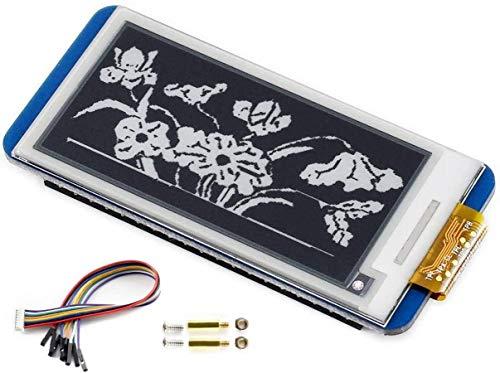

Package Content
2.13inch e-Paper HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1
Note: Online development resources are provided ,please contact us to get if needed!
