Description
- INPUT RANGE: 100Vac - 285Vac.
- INPUT FREQUENCY: 50Hz/60Hz
- OUTPUT: 200V-220V-230V-240V (Selectable)
- OUTPUT FREQUENCY: 50Hz/60Hz (Selectable)
- MAXIMUM OUTPUT CURRENT: 6.3 Amps. Your application power requirement should not exceed maximum output current available.
- Use European appliances in the USA and provide the 220V/50Hz electrcity it requires!

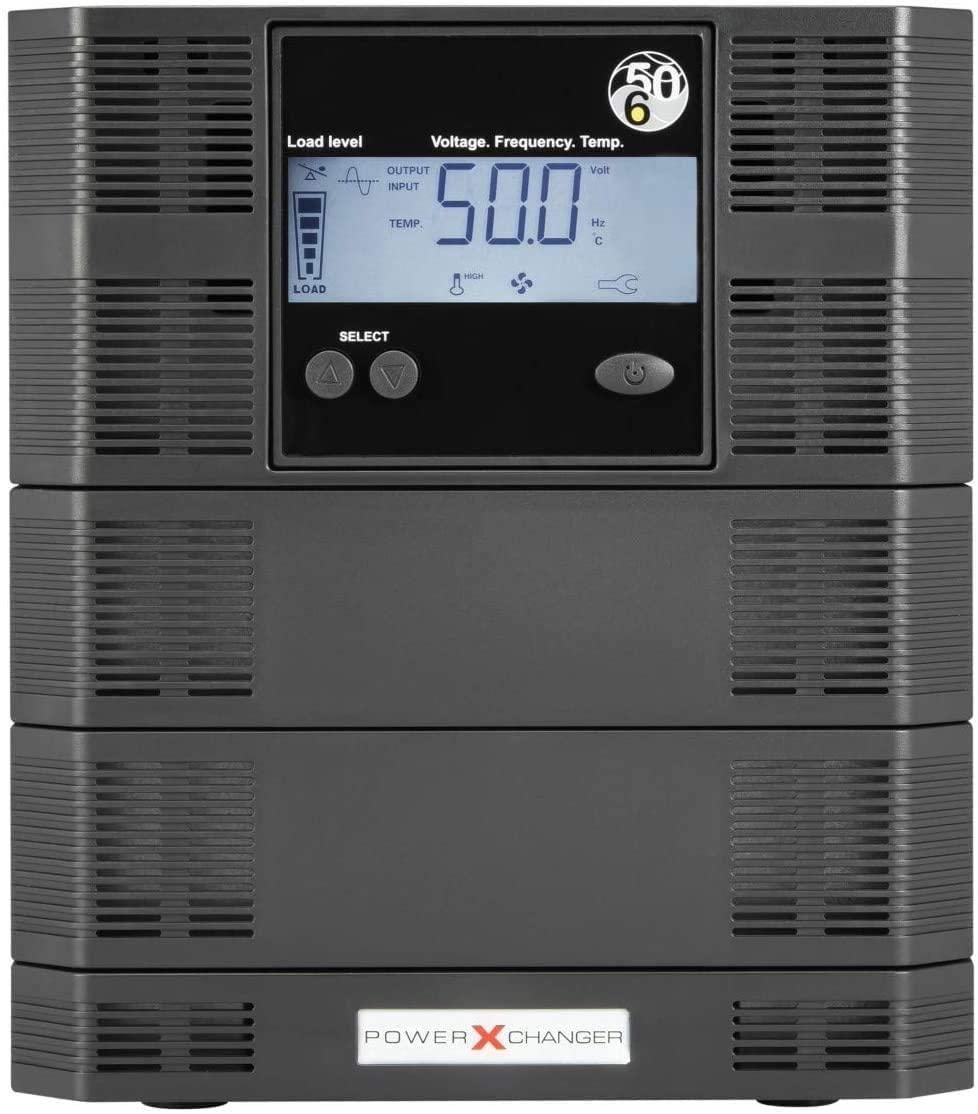

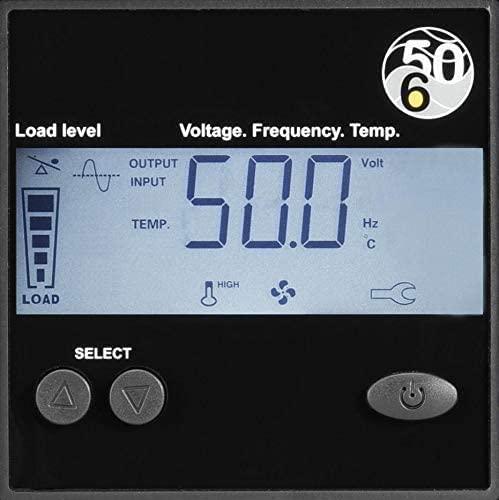

- High Efficiency, Automatic Restart After Overload Shutdown. AC Input Generator Compatible. Multifunction LCD Screen.
- Outstanding Performance & Reliability. Common Neutral, Double Conversion Topology (0/P Neutral to 1/P Neutral is O volts normally). Wide Range Input Window and Input Power Factor Correction

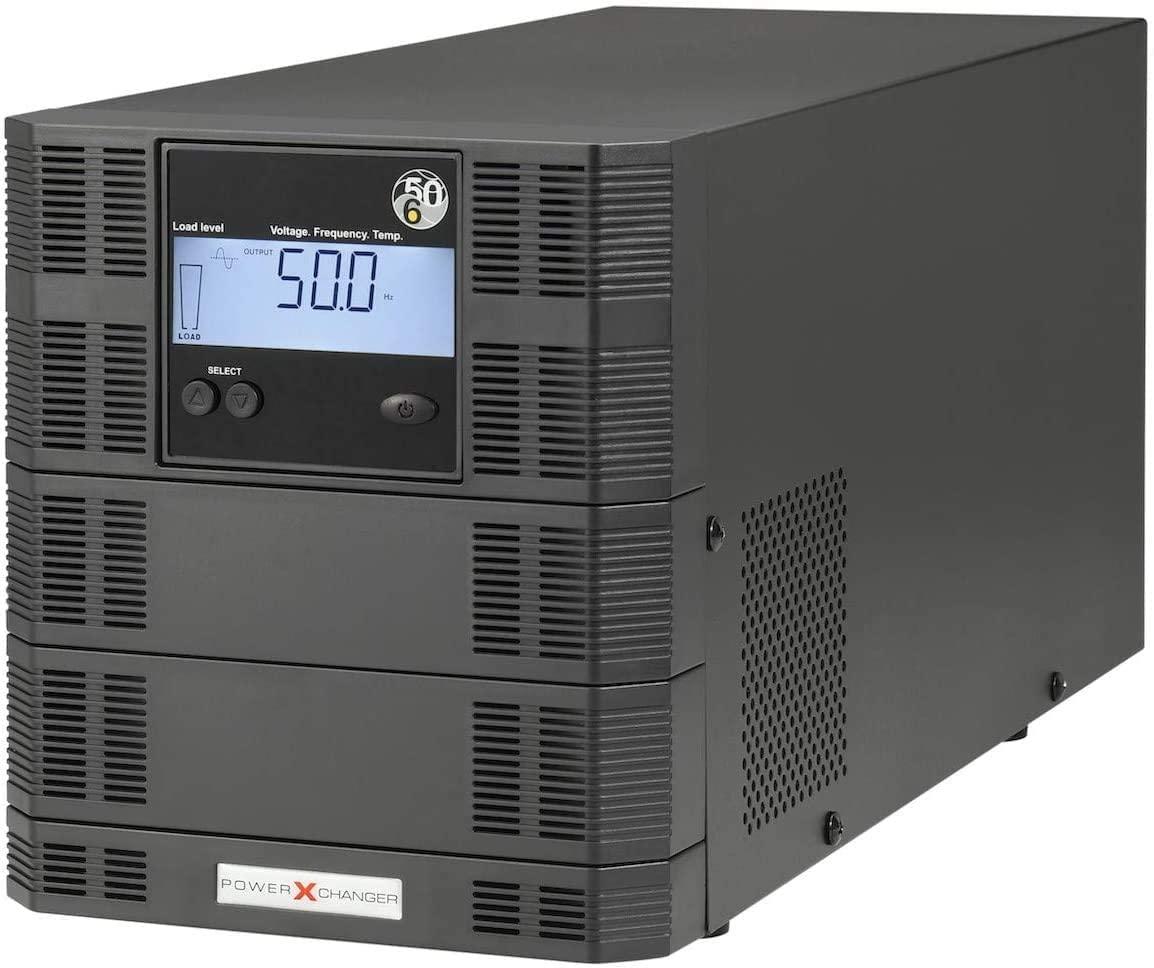

This series is a double conversion Power Converter which produces stable pure sine wave voltage and frequency output (O/P). With this Converter, you can protect your equipment from most power issues, including power sags, power surges, brownouts, and line noise. With the common neutral topology, the converter provides internal connection from AC I/P neutral to AC O/P neutral; thus, it does not need to use an isolation transformer to provide 0 volt from AC I/P neutral to O/P neutral. This feature will reduce the interference to loads of communication or video systems.
