36-60VDC 802.3af/at POE Input, 48V .4A PoE and 12VDC 1A, 15W Total Output, POE Splitter/Voltage Converter, -25 to +50C, 5.5/2.5/2.1mm DC Barrel, 6" Cable, 10/100, RJ45 Output Socket

Description

• 802.3af/at PoE Input
• 12VDC 1A + 48V .4A PoE out
• 10/100MB
• Dual out
• Compact Size

Features
Very Compact Size
Dual Output: 48V Passive PoE and 48V, 24V or 12VDC Output
Converts an Active PoE Input to a DC output
Output Power Up To 15W
Short Circuit, Over Current Protection
I.T.E. Power Supply, UL Listed

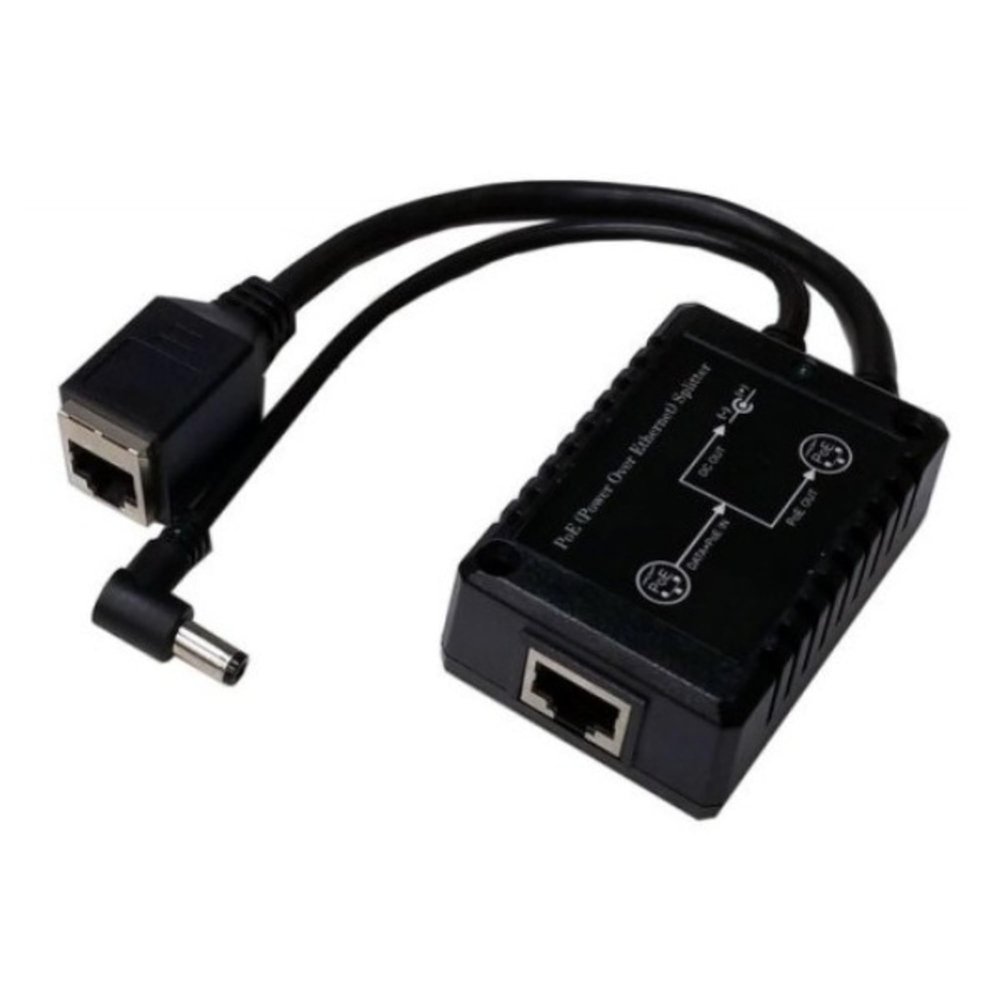

The POE-MSPLT-48xxP-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 48V or 24V or 12VDC outputs concurrently so two separate devices can be powered. The DC output is provided on a standard 5.5mm/2.1- 2.5mm barrel connector and the Data/PoE output is provided on standard RJ45 network connector, each on a 6 cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
