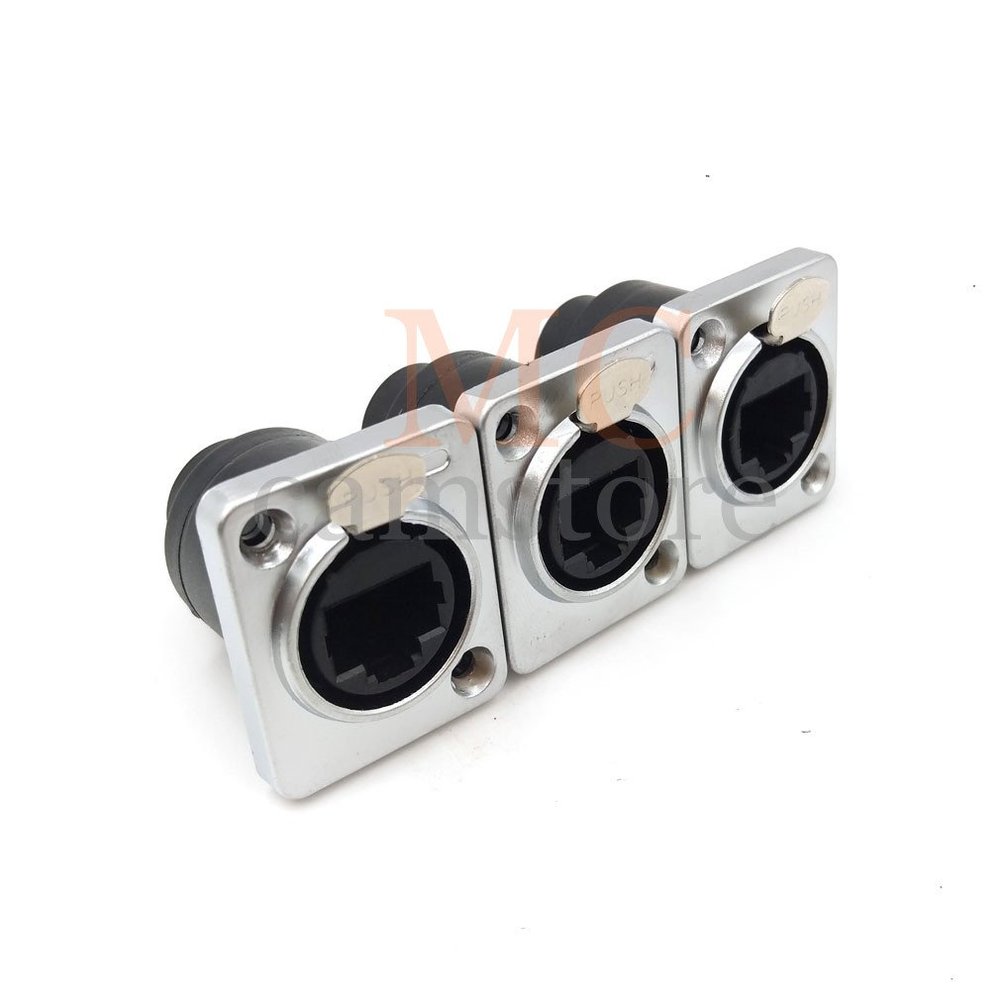

3pcs x RJ45 Waterproof Connector sockets, Ethernet Panel Mount RJ45 Wall Plug Connector

Description

• Compatible with industrial Ethernet request any standard RJ45 connector
• Insertion/extraction pressure: 20N
• D-shape metal flange with the latch lock. Mounting screws included
• According to TIA / EIA 568B and ISO / IEC 11801 standards with Cat 5e
• With plug-lock to prevent drop off during operation

Contact resistance: 0.5G
Each contact rated current: 1.5A
Rated voltage: 50V
Transmission performance: CAT 5e
Follow the standards: TIA / EIA 586B, IEC11801
Insertion/extraction pressure: 20N
Service life (number of connections): >1000
Panel thickness: 4mm (max)
Locking device: key card lock
Base shape: D type
Contact Plating: 0.2s Au over Ni plating
Contact: Bronze (CuSn8)
Insulator: PBTP15%GR
Shell plating: Nickel
Flammability: UL94-V0
Temperature range: -30 ~ +80
