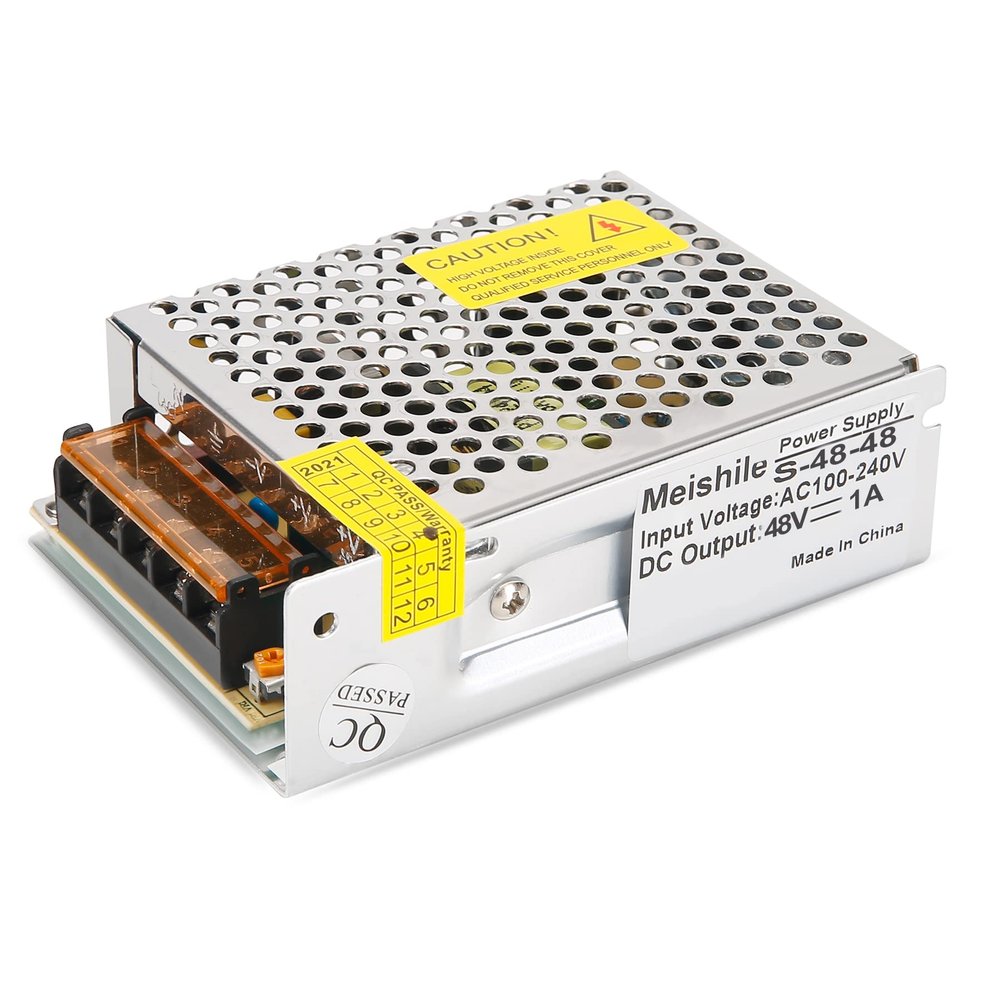

48V 1A 48W LED Driver Switching Power Supply 110/220VAC-DC48V Transformer Monitoring Power Supply Industrial Power Universal Type

Description

• AC Input Voltage110V/220V (100-240V) / DC output voltage:48V
• Short Circuit Protection / Over Load Protection / Over Voltage Protection
• International safety certification: FCC/CE 100% Full load Burn-in Test
• Adopt lead-free Process, Accord With Environmental Protection RoHS Requirement
• 1 Year Warranty ; High efficiency, long life, high reliability

Main Parameter DC Output Range: 48V,01A Rated Power: 48W Input voltage: 110V/220V (100-240V) Range Of Difference:1% Efficiency: >80% Output adjustable voltage range: 3% Frequency: 50-60Hz Leakage current: <1mA/230V Temperature coefficient: 0.03%/CC050CC Start, rise, hold time 200ms, 50ms, 20ms Seismic resistance: 10500Hz,2G 10min, /1 cycle, time 60 points, each axis Protection: overload, overvoltage, overcurrent, short circuit protection Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH Product Size: 110*78*36mm Product Weight: 0.25kg Note: It s suggested that total power consumption of the loads to be connected be not more than 80% of the rate power of product
