Description

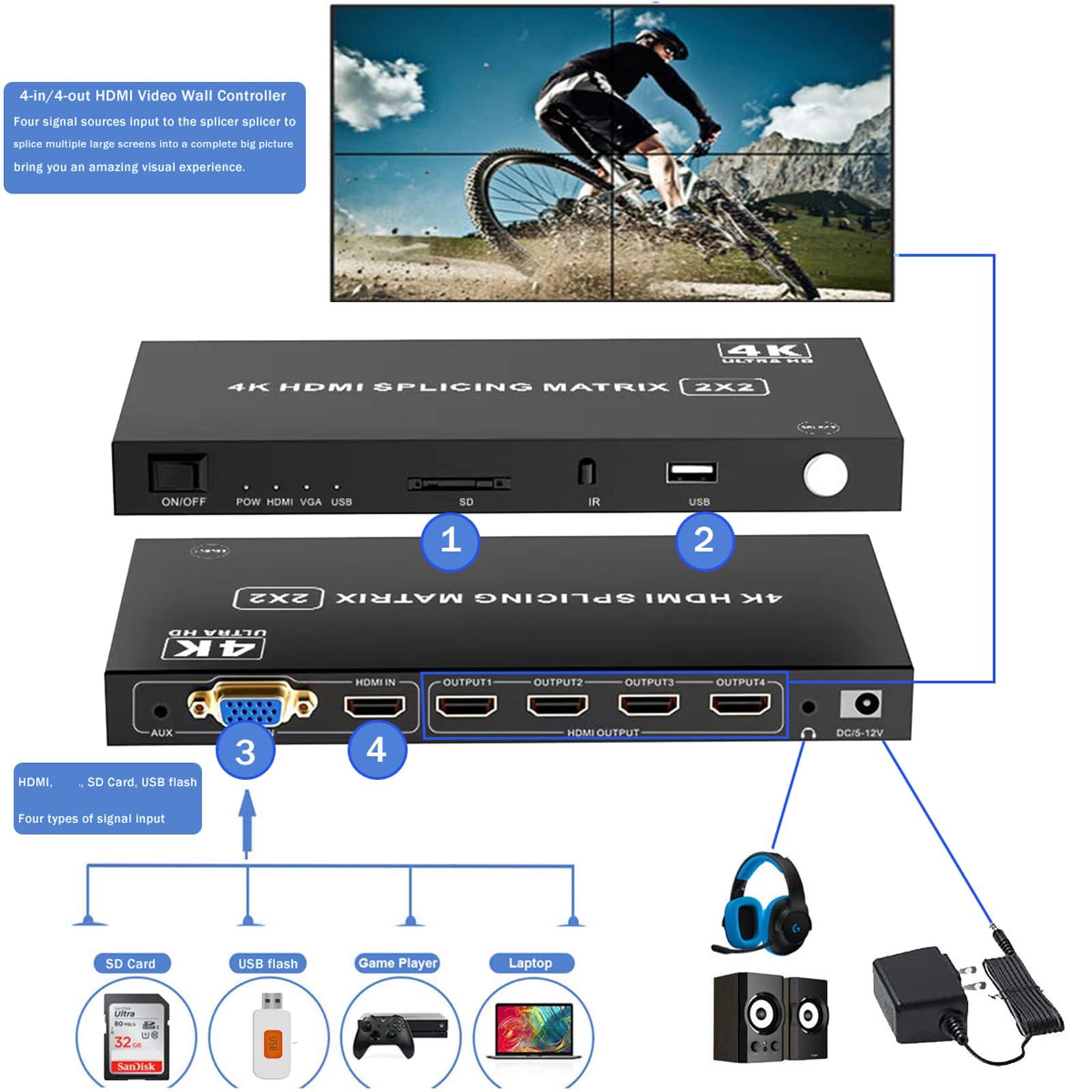

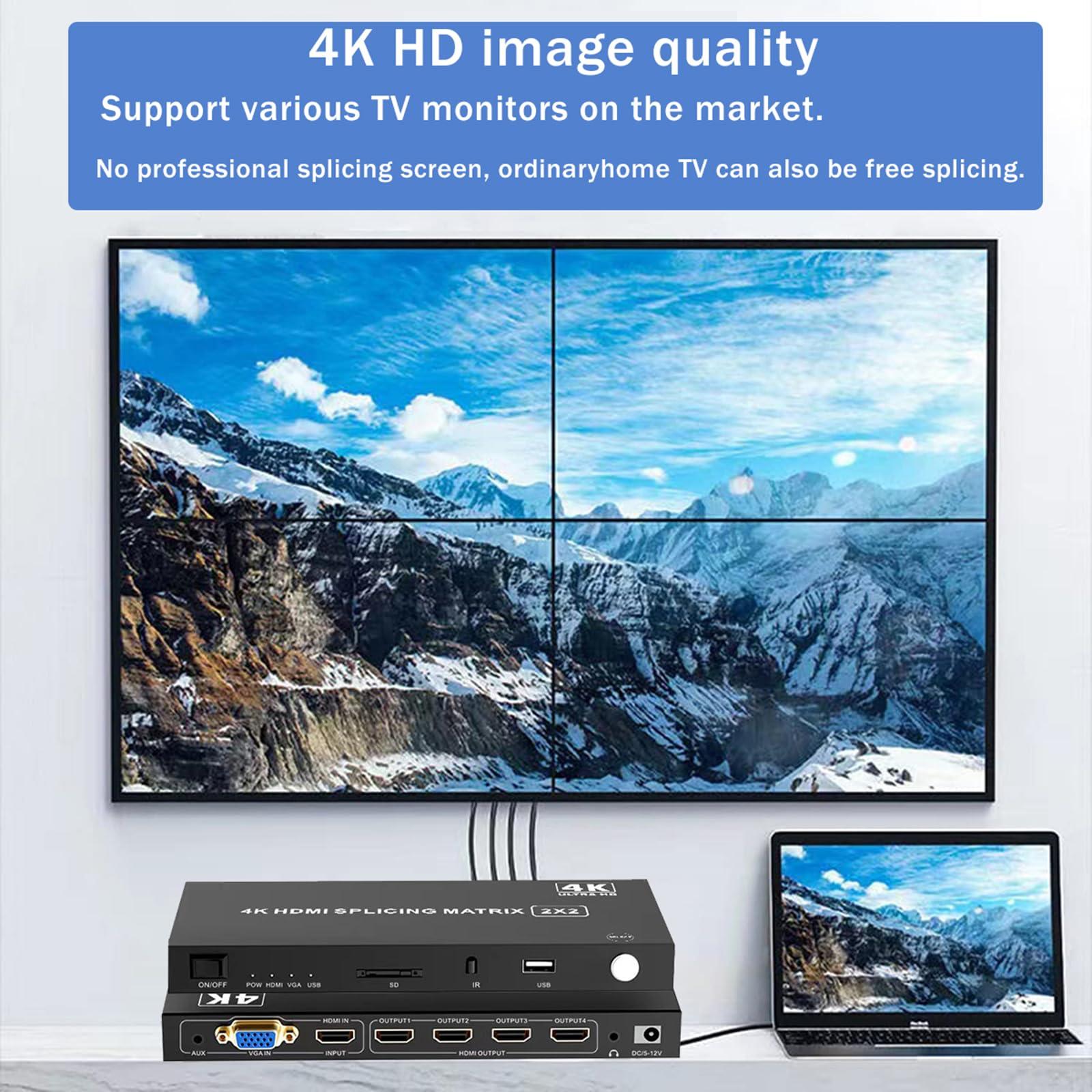

- HDMI Video Wall Controller: HDMI TV wall processor can distribute HDMI, VGA , USB, SD input signal device (DVD, TV Box, Computer, USB, SDCard etc.) to 4 HDMI outputs display screens simultaneously, which via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience.

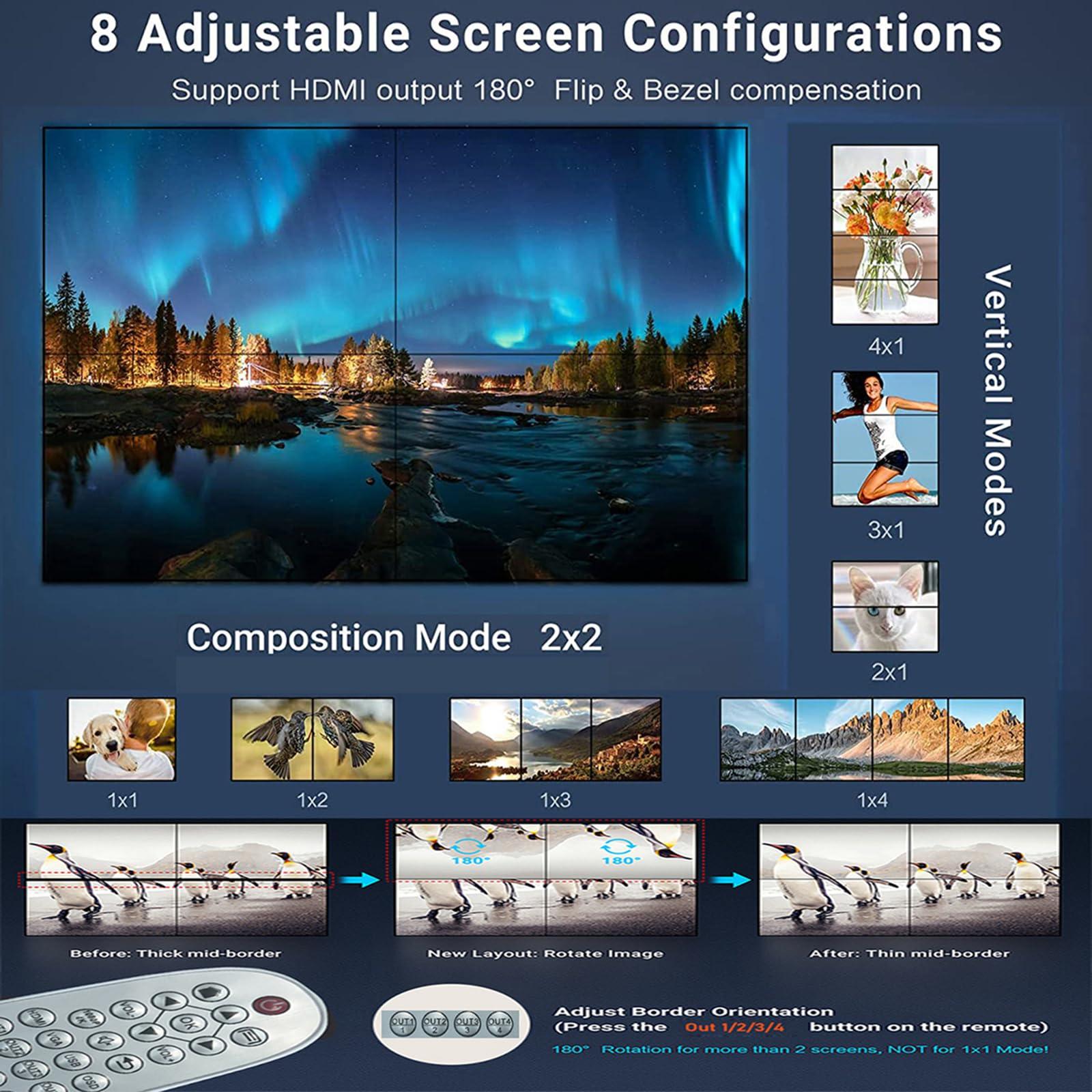

- 12 Adjustable Display Modes: This 2x2 HDMI video image processor can connect up to 4 LCD TVs or other displays, which can support multiple display modes, such as 1x1,1x2,1x3,1x4,1x5,2x1,2x2,2x3, 3x1, 3x2,4x1, 5x1. All this modes provides variety splicing options, can easily switch the modes through the IR remote control without getting up or press the Switch key at the TV wall controller.

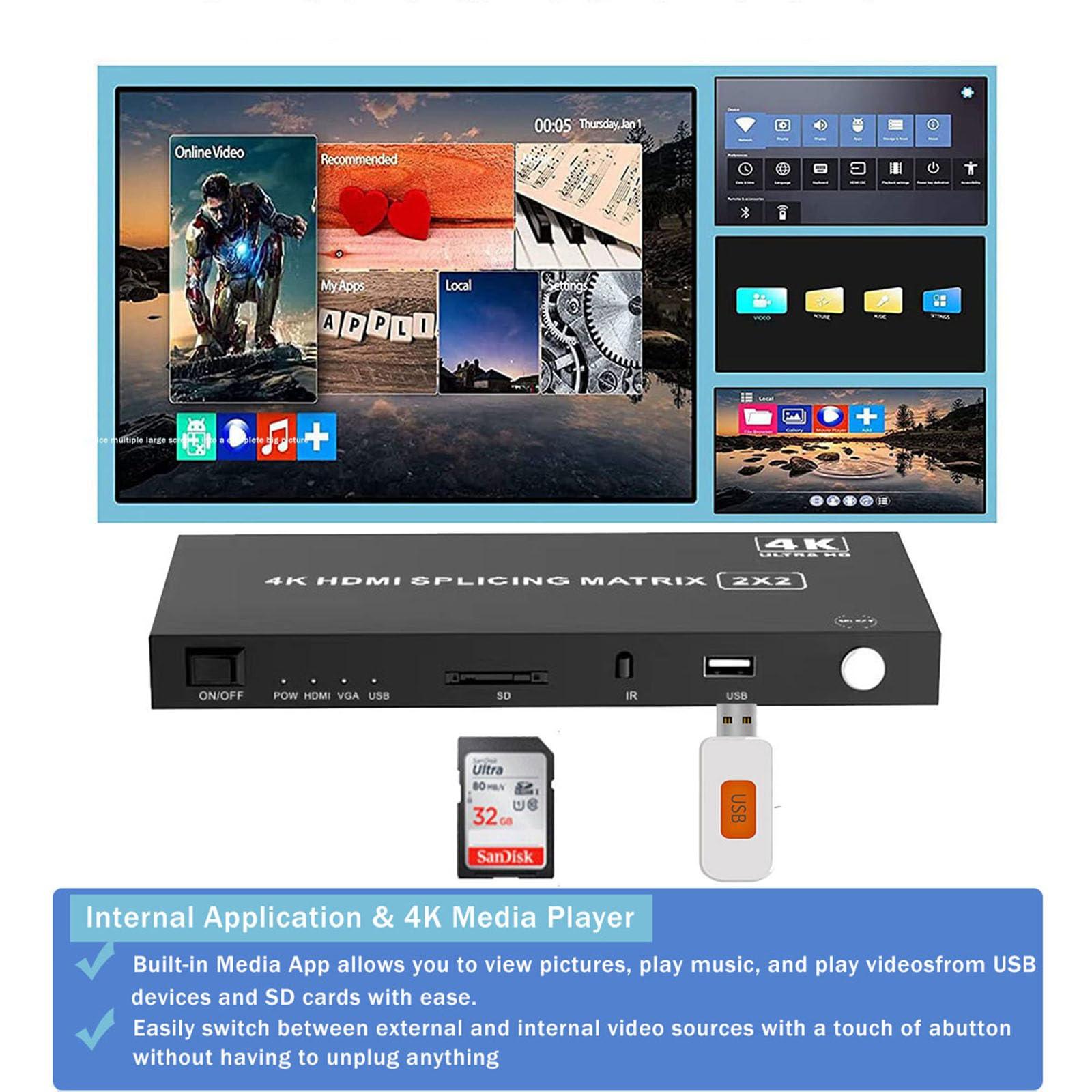

- Internal Application & 4K Media Player: Built-in Media App allows you to view pictures, play music, and play videosfrom USB devices and SD cards with ease. Easily switch between external and internal video sources with a touch of abutton without having to unplug anything
- 1080P HD Display Resolution: HDMI LED video wall controller is compliant with HDCP 1.4 and HDMI 1.4, HDMI input can support resolution can up to 4K@30Hz, 1920x1080P@25/ 30/ 50/ 60Hz; the HDMI output resolution can support 1920x1080P@60Hz(in each display)
- 180Screen Rotation & Edge Mask: With the rotation function, you can flip the image of HDMI output 1 & output 2 to 180 degree, which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border. And the edge mask function can correct and align the bezels and image edges, making the multiple screens more comfortable. NOTE: 180rotation can work only in 2x2 mode, and the output resolutions NOT more than 1080P@60Hz.

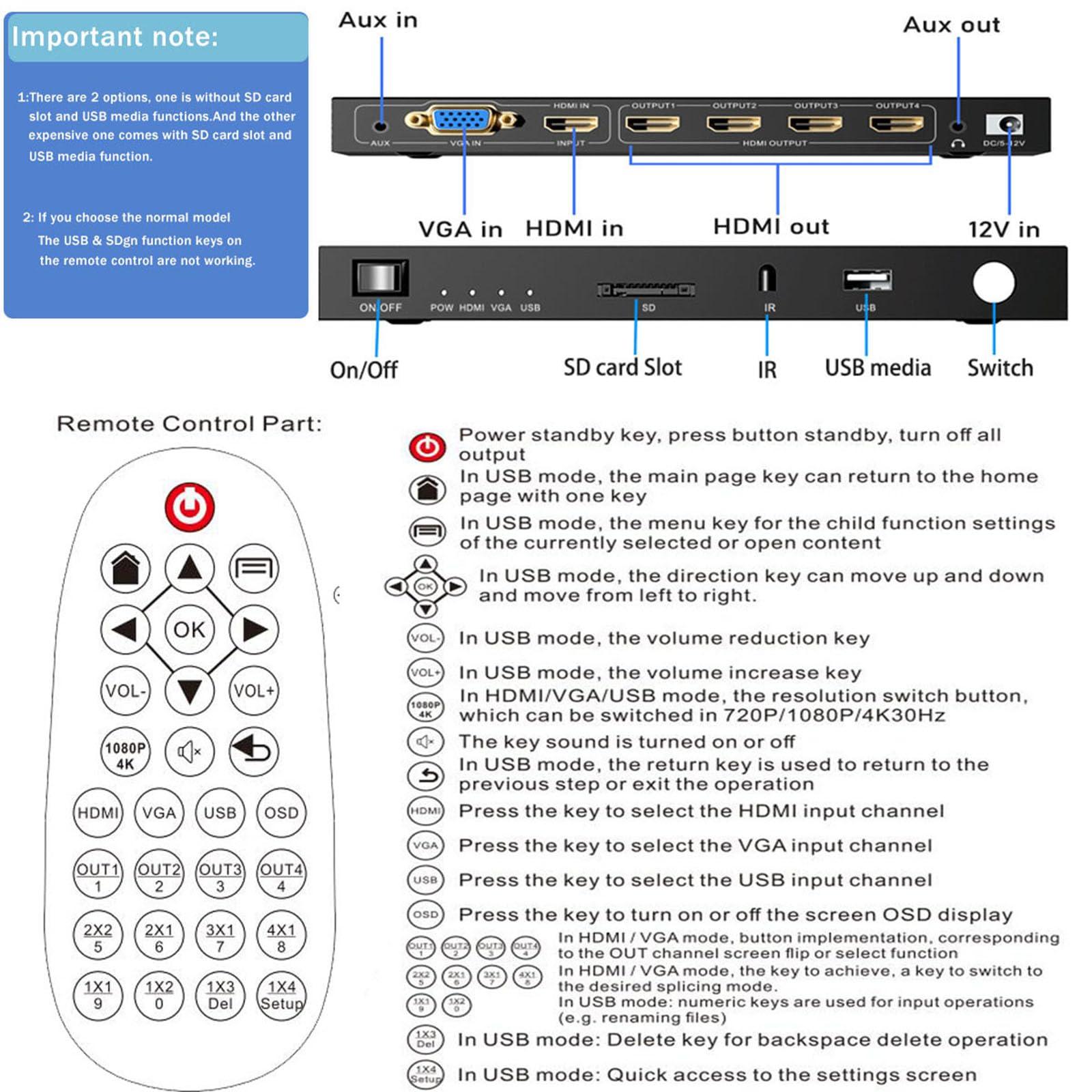

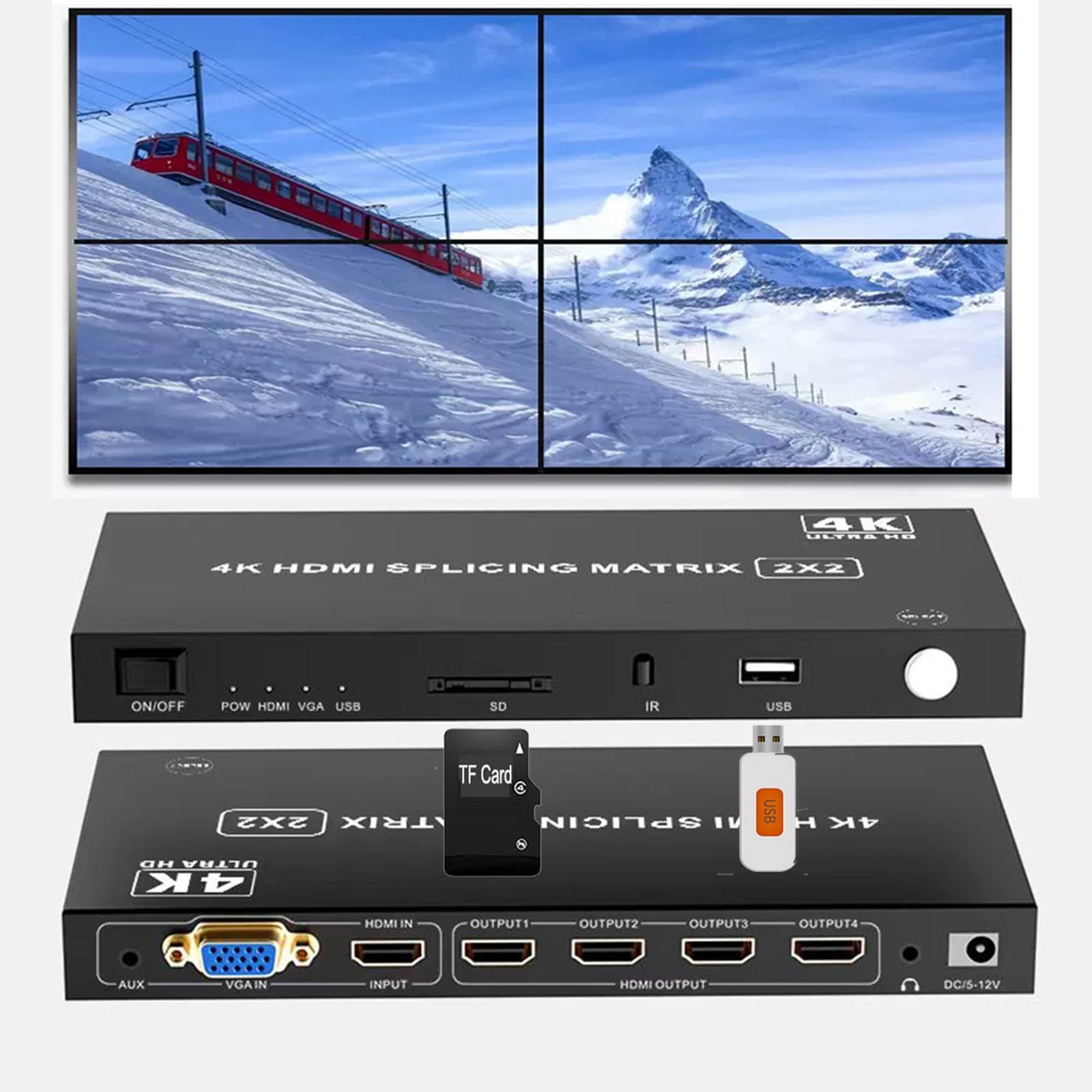

- HDMI, VGA , USB, SD Interface Video InputLed video wall support Four different interface video inputs fulfillment a variety of TV monitors on the market, and ordinary household TVs can also be freely spliced, Easy Installation Plug and play, no driver needed
