Description
- 4K High Resolution Support: This wireless HDMI transmitter and receiver accommodates a wide range of HDMI input resolutions, from 480P to 4k at various frame rates, ensuring compatibility with diverse display devices.
- Efficient Wireless Transmission: Utilizing 802.11ac WiFi MIMO technology and external dual 5dBi gain antennas, this extender ensures reliable wireless transmission with a range of up to 328ft in open spaces. Wireless Band: 4.900 GHz ~ 5.845 GHz (5GHz ISM Band).
- Crystal Clear Audio: Supporting LPCM audio format with multiple sample rates and bit depths, the extender delivers high-quality sound to complement the visual experience.Audio input to replace the audio from HDMI source.
- Loop Out & IR Remote Control : The HDMI Wireless extender seamlessly integrates with IR remote control systems, utilizing carrier frequencies between 20-60KHz, enhancing convenience for users in managing connected devices. IR input jack Infrared receiver jack & Reset button (Embedded in the jack).

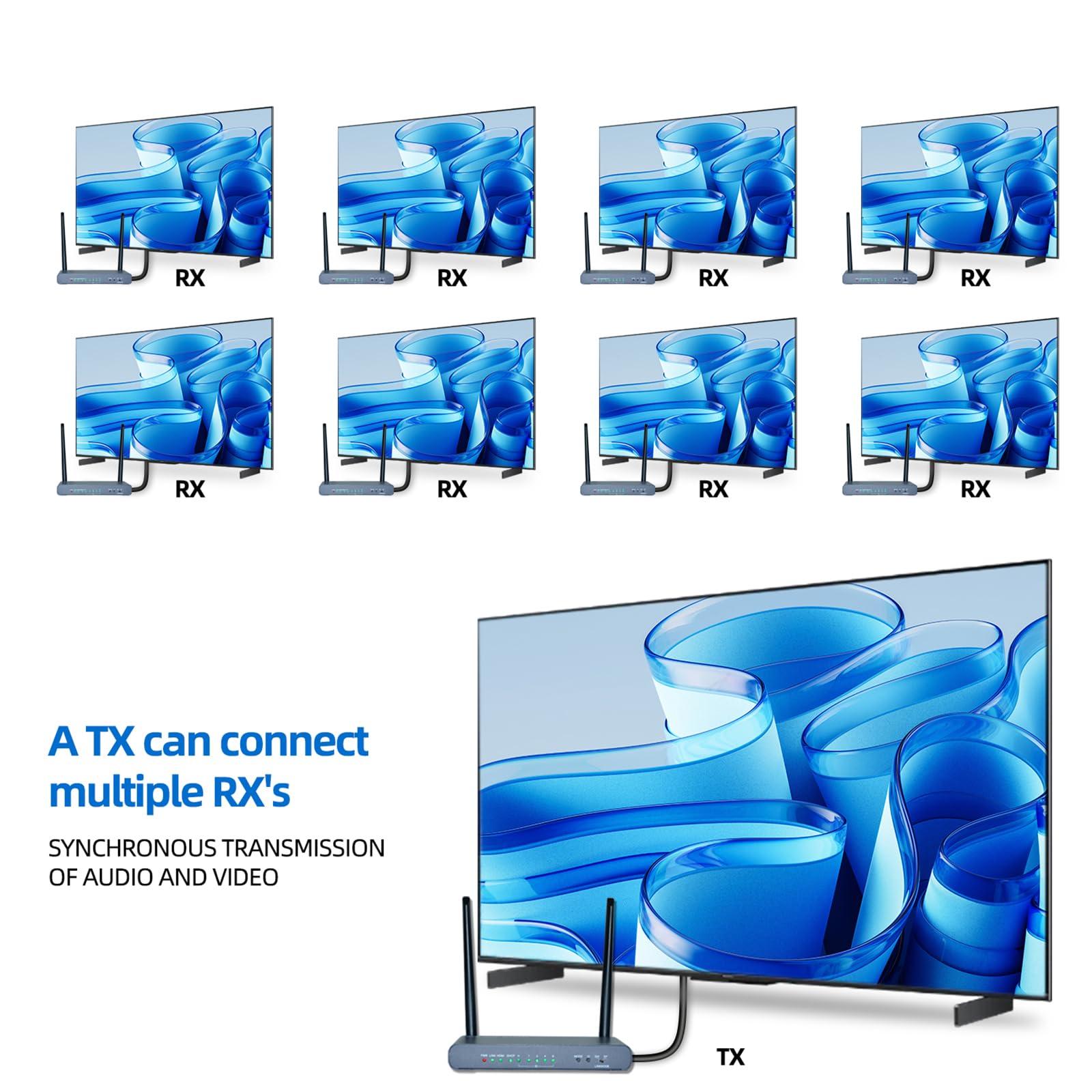

- Splitter Mode: Support one TX and one or multiple RX simultaneous connection.In the case of 1 to N, it is recommended that the number of Rx should not exceed 6.
- Switch Mode: In the SW mode, support one or multiple TX and one RX connection. All TX and RX should be paired before use.TX and RX can only connect after setting the same ID.

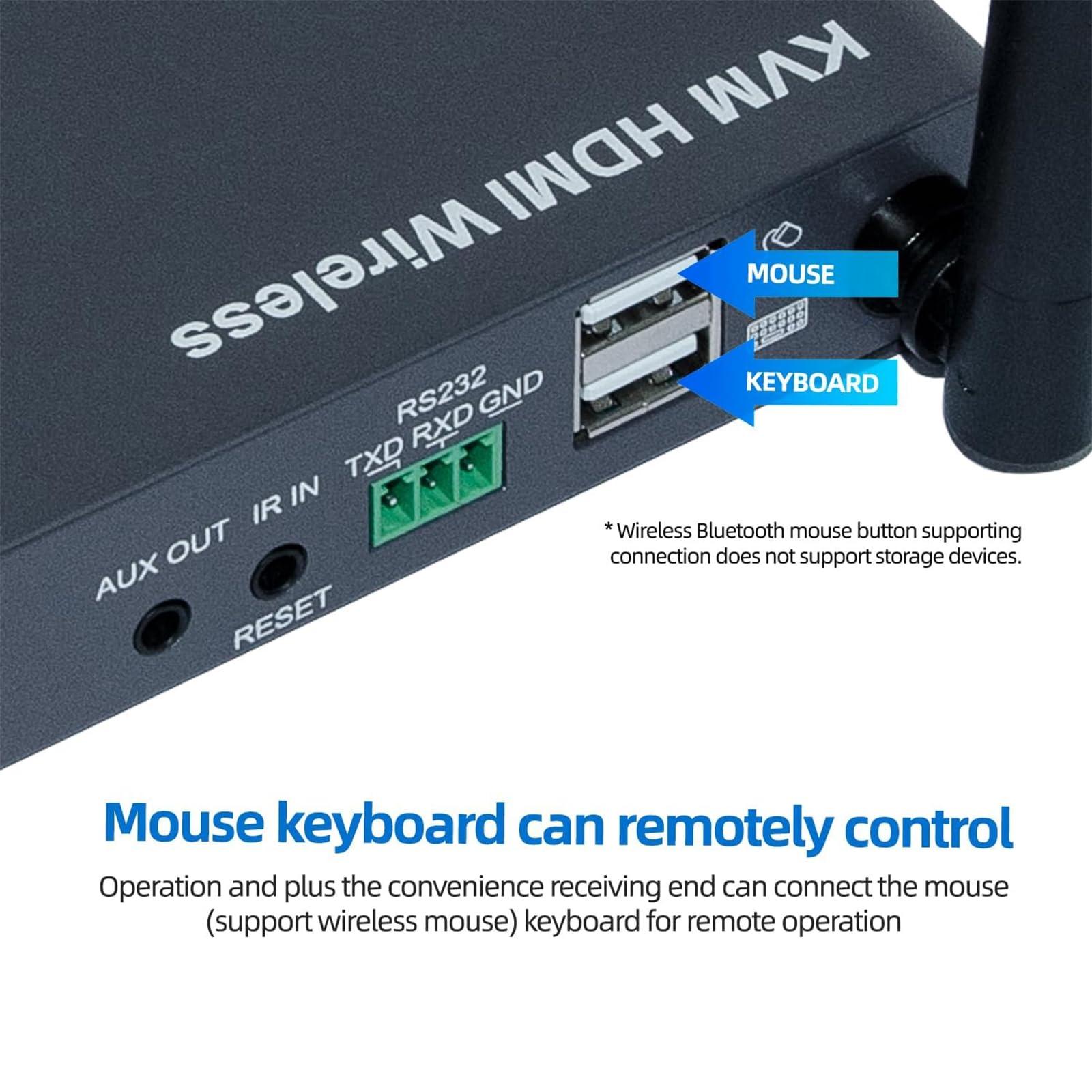

- USB Host Port: Supports external keyboard and mouse connection for remote control. RS232 interface: Support RS232 pass-through. Signal level compatible with RS232 standard.
- No worries about the data security, supports AES 128-bit security encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to protect data. HDCP supported to protect the content.
- Analog audio output port Output Analog Audio Signal as the HDMI output port and connected to outside headset or power amplifier.
- Accessories:Transmitter x1, Receiverx1, User Manual x1, Power Adapter x2, Micro USB-USB cable x1, IR Transmitter cable x1, IR Receiver cable x1.
