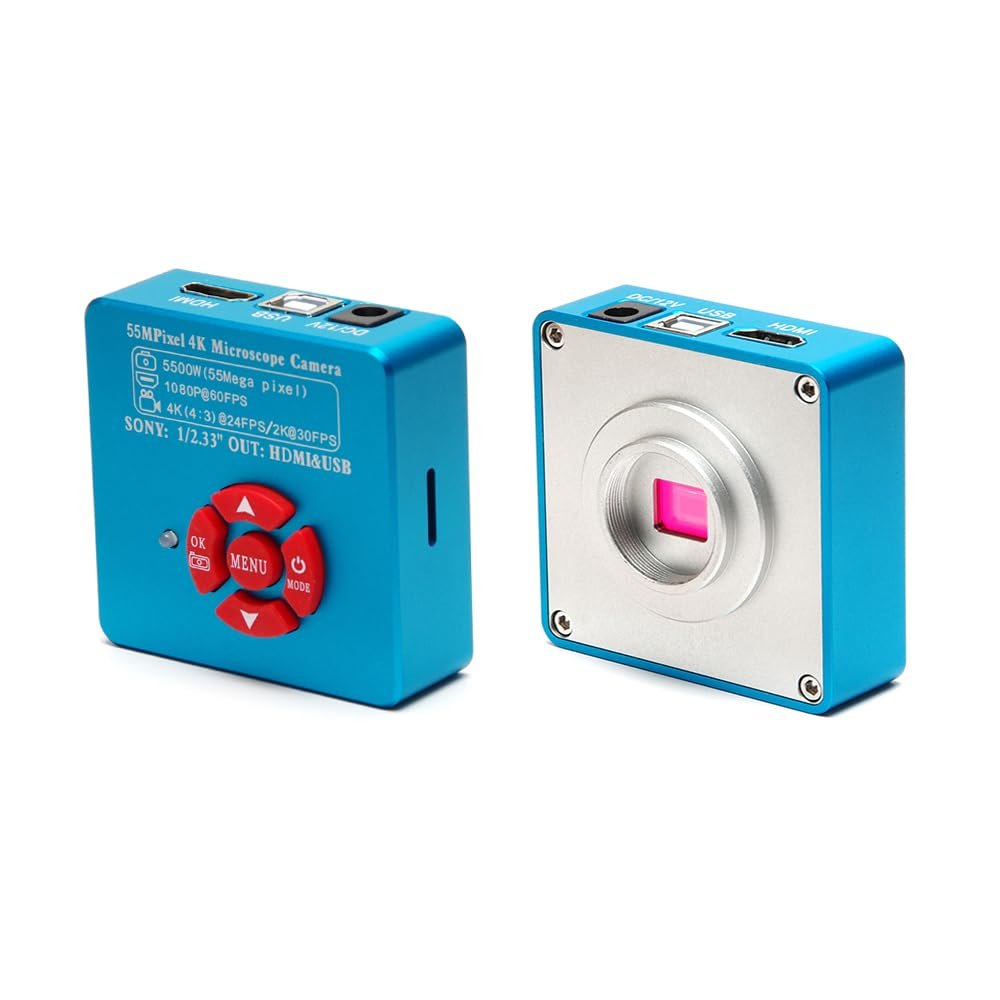

55MP Industrial Microscope Camera, HDMI/USB Digital Eyepiece 1080P@60fps with C/CS Mount for PCB Inspection & Electronics Repair

Description

• 55-megapixel Japanese color CMOS sensor (1/2.33 inch optical size) captures tiny details of PCB solder joints, electronic components, and micro-partssolves the pain point of missing small defects during industrial inspection.
• HDMI Output: 1080P@60fps smooth real-time display (ideal for factory quality control efficiency) USB Output: Multi-resolution transmission (1080P@30fps/720P@30fps) for PC storage/analysis Standard C/CS mount fits most microscopes, easily replacing traditional eyepieces without extra adaptation.
• 8 movable horizontal/vertical reference lines support free adjustment, accurately aligning PCB components and solder pointsimproves positioning efficiency during repair/inspection.
• USB mode works with Windows (XP/7/8/10) and MAC systems, plug-and-play for fast data transfer. Note: Parameter adjustment is recommended via HDMI mode (more suitable for industrial professional scenarios).
• Widely used in PCB board repair, soldering quality inspection, and industrial production line testingalso applicable to laboratory research and professional teaching (focus on high-conversion scenarios for digital accessories category).

C55MB Camera Specifications

Photo Resolution: 9885x5560, 55MP
Video Frame Rate:
4K (4:3) @ 24fps
2K @ 30fps
1080P @ 60fps
Optical Size: 1/2.33 inch
Pixel Size: 1.33um x 1.33um
Color Adjustment: Color / Black & White
White Balance Adjustment: Auto / One-Touch White Balance / Manual
Exposure Adjustment: Automatic / Manual
Photo Mode HDMI Output: 1080P @ 60fps
Moving Reference Lines: Horizontal or Vertical, 8 lines movable
SD Card Configuration: Maximum support for 64GB
Center Crosshair Function: Can be selected to add or cancel
Lens Interface: Standard C Interface
Power: 5V-12V/1A
Dimensions: 68x68x35mm
Weight: 200g
Operating Temperature: 0-70



Special Notes:

The camera can be powered by either DC interface (12V) or USB interface (5V). When connected to a computer via USB, you can use it without plugging in the DC power.
HDMI output and USB output cannot be used simultaneously. When using HDMI output, please disconnect the USB interface from the computer.
The settings/functions on the camera are only effective when using HDMI output.
Please remove the TF card when connecting to a computer via USB.







I. Product Overview

This product is a high-definition HDMI/USB industrial camera (digital eyepiece) for microscopes, equipped with a C/CS interface, suitable for inspection and repair scenarios. This microscope camera provides high-resolution images, making observation and recording more convenient.



II. Main Features

1.High-Definition Images: The microscope camera provides high-resolution images, capturing details and meeting the needs of precise observation and inspection.
2.Digital Interface: Through the HDMI or USB interface, images observed under the microscope can be easily transmitted to a computer or display device.
3.C/CS Interface Compatibility: The camera uses a standard C/CS interface, which can be used with a variety of microscopes.
4.Industrial-Grade Application: This product is suitable for industrial inspection, repair, and research applications.



III. Usage Steps

1.Connect Devices: Connect the C/CS interface of the microscope camera to the corresponding interface of the microscope and tighten it. Connect the microscope camera to a computer or display device using an HDMI or USB cable.
2.Startup and Debugging: Start the microscope camera. Adjust the microscope and camera settings to obtain a clear image.
3.Observation and Recording: Observe the image under the microscope through the display.
4.Maintenance and Care: Regularly clean the lens of the microscope and camera to maintain cleanliness. Avoid collisions and excessive vibrations to ensure the stability and lifespan of the equipment.



IV. Precautions
Please ensure that the devices are connected correctly. Do not use this product in humid or dusty environments.
