Description
- Assembly Required

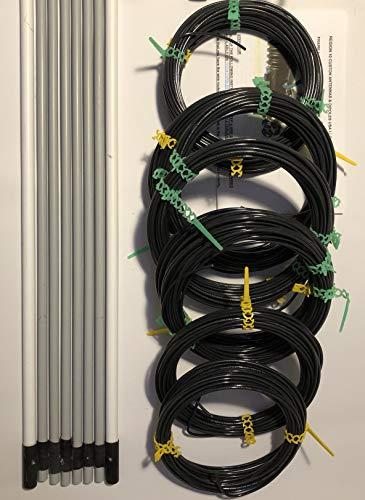

T3FD TERMINATED FOLDED DIPOLE AMATEUR RADIO ANTENNA KIT DESIGNED TO WORK AT ONLY 35 FEET ELEVATION FLAT OR AS A SLOPER. THIS IS A LARGE ANTENNA AND REQUIRES A GOOD SUPPORT SYSTEM. THIS IS A LARGE ANTENNA AS BUILT MEASURES 90 FEET BY 4 FEET WIDE AMERICAN MADE PARTS ipoles USA T3FD-090 500 Watt version DESIGNED TO WORK AT 35 FOOT HEIGHT. GREAT AS NVIS ANTENNA AS SLOPER. You will receive: 4 @ Outer loop wires (coiled) 14 awg stranded THHN 2 @ Center wires (coiled) 14 awg stranded THHN 2 @ End insulators 6 @ 4 Spreader insulator 3/8 inch (10 YEAR WARRANTY) 3 @ Middle insulators (10 YEAR WARRANTY) 1 @ Load resistor 1 @ Broad Band Matching Transformer (1.8-61 MHz) 12 @ 5/16 Crimp type connectors (Eye) 2 @ #10 Crimp type connectors (Eye) 2 @ Stainless Steel #10 machine screw, lock nut, flat washer (for resistor and feedline at cage) 6 @ 5/16 -18 x Stainless Steel bolt, lock washer, flat washer, and nut 8 @ 1 pieces of Outdoor Heat shrink 18 @ 3 Aluminum Wire (3 per spreader) 1 @ 35 600 ohm open-wire feedline 1 @ 250 Spool 5/32 Dacron DUSA rope black 2 @ 100 Hanks 5/32 Dacron DUSA rope black 1 @ Roll of Coax Seal 1 @ Roll Black Electrical Tape 1 @ Bag of spare ties INSTRUCTIONS ON LINE VIDEO INSTRUCTIONS
