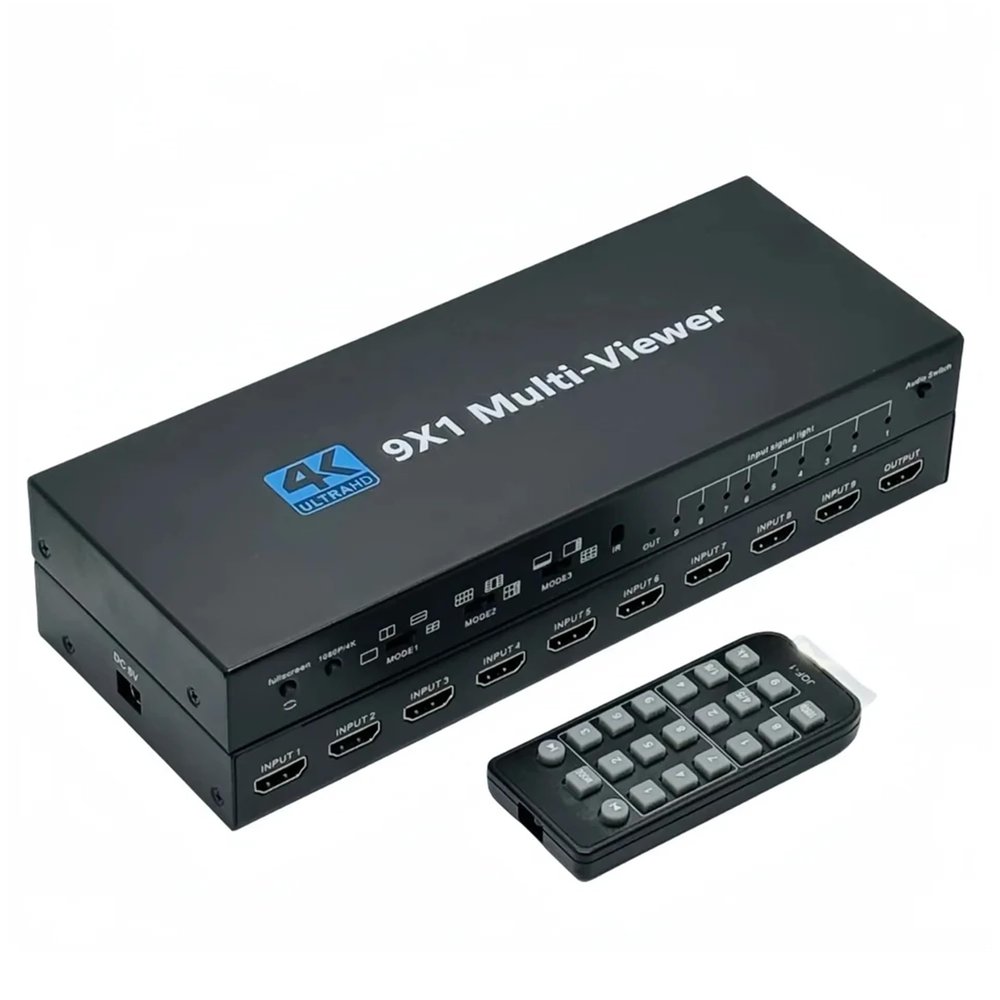

9x1 HDMI Multi-viewer switcher Seamless 4K HDMI 9 Screen Real Time Multi Viewer Screen Splitter 9 in 1 Out Switch Adapter 1x9

Description

• (1)HDMI Multi-Viewer:It can connect up to 9 HDMI input devices to one HD display. It helps to solve your problem of multiple HDMI devices.The HDMI switch box can be remotely controlled by IR remote control without getting up from your seat. Supports seamless switching between games and movies without any interruption.
• (2)9 DIFFERENT DISPLAY MODES:This Hdmi Multi Viewer Switch offers multiple ways to view your source devices, allowing you to display 1 device or all 4 devices at the same time. Display Mode 1, Mode 2, Mode 3, Mode 4. video will be scaled and compressed to fit the entire screen.
• (3)Resolution:There are four HDMI inputs and one HDMI output. Support 4 HDMI signal screen split, support 4 HDMI signal seamless switching. Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution 4K30Hz (RGB) and backward compatible.
• (4) Remote and Pushbutton Control: The 9x1 Quad Multi-Picture Switcher is equipped with function buttons and an included infrared remote control. Both the manual buttons and the remote control support switching input sources, selecting full screen mode or quad mode, and switching the audio of the input sources.
• (5)Wide Compatibility:4 HDMI signal screen splitter is suitable for all HDMI integrated devices such as FE TV, AP TV, STB/IPTV, LCD TV, DVD

9x1 Model Product Description:
This HDMI 9 Multi-viewer is a high-performance switch withnine-channel HD screen segmentation and seamless switching output. lt candisplay 9HD digital video signal on the same screen, and has a variety ofvideo segmentation, seamless switching 9 HD input signal synchronously. Thecontrol methods of the switch is flexible, it can be switched via button and IRcontrol. lt is a very practical and stable switch that easy to install. lt can beused in the major projects, meeting halls and other places.
HDMl output resolution up to 1080P/60Hz and 4K/30Hz, and there are 9average screens in multi-viewer mode when you first use the product. Thescreen shows color bar in case of no signal input.
Product Features:
Support 9 HDMI input, 1 HDMI output
Support 9 HDMl signal screen segmentation
Support 9 HDMl signal seamless switching
Switch between 1080P/60Hz and 4K/30HZ 4K30HZ (RGB) and backwardcompatible.
Support HDMI1.4 HDCP1.4 and backward compatible.
HDMl input and output transmission distance:high speed HDMI cable canreach up to 15M(HDMI cable 19+128AW)
Support IR control*Power Supply: DC5V2A
Specifications:
Support HDMl resolution:24/50/60fs/4K30HZ/1080P/1080i/720p/576p/576i/480p/480i
Support video color format:24bit/30bit/36bit.
Support audio input format:DTS-HD/Dolby-realHD/Dolby-AC3/DSD
Support audio output format: LPCM,PCM2
Max bandwidth: 330Mhz
Max bandrate:10.2Gbps
Input/Output TMDS signal:0.5~1.5V p-p(TTL)
Input/Output DDC sianal: 5Volts p-p(TTL))
Input cable distance: <15m AWG24 HDMI standard cable
Outout cable distance: <24m AWG24 HDMI standard cable
Max working current: 5V/0.6A
Operating Temperature range: (-15~+55C)
Operating Humidity range: 5-90%RH(No Condensation))
Dimension (LX Wx H): 148*63*23mm
