Description
Description :

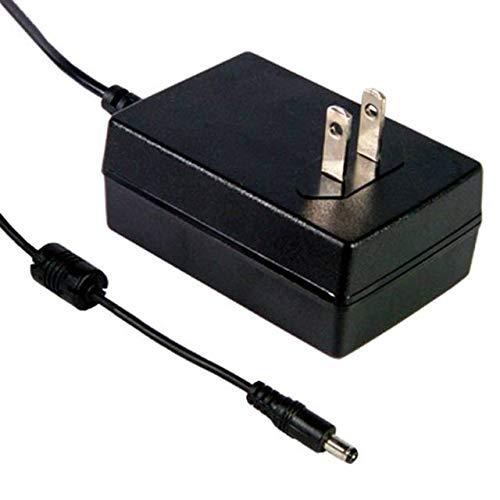

7.5V 22W AC/DC External Wall Mount Adapter Fixed Blade Input
Specification:
- Series:-GSM25U (25W)
- Part Status:-Active
- Region Utilized:-North America
- Form:-Wall Mount
- Input Type:-Fixed Blade
- Voltage - Input:-80 ~ 264 VAC
- Voltage - Output:-7.5V
- Current - Output (Max):-2.93A
- Power (Watts):-22W
- No Load Power Consumption:-100mW (Max)
- Polarization:-Positive Center
- Applications:-Medical
- Efficiency:-Level V
- Operating Temperature:--25C ~ 60C
- Output Connector:-Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm
- Size / Dimension:-3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm)
- Approvals:-CB, cRUus, TUV
- Input Connector:-NEMA 1-15P
- Cord Length:-47.2" (1.20m)
- Lead Free Status / RoHS Status: Lead free / RoHS Compliant
- Moisture Sensitivity Level (MSL): 1 (Unlimited)
