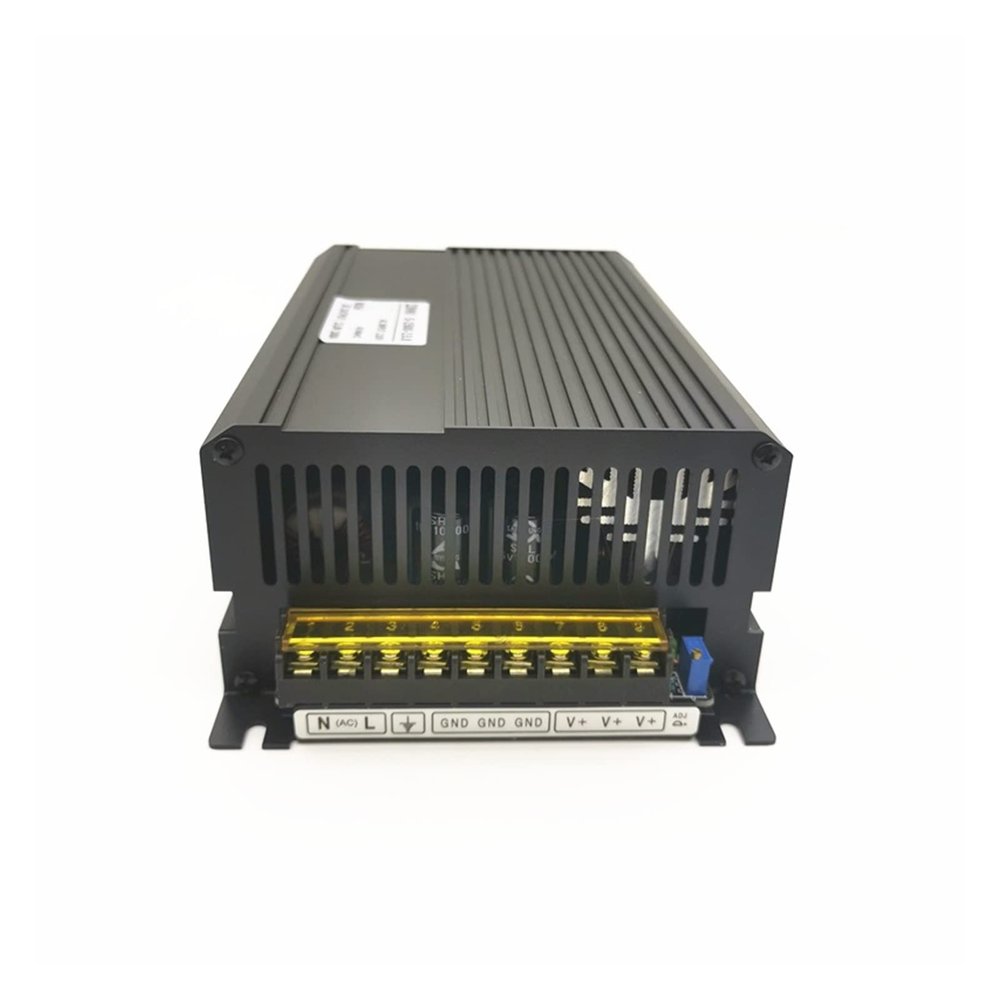

ACE4U 1500W Switching Power Supplyoutputdc Power Supply DC Power Supply Current Stabilizer Laboratory Bench Source(48V 31A)

Description

• High efficiency and low operation temperature
• Soft-start current can reduce the AC input impact effectively
• With short-circuit and overload protection
• Compact size, light weight
• 100% full-load burn-in test
• Welcome and I wish you a happy life, my friend.

1500W Switching Power Supply AC-DC smps output 12V 15V 24V 36V 48V 50V 60V 72V 80V 90v dc power supply

Model Specification: S-1500-12, S-1500-13.5, S-1500-15, S-1500-24, S-1500-27, S-1500-48
DC Output voltage(V): 12, 13.5, 15, 24, 27, 48
Rated output current(A): 125, 110, 100, 62.5, 55, 31
Output current range(A): 0~125, 0~110, 0~100, 0~62.5, 0~55, 0~31
Wave and noise(mVp-p): 200
Inlet stability(%): 0.5
Load stability(%): 0.5
DC output power(W): 1500
Efficiency(%): 84, 84, 85, 85.5, 86.5, 87
AC input voltage range
200~240VAC 47~63Hz ( ac or ac, when you make order please choose it.)
Input current: 7A/230V
AC Inrush current: 50A/230V
<;3.5mA/240VAC
Overload protection
105%-150% Type:pulsing hiccup shutdown Reset:auto recovery
Over-voltage protection
13.8~16.2v
15.5~18.2v
18~21v
27.6~32.4v
31~36.5v
57.6~67.2v
High-temperature protection
70C Cut off output(0~50C)
Temperature coefficient
0.03%/C(0~50C)
Setup, rise, hold up time
1.5s, 50ms, 20ms
Vibration
2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity
-10C~+60C,10%~95%RH
Store temperature and humidity
-20C~+85C,10%~95%RH
