Description

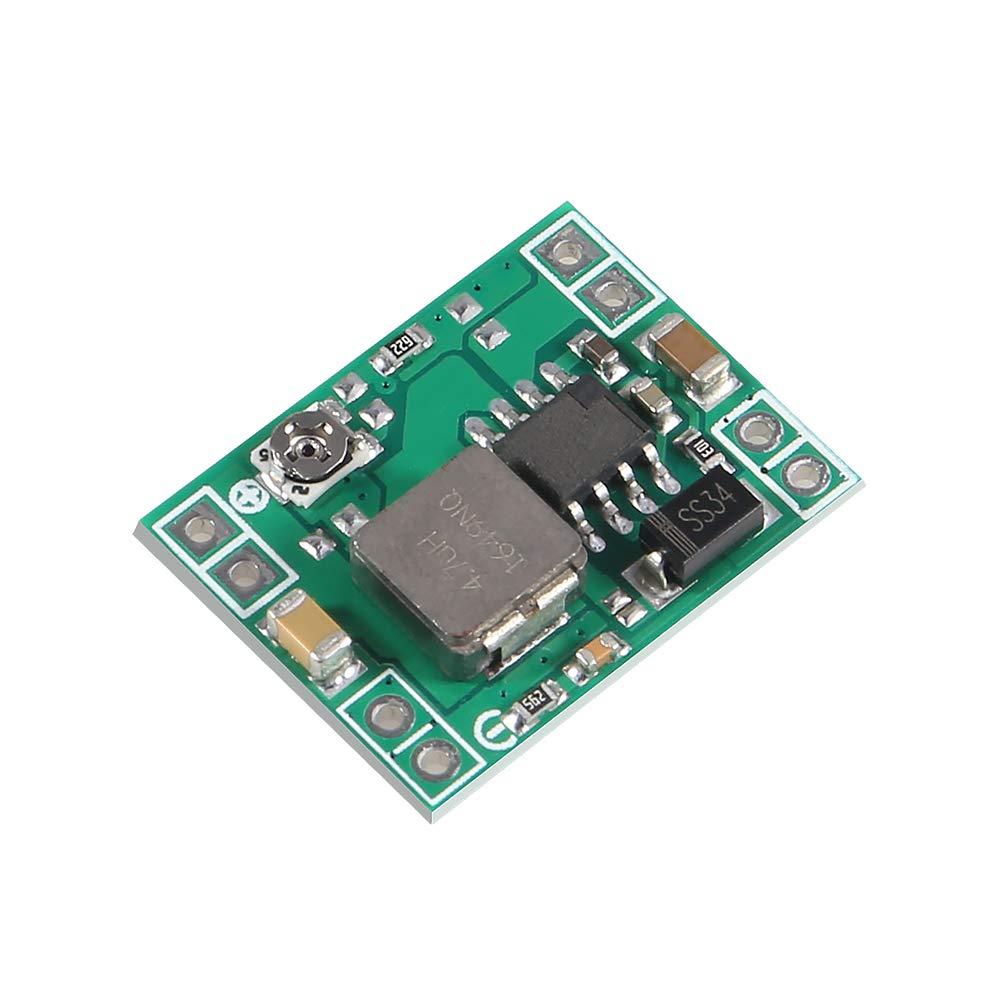

- Mini MP1584EN DC to DC buck converter step-down module with a wide operating range
- Input voltage: 4.5 V to 28 V; Output voltage: 0.8 V to 20 V
- Output current: 3 A (maximum); Conversion efficiency: 92% (maximum)
- Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz

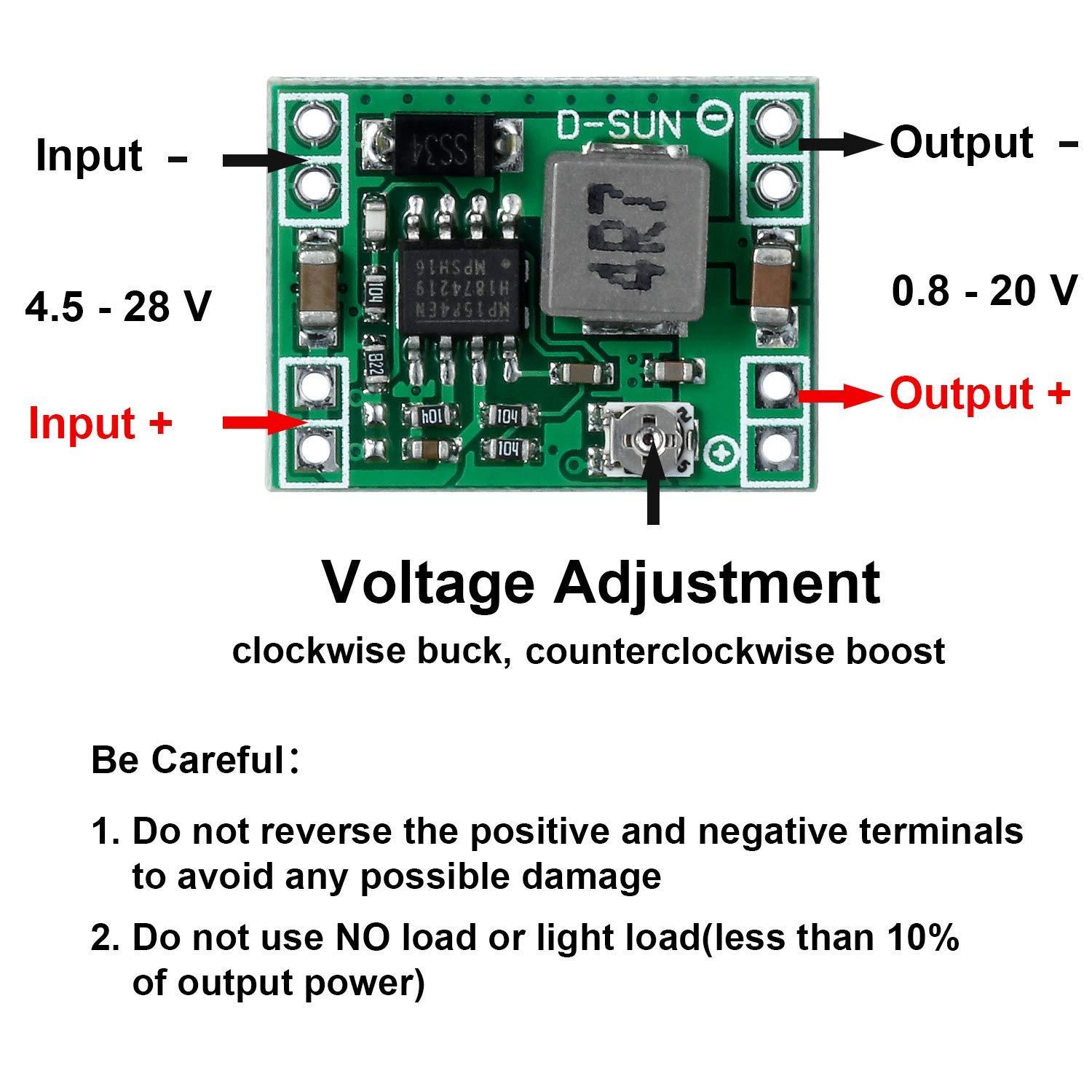

- Operating temperature: -45 to 85 ; Size: 22 mm by 17 mm by 4 mm; Warning: do not reverse the positive and negative terminals to avoid any possible damage; Do not use light load (less than 10% of output power) or without load
Description
The Output Voltage: 0.8V ~ 20V; Input Voltage: 4.5V ~ 28V
Conversion Efficiency: 92% (maximum)
Switching Frequency: 1.5MHz (highest), typically 1MHz
Output Ripple: Less than 30mV
Operating Temperature: -45 Celsius ~ +85 Celsius

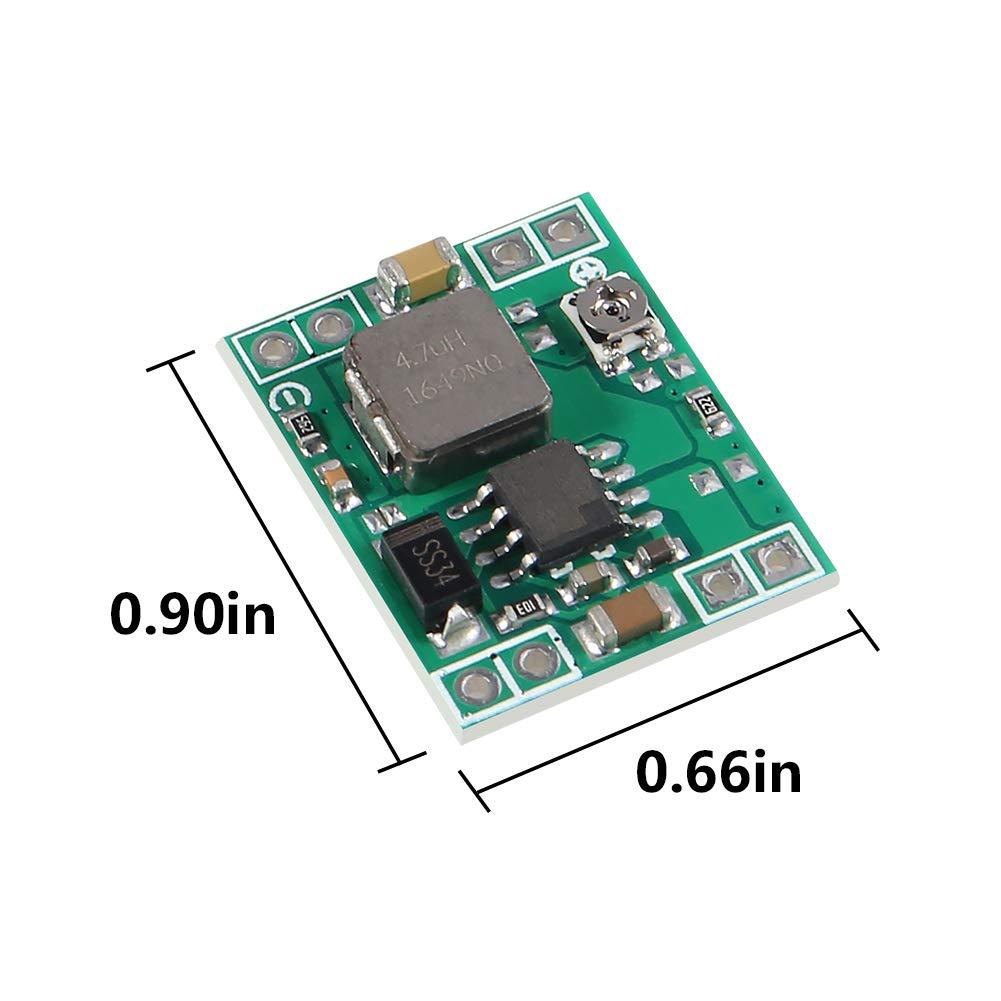

Size: 22mm x 17mm x 4mm/0.87 x 0.67 x 0.16 (L x W x H)
Module Properties: Non-isolated step-down module (buck)
Great for little LED or arduino projects, DIY mobile power supply, monitor power supply.
Material: Metal
Size: 22 x 17 x 4mm
Colour: Green
Package included:

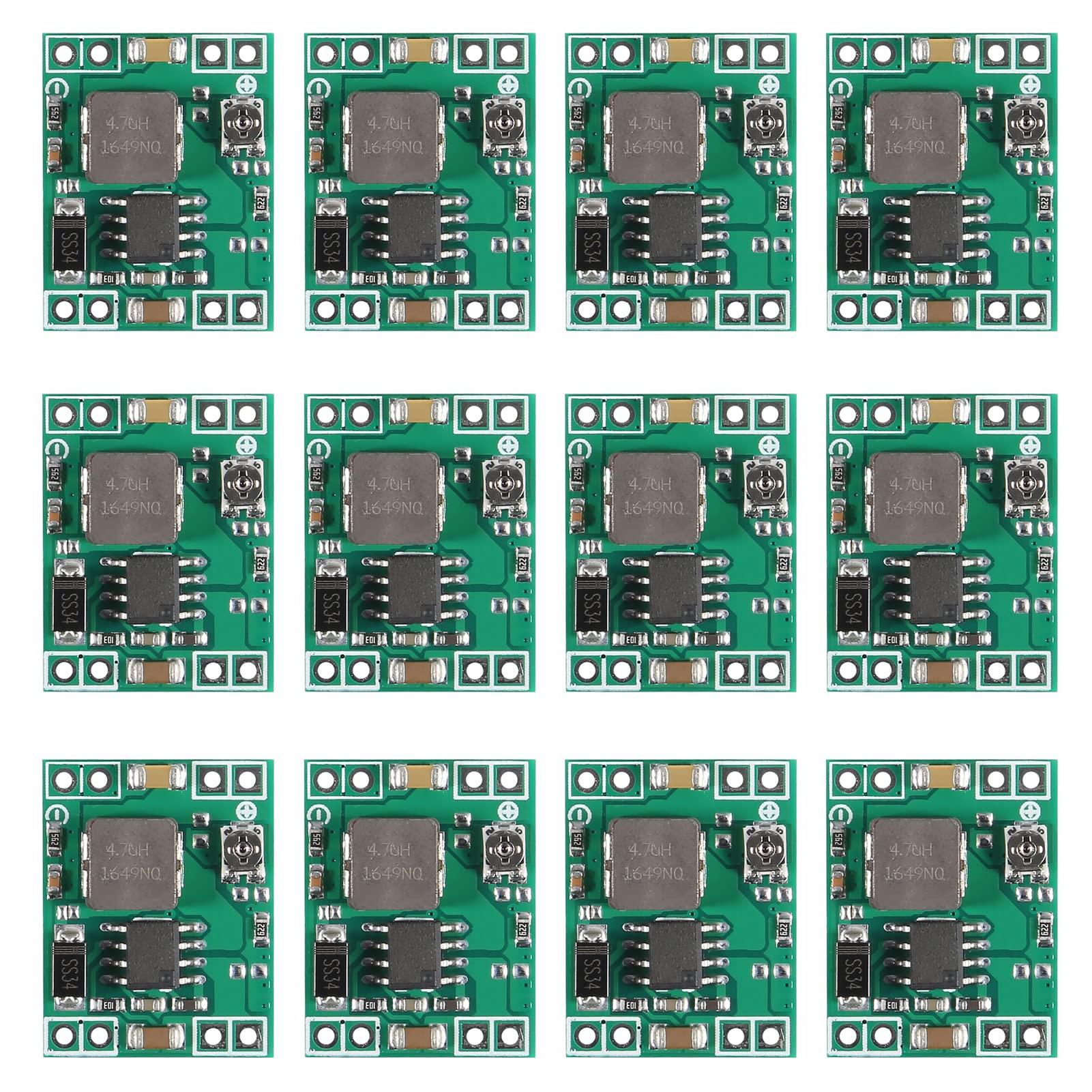

12 x DC-DC adjustable step down power module
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
