Description

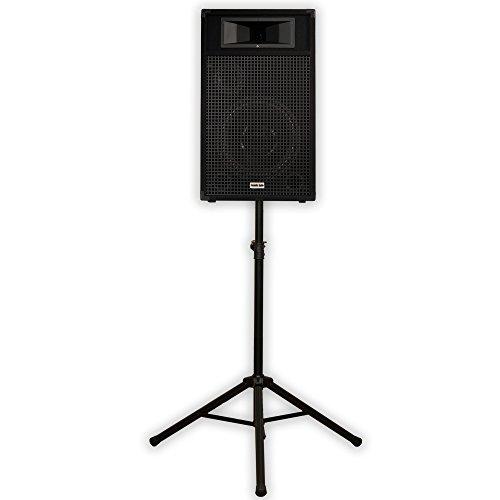

- TRADITIONAL PASSIVE LOUDSPEAKER - Passive old school speaker design, simply drive power from your amplifier or receiver. Full Range sound coverage with 3-way tweeter, midrange and woofer configuration, internal crossover wiring system and speaker stand
- HIGH QUALITY - Deluxe 12" woofer with Poly Zirconium cone, 4" parabolic RFL with Polyimide voice coil former, 4" midrange with Poly Zirconium cone, 10" x 4" tweeter with optimized compression driver, Banana Plug and raw speaker wire inputs

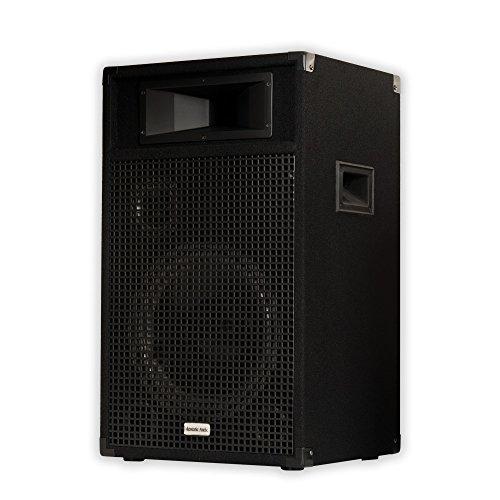

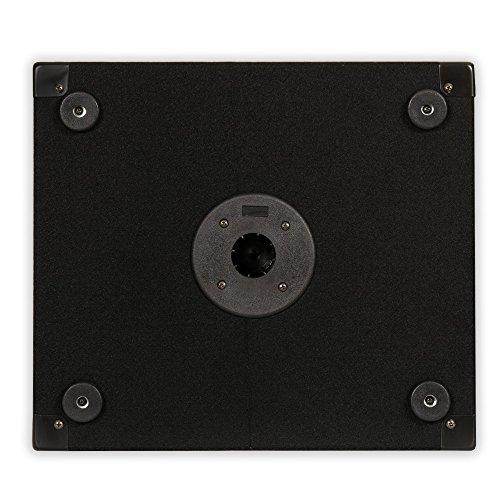

- PORTABLE AND DURABLE - High Quality CARB Compliant MDF wood cabinet with black Aviation Grade carpet, metal mesh grill, 1.375" pole stand mount, protective corners, handles and rubber feet. (H x W x D) 26.5" x 15.8" x 13.8", 28Hz-20 kHz with 99dB at 8ohm
- SYSTEM REQUIREMENTS - Any amp or receiver with raw speaker wire, 1/4 inch jack or Speakon outputs, power from your amp should be no less than 20 and no more than 1000 watts per channel, cable to connect your amp to the speaker. Use for DJ, PA, karaoke and live stage

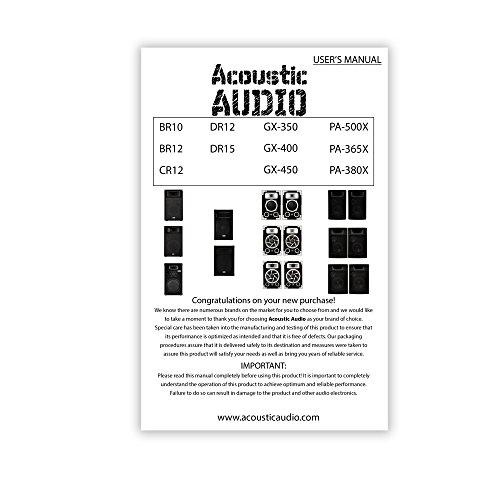

- WHAT'S IN THE BOXES - Acoustic Audio by Goldwood BR12 passive speaker, speaker stand, instruction manual

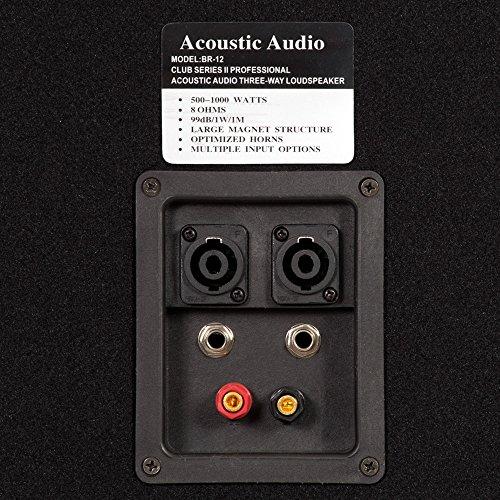

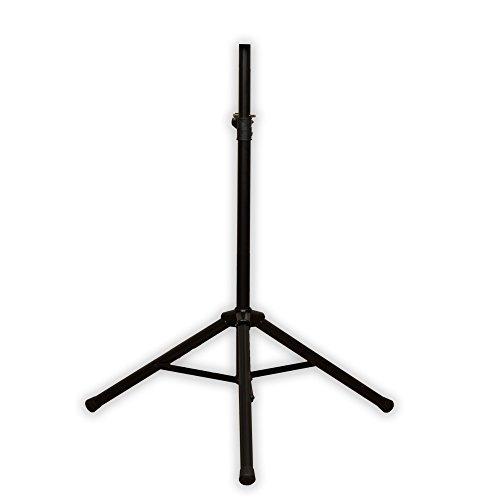

SKU: BR12-PK1 Instructions: Product Description Acoustic Audio by Goldwood BR12 Passive 3-Way Speaker SetPassive old school speaker design, simply drive power from your amplifier or receiverFull Range sound coverage with 3-way tweeter, midrange and woofer configurationDeluxe 12" woofer with Poly Zirconium cone, 4" parabolic RFL with Polyimide voice coil formerVented and extended woofer pole piece, low carbon top and bottom plate4" Midrange with Poly Zirconium cone10" x 4" Tweeter with optimized compression driverInternal Crossover Wiring SystemBanana Plug binding post, positive and negative, raw speaker wire input connections1/4" Jack input and output to Daisy Chain to another passive speakerSpeakon input and output to Daisy Chain to another passive speakerFrequency response is 28Hz-20 kHz with 99dB sensitivity at 8ohmDigitally tuned port for added bass responseHigh Quality CARB Compliant MDF wood cabinet with black Aviation Grade carpetMetal mesh grill, 1.375" pole stand mount, protective corners, handles and rubber feetEasy Transportation size of (H x W x D) 26.5" x 15.8" x 13.8" and 45 pound shipping weightAcoustic Audio AS1 Heavy Duty Adjustable Speaker StandBlack powder coated steel with 4mm thick support barsCenter pole safety lock pin and rubber feet for added securitySturdy 32" to 44" footprint and conveniently folds down to 41" x 5.25" x 6.5" for easy travelSystem RequirementsAny amplifier or home audio receiver with raw speaker wire, 1/4 inch jack or Speakon outputsPower from your amp should be no less than 20 and no more than 1000 watts per channelCorresponding cable to connect your amp to the speakerApplicationsMobile DJ or PALive Stage or KaraokeStudio Monitor or Home StereoWhat's in the boxes1 Passive Speaker1 Speaker StandInstruction Manual Shipping Box Weight 51.00 LBS Shipping Box Height 29.75" Shipping Box Width 15.75" Shipping Box Depth 17.50"
