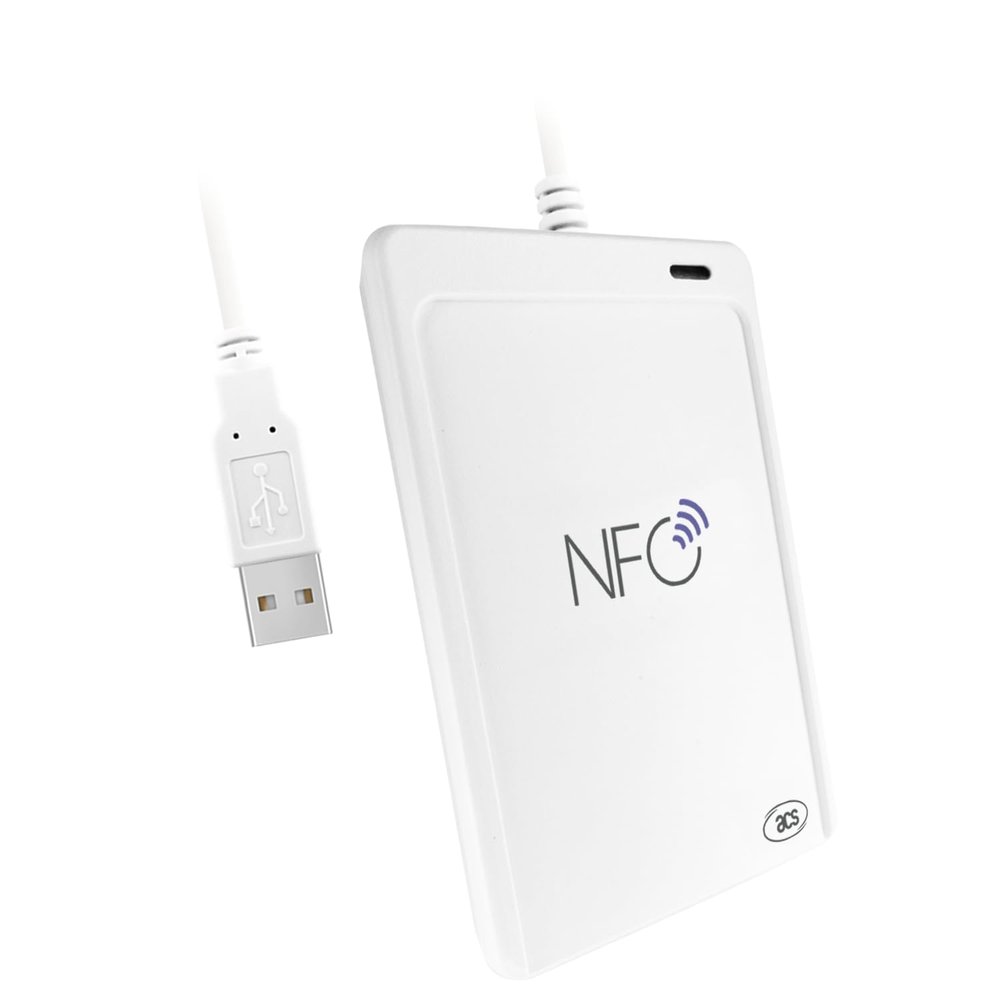

ACR1552U USB NFC Reader IEC14443A/B, ISO15693 Protocol Supported, USB Type A Interface

Description

• 13.56 MHz NFC reader, model ACR1552U
• support MF1k, MF4k, Ultraight, UltralightC, Ntag213/ 215/ 216, MF Plus 2k/ 4k, MF Desfire 2k/ 4k /8k, ICODE SLIX FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
• Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
• Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
• Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)

1.Dimensions (mm): 98 x 65 x 12.8 mm
2. Weight (g)89 g

USB Interface

1.Protocol : USB CCID
2. Connector Type:USB Type-A (ACR1552U-M1)
3. Power Source: From USB port
4. Speed: USB Full Speed (12 Mbps)
5. Cable Length: 1m, Non-detachable

Contactless Smart Card Interface

1.Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE, FeliCa
2.Protocol: ISO 14443-4 Compliant Card, T=CL
MIFARE Classic Card, T=CL
ISO 15693
ISO 18092 NFC Tags
FeliCa

SAM Card Interface

1. Number of Slots:1 Standard SIM-sized Card Slot, built-in on PCB board ( need to open the reader and insert the SAM card on PCB board)
2. Standard: ISO 7816 Class A (5V)
3. Protocol: T=0; T=1

Built-in Peripherals

1. LED: 1 bi-color: Blue and Green
2. Buzzer: Yes

Other Features

1. Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
2.NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
3. Firmware Upgrade: Supported

Certifications/Compliance

1. Certifications/ComplianceCertifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft WHQL
2. Device Driver Operating System Support: Windows, Linux, macOS, Android, iOS/iPadOS (16 or above)
