Description
- View Mode: Fisheye View, Dewarped View, 270 Corner View, Multiple View, ePTZ View
- Built-in Analytics: Object Based Motion Detection, Tampering Detection, Shock Detection, Digital Auto Tracking, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection
- Server-based Analytics: Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection
- Event Trigger: Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection
- Event Response: Notify control center, Go to ePTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Save video or snapshot to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

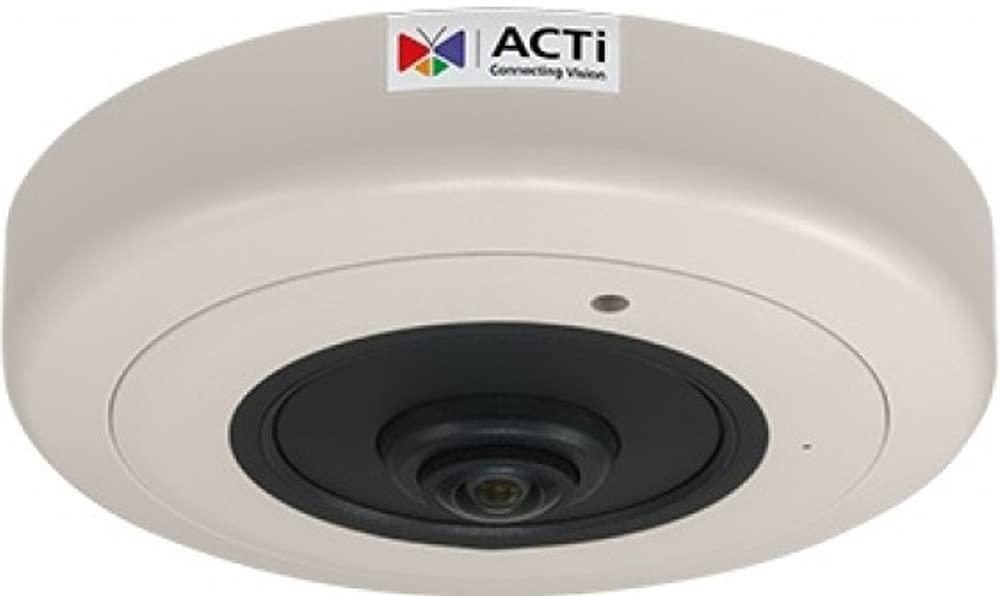

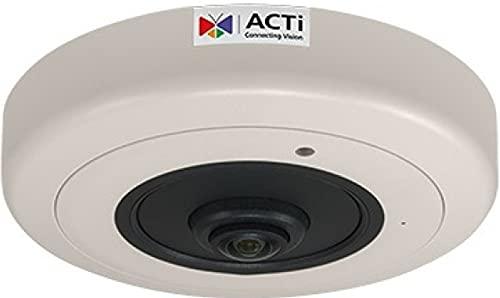

ACTi B511A 12MP Video Analytics Indoor Hemispheric Dome Camera with SLLS, Fixed Lens, f1.65mm/F2.8, H.264, Dewarping, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, Built-in Analytics Key Features Day & Night with Superior Low Light Sensitivity and Adaptive IR LED Fisheye Lens with f1.65mm/F2.8 360/180 Panorama View with Dewarped Streaming Digital Auto Tracking Overview, Zoom and Tracking (OZT) Specifications Maximum Resolution: 12MP Image Sensor: Progressive Scan CMOS Sensor Size: 1/1.7" Effective Pixels: 4072x3046 Mechanical IR Cut Filter: Yes IR Sensitivity Range: 700-1100nm IR LED: Adaptive IR LED x12 (850 nm) IR Working Distance: 20m Horizontal Resolution: 2250 TV Lines S/N Ratio: 56 dB Lens Mount: Board Horizontal Viewing Angle: 198.5 (overview area)/121.1 (high detail area) Vertical Viewing Angle: 198.5 (Fisheye View) Compression: H.264 (Baseline/ Main/ High profile), MJPEG View Mode: Fisheye View, Dewarped View, 270 Corner View, Multiple View, ePTZ View Bit Rate: 128Kbps-12Mbps (per stream) Wide Dynamic Range: Extreme WDR (130 dB) Digital Noise Reduction: 2D+3D DNR Privacy Mask: 8 configurable regions Text Overlay: Yes Audio Type: 2-way, Built-in Microphone, Mic-in, Line-in, Line-out Audio Compression: 8 kHz, 16 bit encoding, Mono, PCM, G.711 Ethernet Port: 1x RJ-45 connector Profile S, Profile G, Profile T, Profile Q Power Source: PoE Class 3 (IEEE802.3af), DC 12V Power Consumption: 7.17W (PoE) Starting Temperature: -10C~50C Operating Temperature: -10C~50C UPC: 888034008939 EAN: 4710751962606 Dimensions: 5.9"x1.7" Weight: 0.98 lb
