Description
- Maximum Frame Rate vs. Resolution: 7 fps at 3648 x 2736, 7 fps at 2592 x 1944, 7 fps at 2048 x 1536, 7 fps at 1440 x 1080, 7 fps at 1280 x 960, 7 fps at 800 x 600, 7 fps at 640 x 480, 7 fps at 320 x 240
- Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
- Server-based Analytics: Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection
- Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
- Event Response: Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server

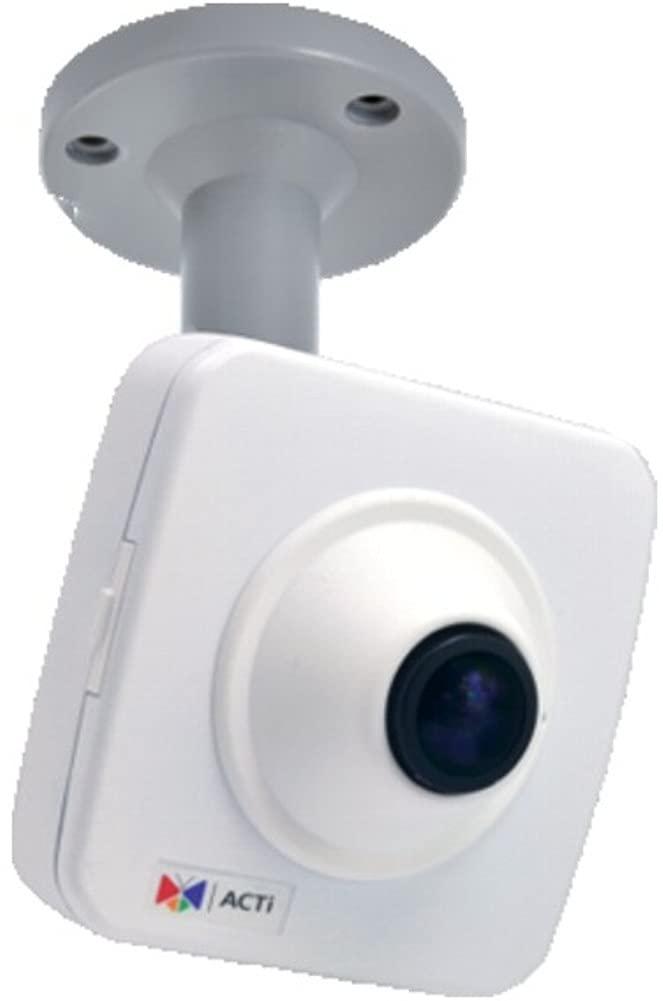

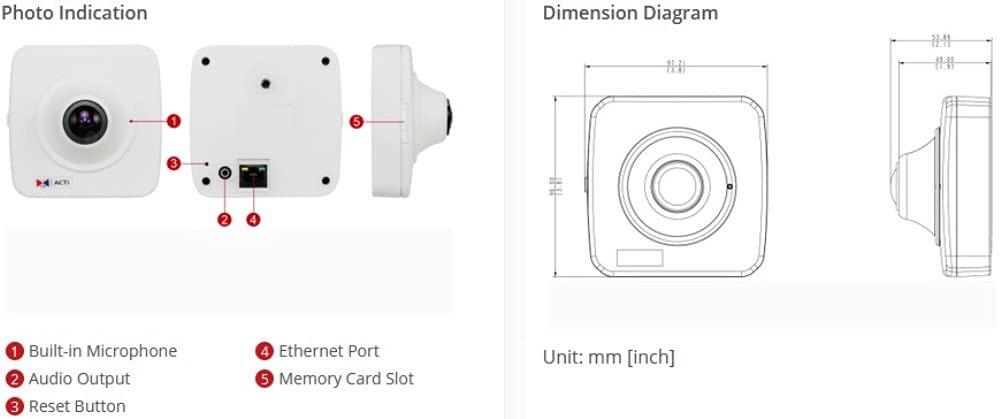

ACTi E16 10MP Fisheye Cube with Basic WDR, Fixed lens, f1.37mm/F2.0 (HOV:187.7 (Overview Area), 114.5 (High Detail Area)), H.264, DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE Key Features 10 Megapixel Fisheye Lens with f1.37mm/F2.0 Basic WDR 180/360 Fisheye View Event trigger, response and notification Specifications Maximum Resolution: 10MP Application Environment: Indoor Image Sensor: Progressive Scan CMOS Sensor Size: 1/2.3" Effective Pixels: 3856x2764 Minimum Illumination: 0.1 lux at F2.0 (30 IRE, 2400K) Horizontal Resolution: 1450 TV Lines S/N Ratio: 52dB Focal Length: Fixed focal, f1.37mm Aperture: F2.0 Iris: Fixed Focus: Fixed Lens Mount: Board Horizontal Viewing Angle: 187.7 (overview area)/114.5 (high detail area) Vertical Viewing Angle: 187.69 Compression: H.264 (Baseline/Main/High profile), MJPEG Bit Rate: 28Kbps-6Mbps (per stream) Bit Rate Mode: Constant, Variable Wide Dynamic Range: Basic WDR (70 dB) Digital Noise Reduction: 2D + 3D DNR On-Screen Graphics: Yes Image Orientation: Flip, Mirror Audio Type: 2-way, Built-in Microphone, Line-out Audio Compression: 8 kHz, 16 bit encoding, Mono, PCM, G.711 Ethernet Port: 1x RJ-45 connector GPS Position: Manual setting Audio Interface: Built-in microphone, 3.5mm Phone Jack Power Source: PoE Class 2 (IEEE802.3af) Power Consumption: 3.84W Starting Temperature: -10C~50C Operating Temperature: -10C~50C Operating Humidity: 10%-85% RH EAN: 4718201799666 UPC: 888034006003 Dimensions: 3.8"x3.8"x1.8" Weight: 0.53lb
