Description
- Green LED on front panel to confirm power on, Terminal block for DC input/output
- Over Temperature protection, Over Load protection, DC Input Low Battery Shutdown
- DC Input High Battery Shutdown, DC Output Short Protection
- DC Output Over Current Protection, DC Output Over Voltage Protection
- Non-Isolated, Aluminum case for optimal cooling, Instruction manual

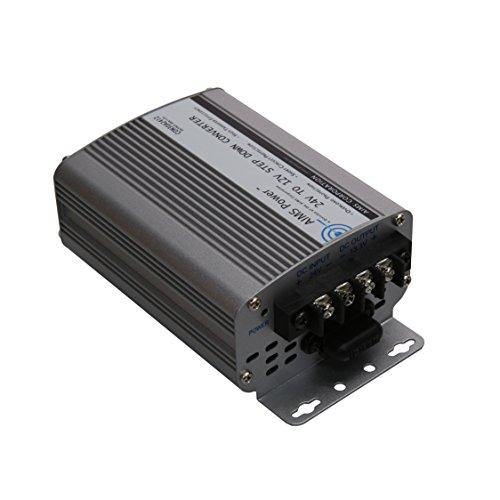

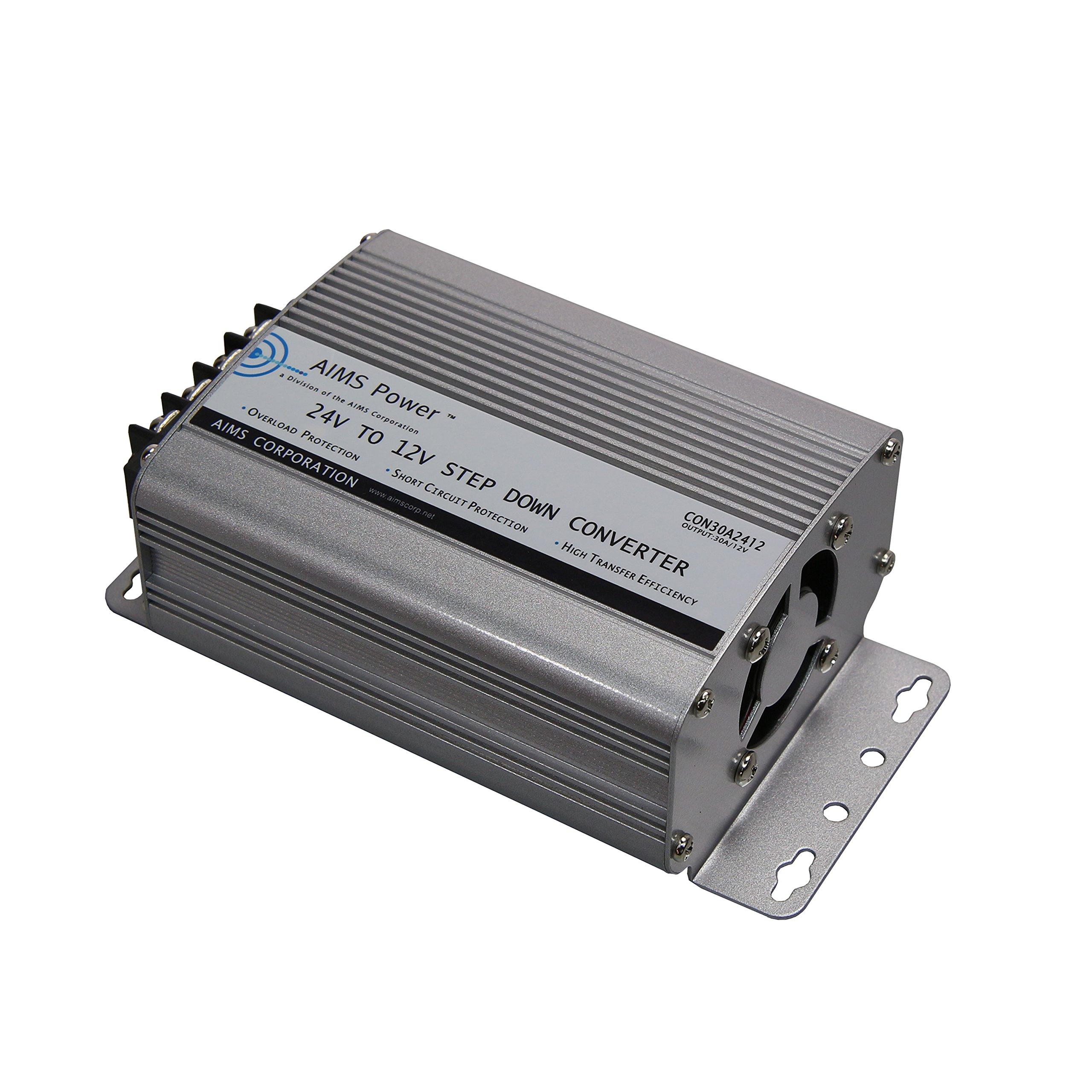

AIMS Power CON30A2412 30-Amp 24V to 12V DC to DC Converter, Green LED on front panel to confirm power on, Terminal block for DC input/output, Over Temperature protection, Over Load protection
This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 30 Amps. This a non-isolated 30 amp DC-DC converter and is made for use in negative ground systems.
Key Features
Green LED on front panel to confirm power on Terminal block for DC input/output Over Temperature protection Over Load protection DC Input Low Battery Shutdown DC Input High Battery Shutdown DC Output Short Protection DC Output Over Current Protection DC Output Over Voltage Protection Non-Isolated Aluminum case for optimal cooling Instruction manual
Specifications
DC Input Voltage: 20-37 Vdc DC Output Voltage: 12.5-13.5 Vdc Output Current: 30A Output Current Max: 36A Conversion Effiency: >90% DC Input Low Battery Shutdown: 18 +/- 1 V DC Input High Battery Shutdown: >38Vdc DC Input Over Current Protection: 20A Fuse DC Input Polarity Protection: Fuse Protected Over Temperature Protection: 150 +/- 5F DC Output Over Current Protection: 36A DC Output Over Voltage Protection: TVS Diode Dimensions: 5.91" x 3.39" x 2.2" Weight: 1.0 lbs
