Description
- Ultra Small Volume: Module size only: 29*18*5 .4mm; It is very easy to embed into various systems.
- Stamp Hole Design: Convenient for users to connect. It is also convenient for industrial use.
- High conversion efficiency and low heating.
- High efficiency/high stability/high cost performance.

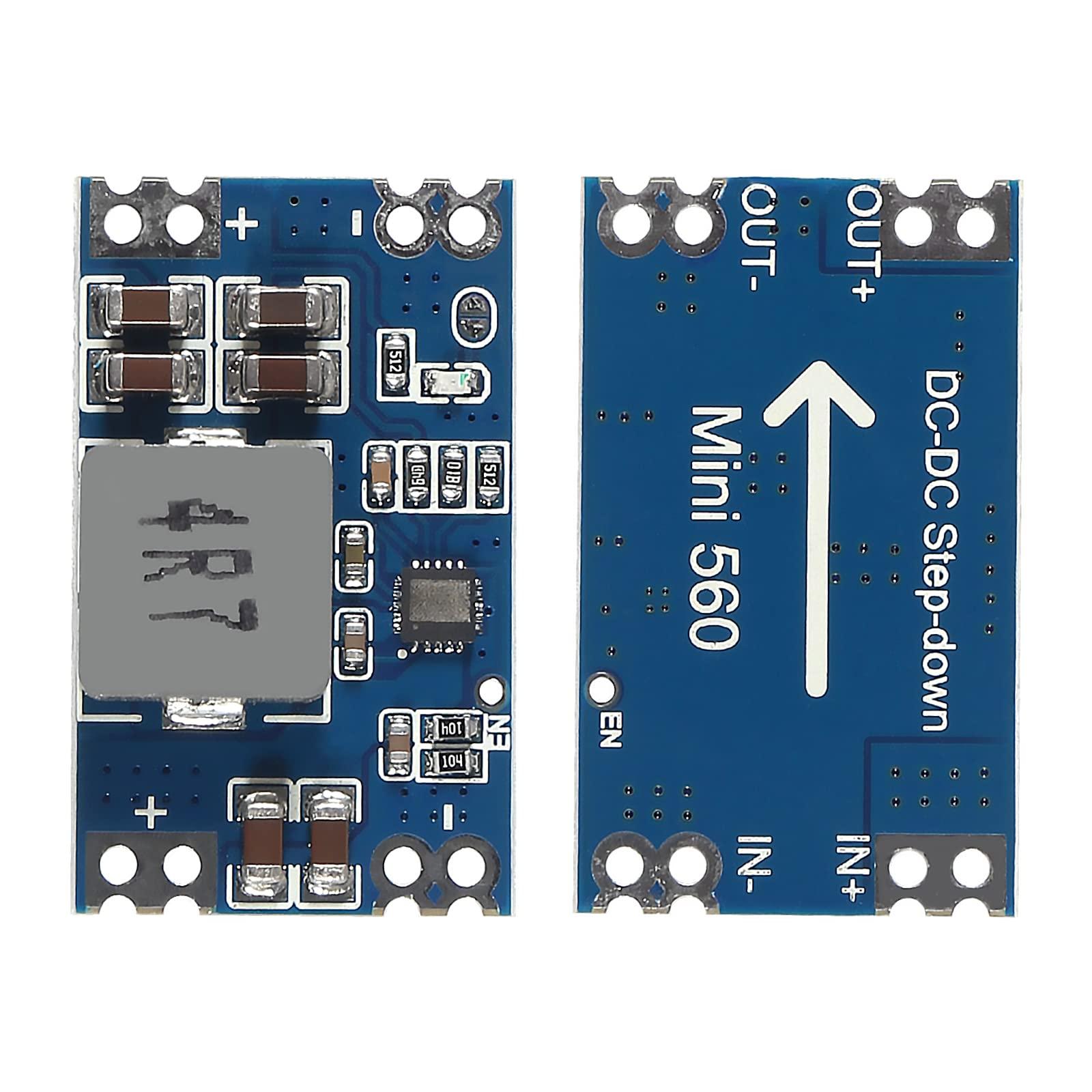

- MINI 560 buck step-down module
Product Parameters
Model Name: Mini560 (MINI DC-DC step-down module)
Version: 3.3V
Output Voltage: 3.3V
Input Voltage: 5V-20V
Output Current: 4A; requires heat dissipation)
Differential Pressure: >1.7V
Operating Frequency: 500KHz
Conversion Efficiency: 99%(MAX)
Operating Temperature: -40C to +85*C

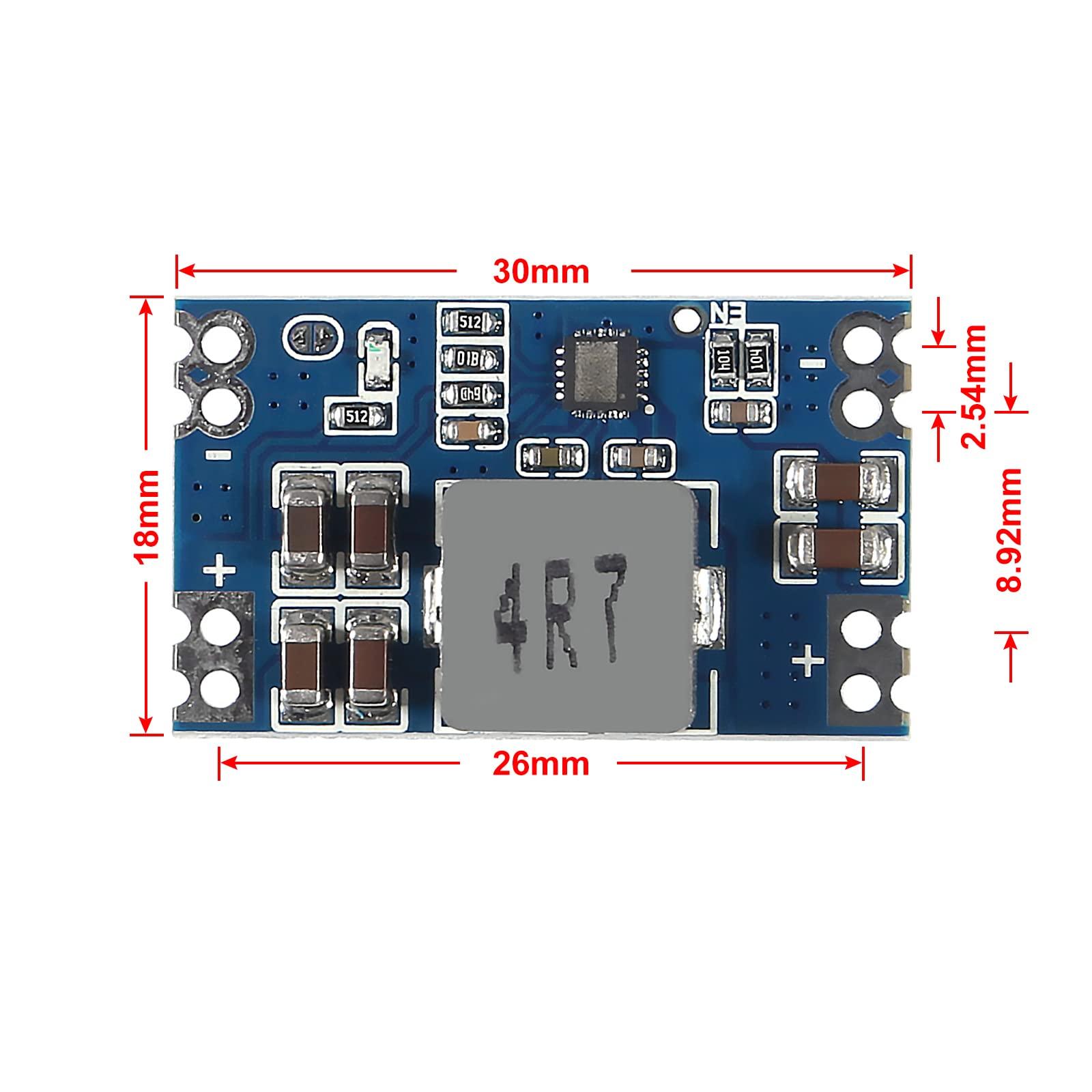

External Dimensions: 29*18*5.4 (L*W*H) (mm)
Module Nature: Non-isolated buck
Rectification Method: Synchronous rectification
