Description
- Stand alone HD video recorder with H.264/ hardware encoder built in. Real-time HD video capture using H.264/MP4 AAC hardware codec so less file size and less storage drive space needed.
- Recording in sharp and clear MPEG4 format and stored into a USB drive of user's choice. Can be plugged into PC USB port with driver setup as an USB video capture device for PC Windows OS.
- Supports multiple HD/SD video/audio inputs: 1 HD input or DVI via using optional adapter 1 HD/SD component YPbPr/YUV video/audio input 1 composite RCA video input + stereo L/R audio input 1 microphone input for recording with live commentary
- Supports all HD inputs at 1080p, 1080i, 720p, 576p and 480p. Supports all computer DVI inputs from 640x480 to 1920x1080 pixels.
- Supports all component YPbPr/YUV video inputs at 1080p, 1080i, 720p, 576p/576i and 480p/480i. Supports HD output/pass-through so users can view the HD videos while recording performed simultaneously.
- Supports scheduled recording for one-time or repeated daily or weekly recording. Users can set up the timer schedule from the LCD panel screen on the recorder for when to start and end the recording.
- Recorded files will be auto saved into USB drive of user choice. Users can program multiple recording tasks at different time intervals as needed. Date-scheduled task only execute one time on any specified day.
- Weekly scheduling of recording allows users to program recording for one-time only, no recording or repeated recording for any weekday. Supports microphone input for recording with live commentary. Easy operation by IR remote control.
- Supports direct playback function for recorded videos, movies, digital photos and text file formats in MPEG, H.264, RM/RMVB, JPEG, BMP, MP3 and so on.
- Supports recording bit-rate at 4M, 10M or 16Mbps maximum. Recording speed at 120MB per minute or 7GB per hour. Supports all USB hard drive or USB flash drive sizes up to 2 TB maximum in NTFS or FAT/FAT32 format.
This professional-grade HD/SD DVR recorder allows user to record their favorite video game play, TV shows, computer DVI video, CCTV cam into MPEG-4 files.
Recorded videos are saved into an external USB drive of user choice.
1080p or 720p recording quality is selectable when the video input resolution is 1080p. Otherwise the recording quality will follow the original video input resolution if the input is equal or less than 720p.
Stand Alone HD Video Recorder

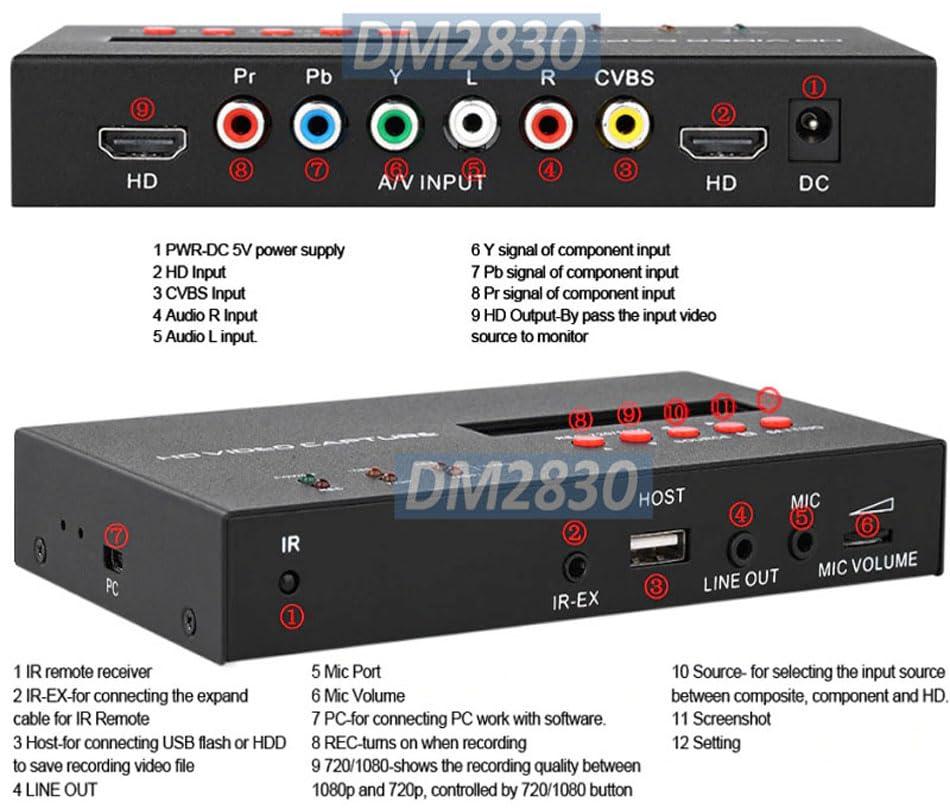

This HD video recorder supports multiple HD/SD video/audio inputs/output including: 1 HD input 1 component video audio input 1 composite RCA A/V input 1 Mic input for recording with live commentary 1 HD output + 3.5mm audio output
1080P HD DVI Video Recording
Users can use this HD DVR for recording HDV output from computer, HD player, game console, etc into MPEG4 files.
[Note]: This device can not record HD content with HDCP encrypted from commercial sources. In such case please use component video output from such HD device HD source for recording.

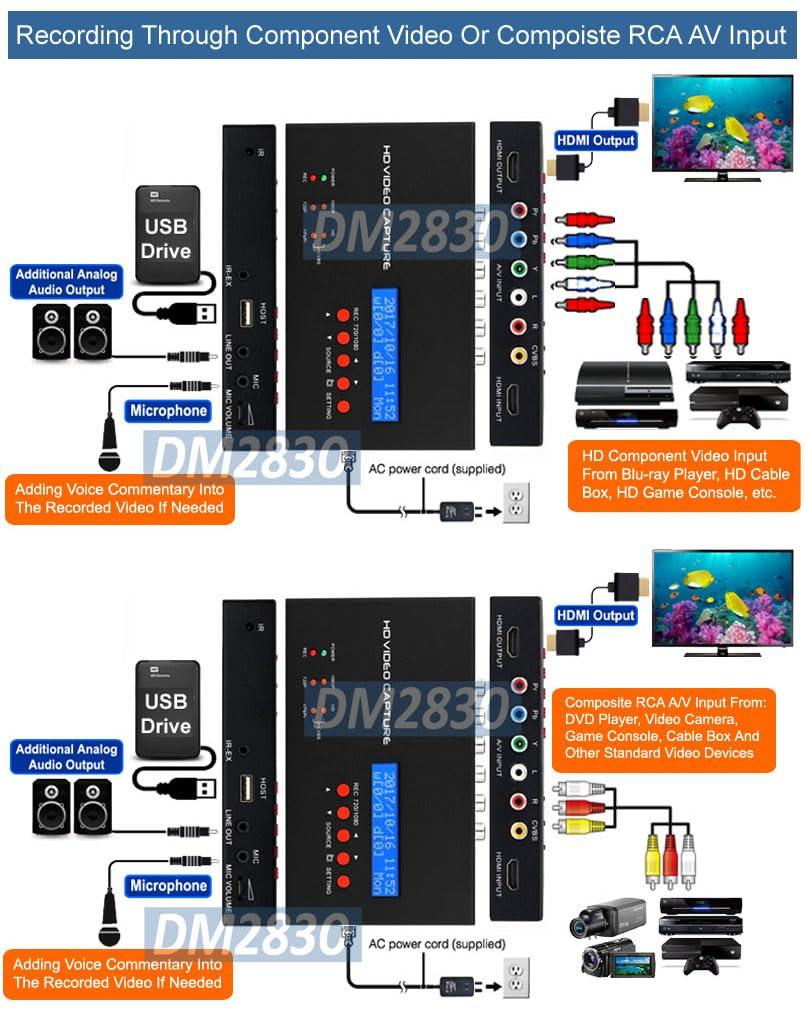

HD Component YPbPr + SD RCA Video Recording
Users can also use this HD DVR for recording component YPbPr video output or composite RCA video output from sources.
Scheduled Recording
This digital video recorder supports scheduled recording for one-time or repeated daily or weekly recording.
Users can set up the timer schedule from the LCD panel screen on the recorder for when to start and end the recording.
Users can program multiple recording tasks for daily or weekly recording.
Date-scheduled task only execute one time on any specified day. Weekly scheduling of recording allows users to program recording for one-time only.
