Description
- PWM and DRGB splitter
- Features six 3-pin channels for controlling digitally addressable RGB elements
- Features six 4-pin channels for controlling fans via PWM
- Power supply: via SATA power connector
- Dimensions: 95.92x49.91x14mm

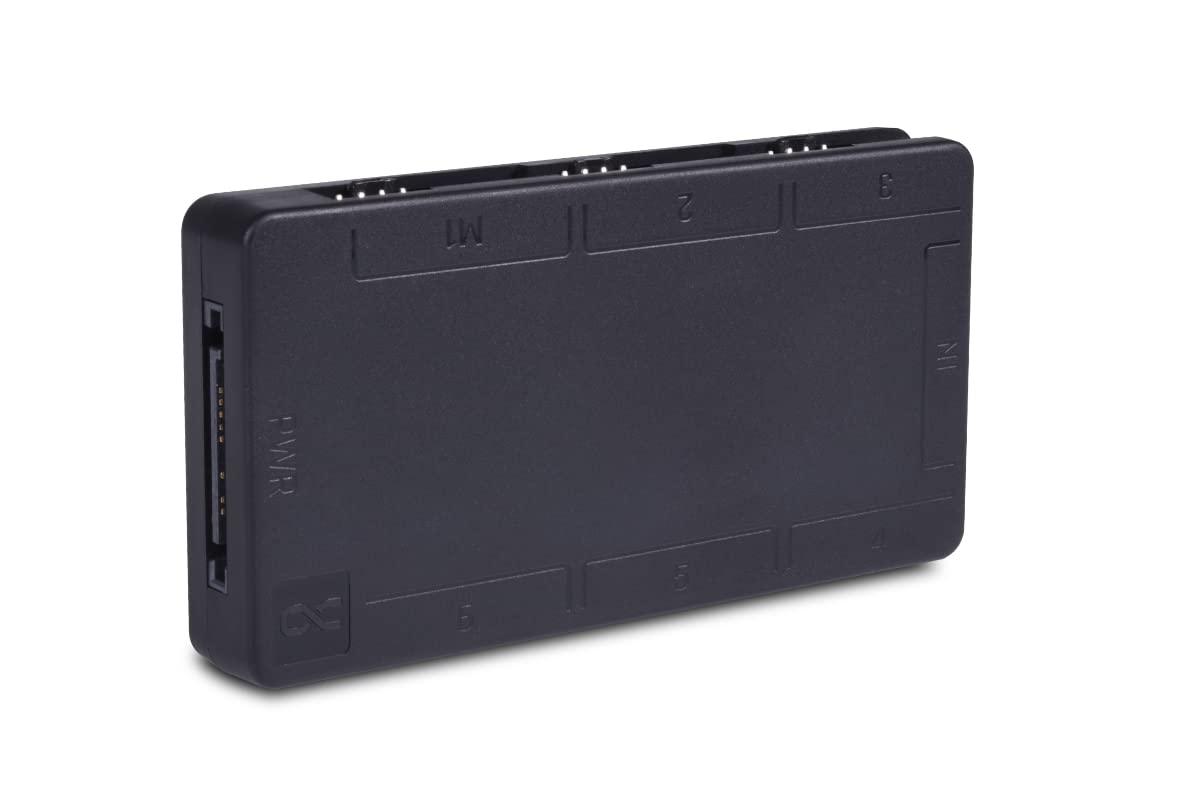

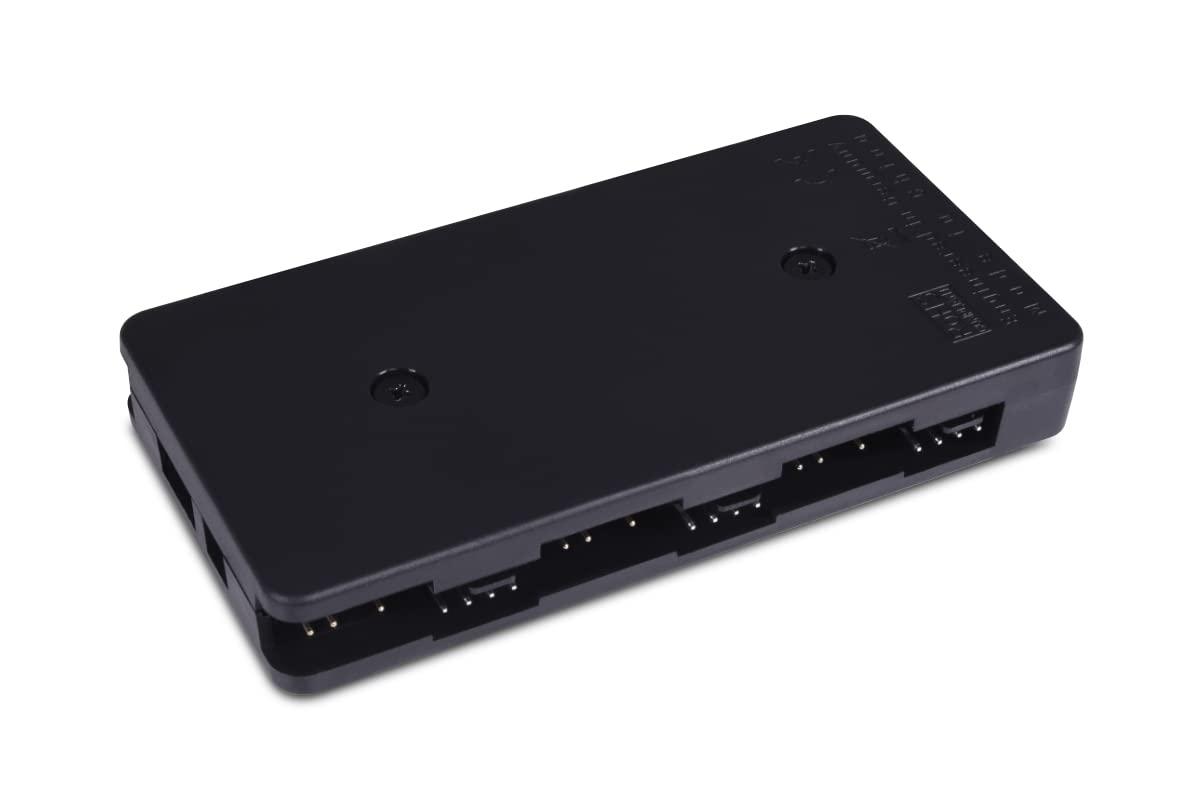

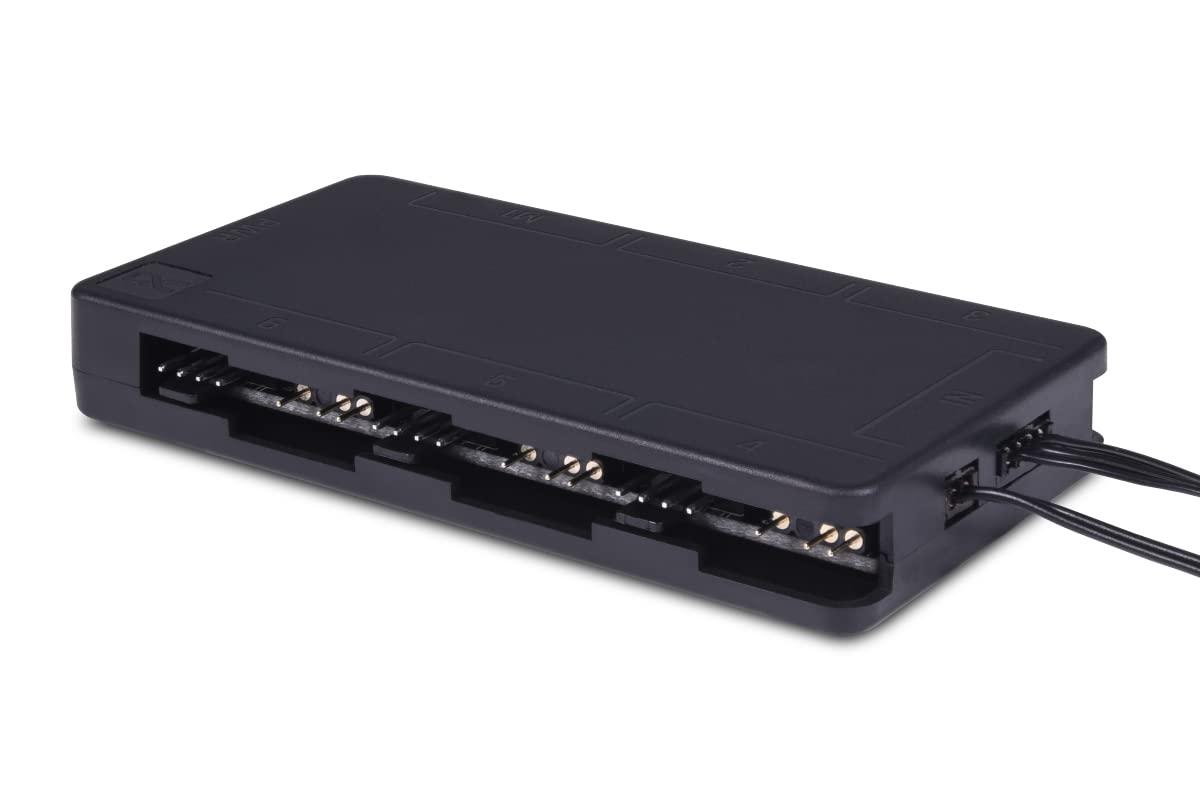

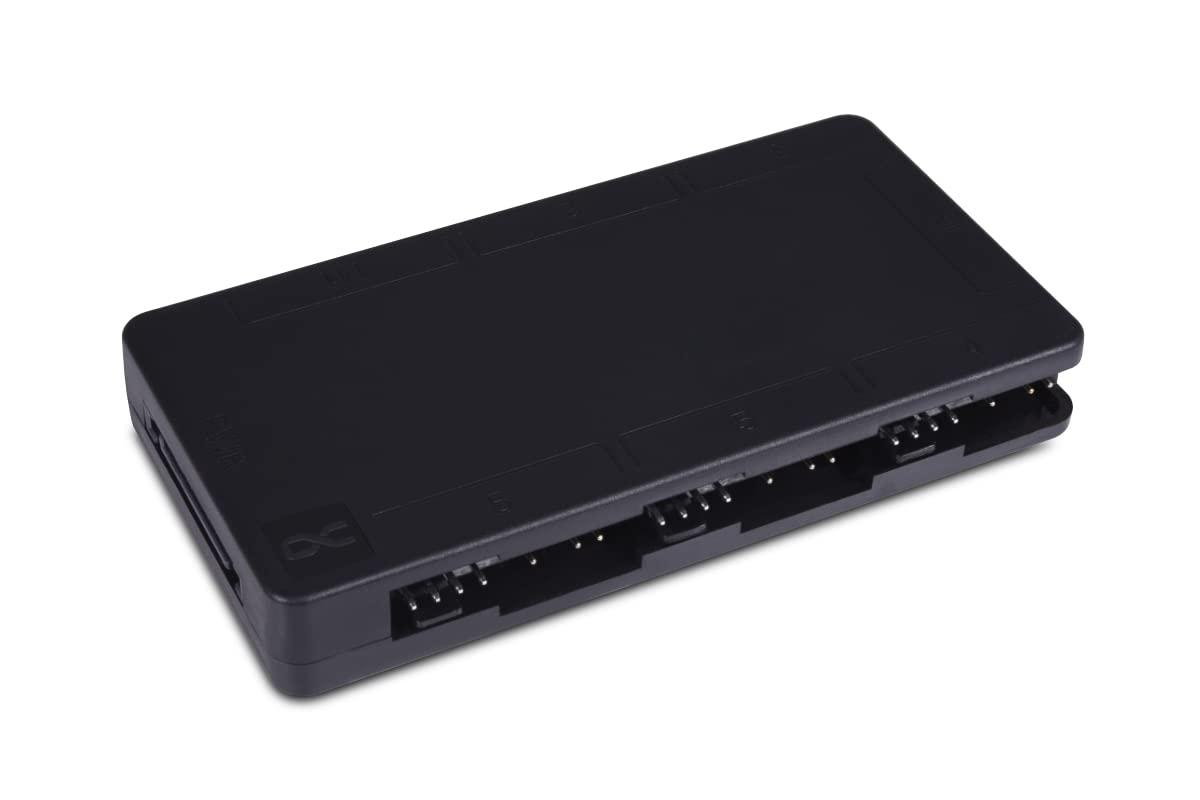

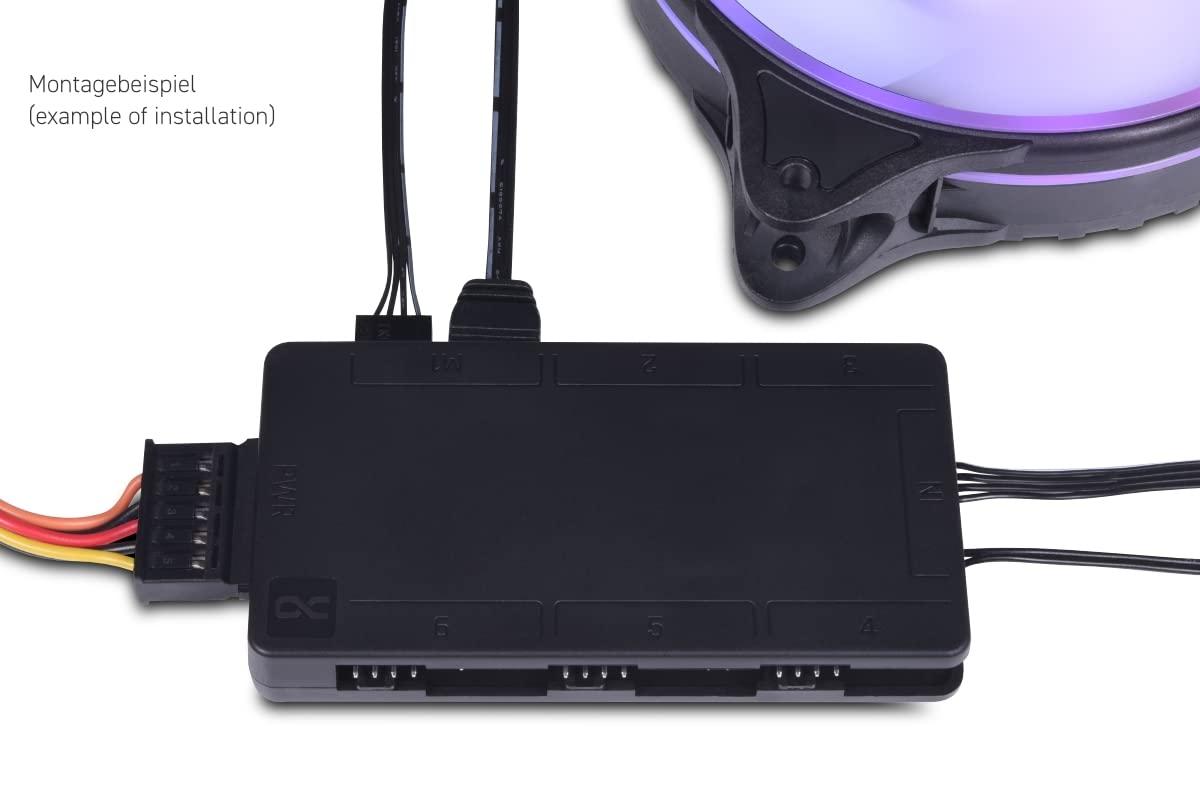

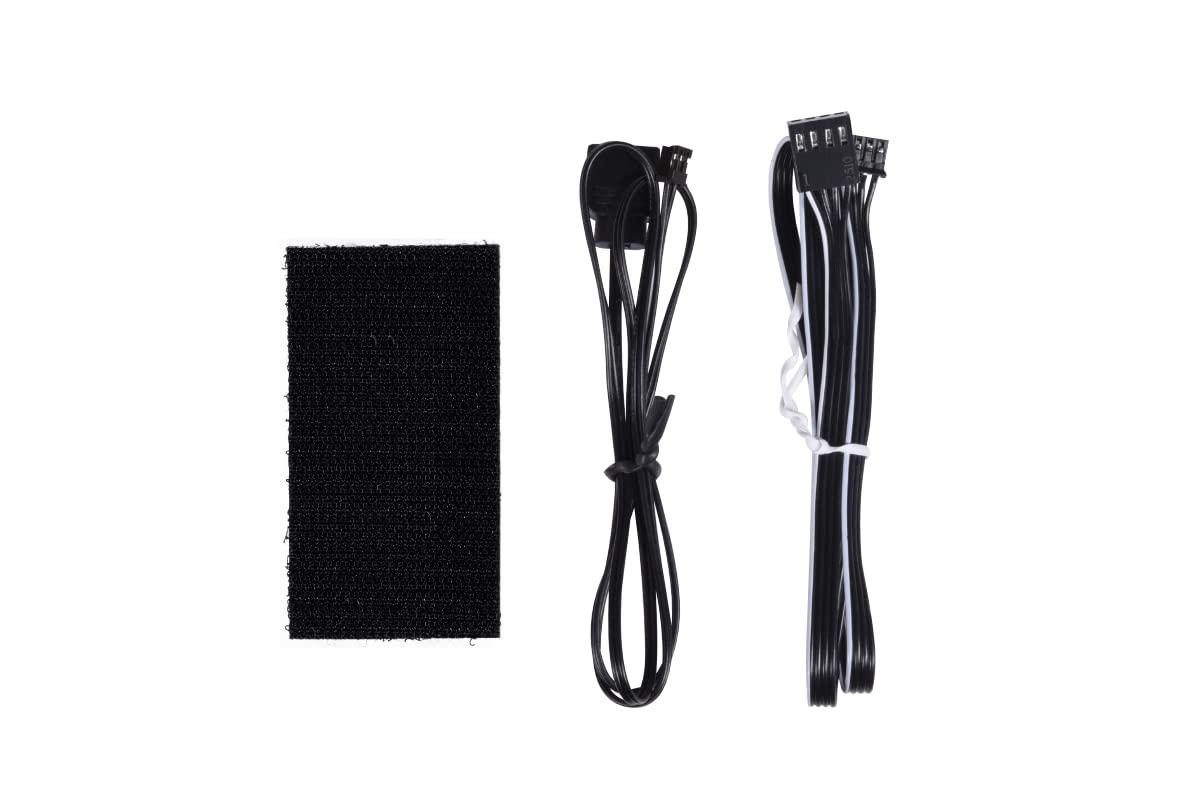

Alphacool's Core PWM/DRGB splitter has six 3-pin channels for controlling digitally addressable RGB elements and six 4-pin channels for controlling fans via PWM. The distributor is connected via an aRGB and PWM mainboard cable (included in delivery) via an internal header on the mainboard. A maximum of 6 aRGB illuminated fans with a total power consumption of 22.5W (4.5A) can be connected to the controller and thus supplied with sufficient power. Power is supplied via the SATA cable of the PC power supply. The speed of the connected fans and their aRGB settings are controlled via the master fan (M1 socket). A self-adhesive Velcro strip is included in the scope of delivery, which allows the Core PWM/DRGB splitter to be positioned anywhere in the case. Technical data Dimensions (L x W x H) 95.92x49.91x14mm power supply via SATA power connector connections 6x 4-pin PWM | 6x 3-pin aRGB (5V) | 1x SATA (5V) | 1x 2-pin (splitter IN) Maximum power consumption 22.5W (4.5A) Model: 25668
