Description

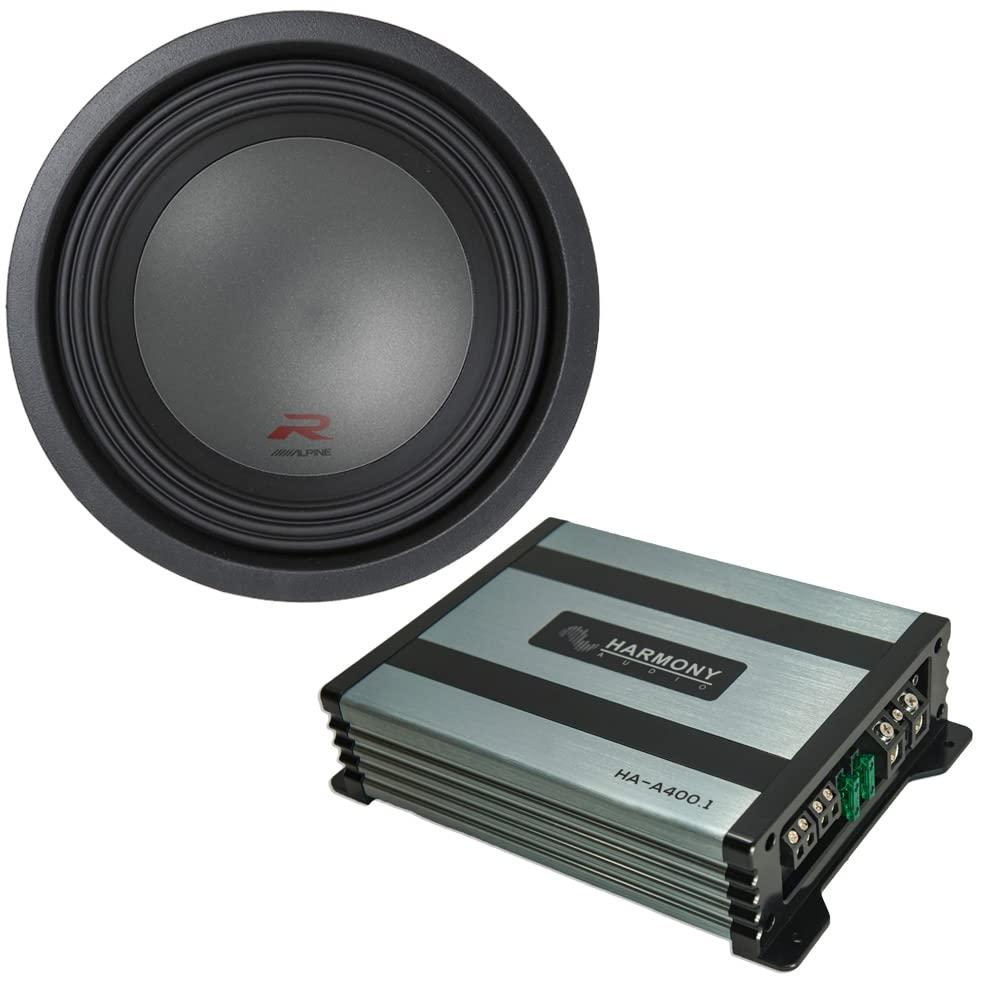

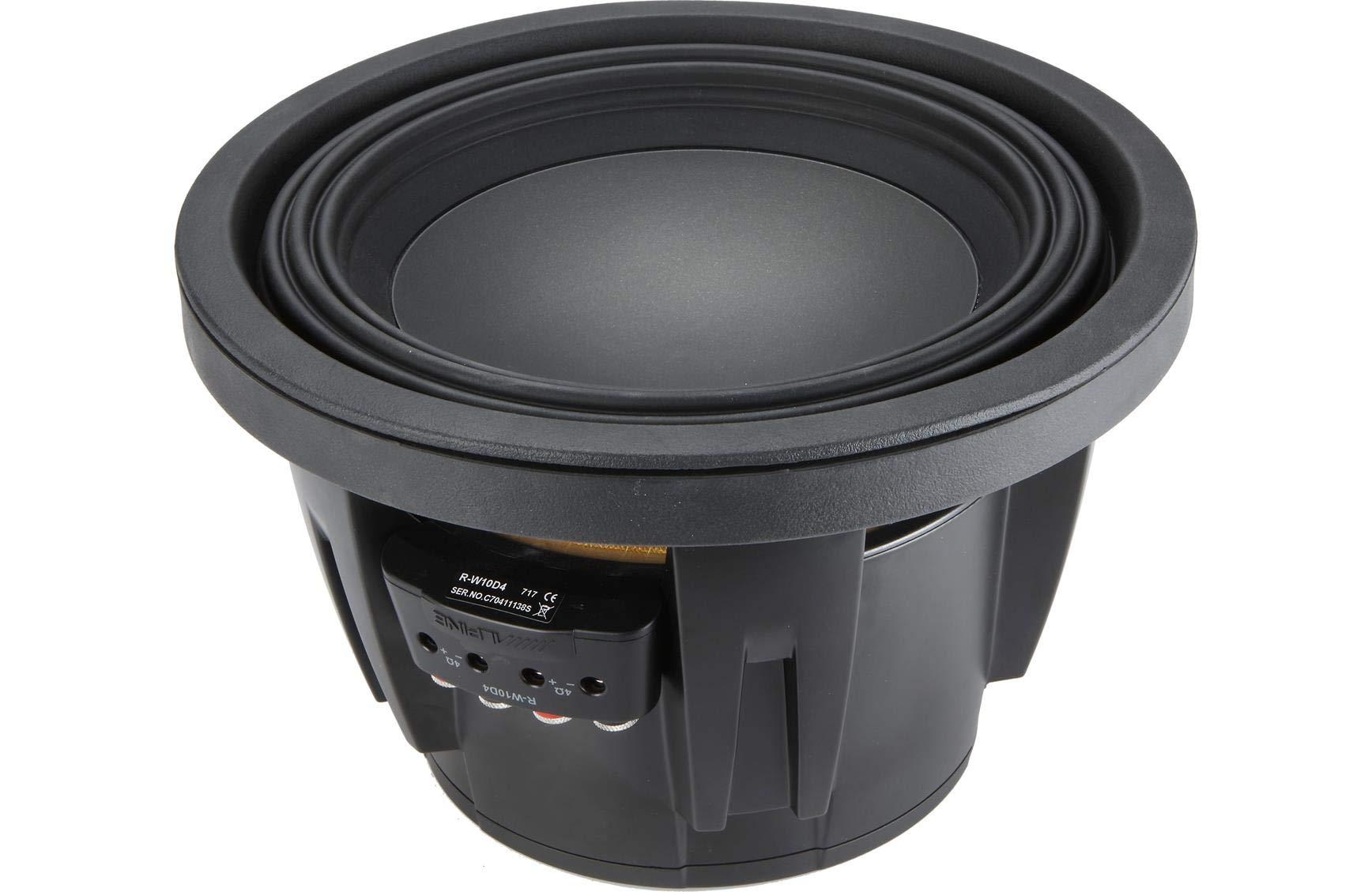

- 10" Dual 4 ohm Type-R Subwoofer
- 2250 Watts Peak/ 750 Watts RMS
- 8AWG push terminals with VC configuration jumpers
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Includes Harmony Audio HA-A400.1 Alloy Series Mono - 1 Channel Class D Amplifier

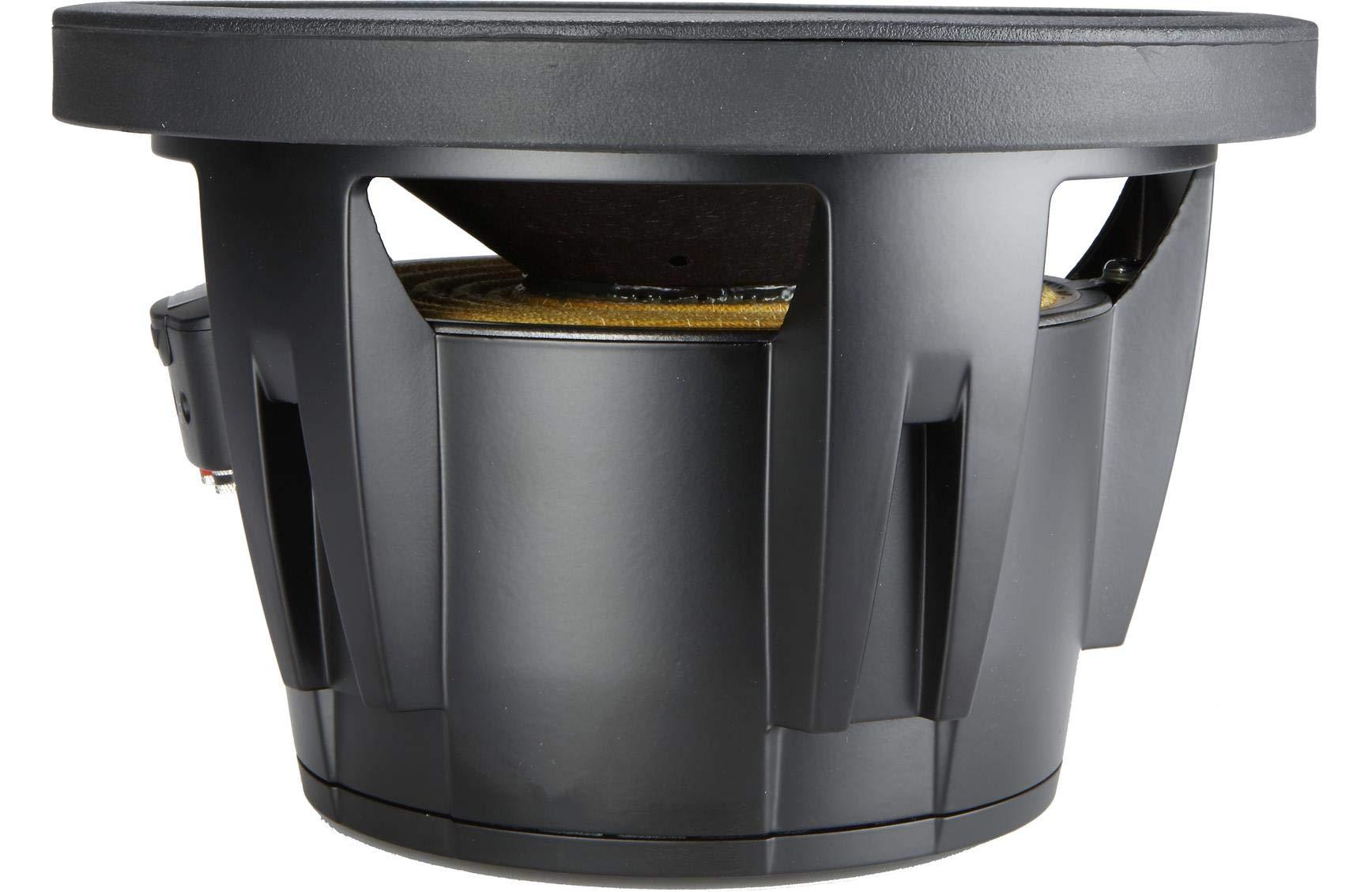

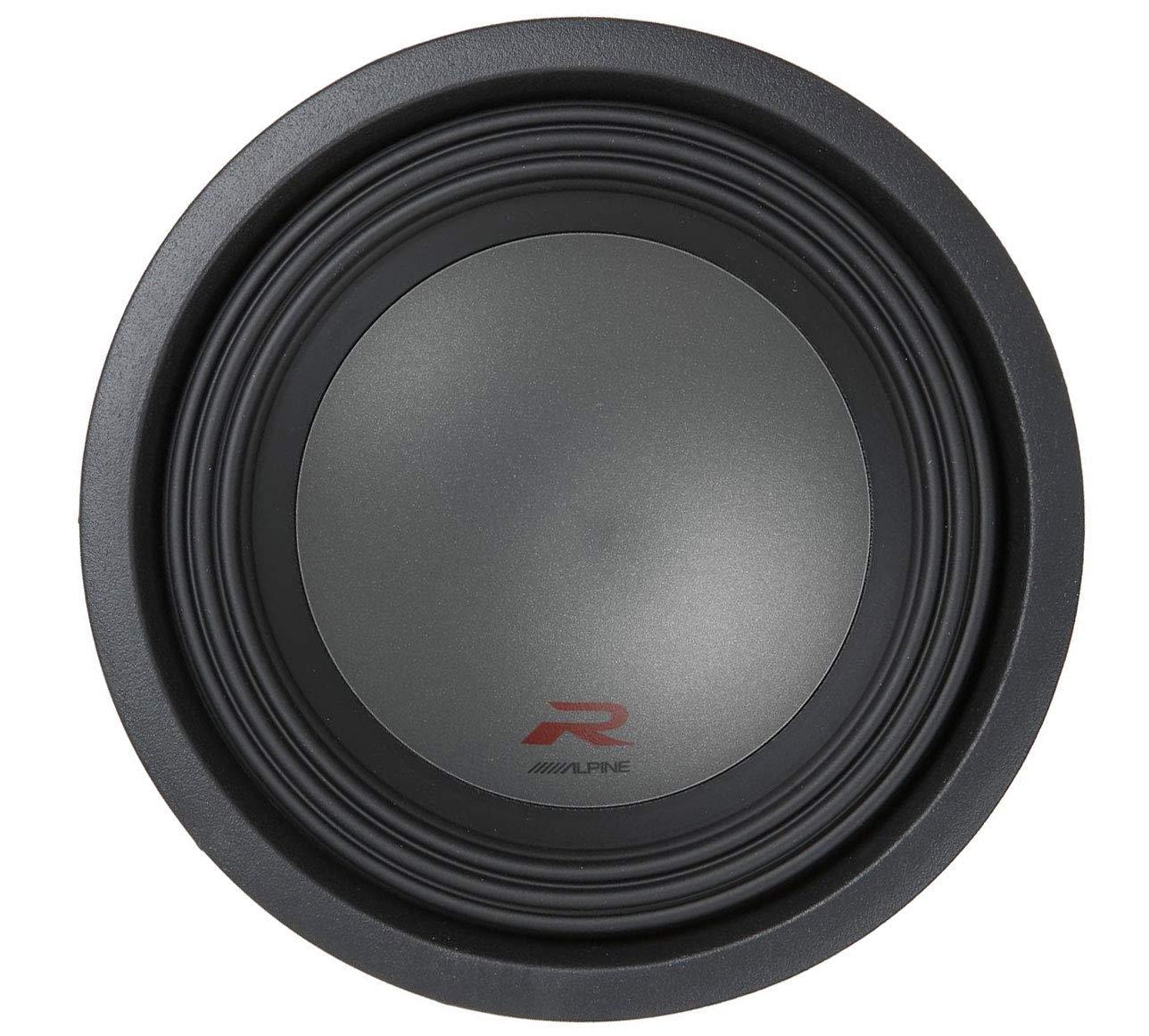

Alpine R-W10D4 10" Dual 4 ohm Type-R Subwoofer Specifications: Power Handling:Peak:2250watts/RMS:750watts Recommended power range:300-750W RMS CTA-2031 compliant power ratings Parabolic pulp/kevlar cone H.A.M.R. surround Polypropylene, mica and talc dust cap Reinforced cone neck and spider joint Cast aluminum frame with integral shorting sleeve 8AWG push terminals with VC configuration jumpers 2.6" High excursion overhung voice coil 111 oz. Strontium ferrite segmented magnet Top-mount depth:5-7/8" Cutout diameter:9-1/16" Frequency Response:26-200Hz Sensitivity:82.4dB Resonance Frequency (Fs):31Hz Subwoofer Series:Type-R (Alpine) Subwoofer Size:10" Peak Power Handling:2250 watts RMS Power Handling:750 watts Voice Coil(s):Dual Impedance (Per Voice Coil):4 ohms Voice Coil Diameter:2.6" Frequency Response:26-200 Hz Sensitivity:82.4 dB Xmax (millimeters):20 mm Main Cone Color:Black Woofer Composition:Kevlar Reinforced Pulp Paper

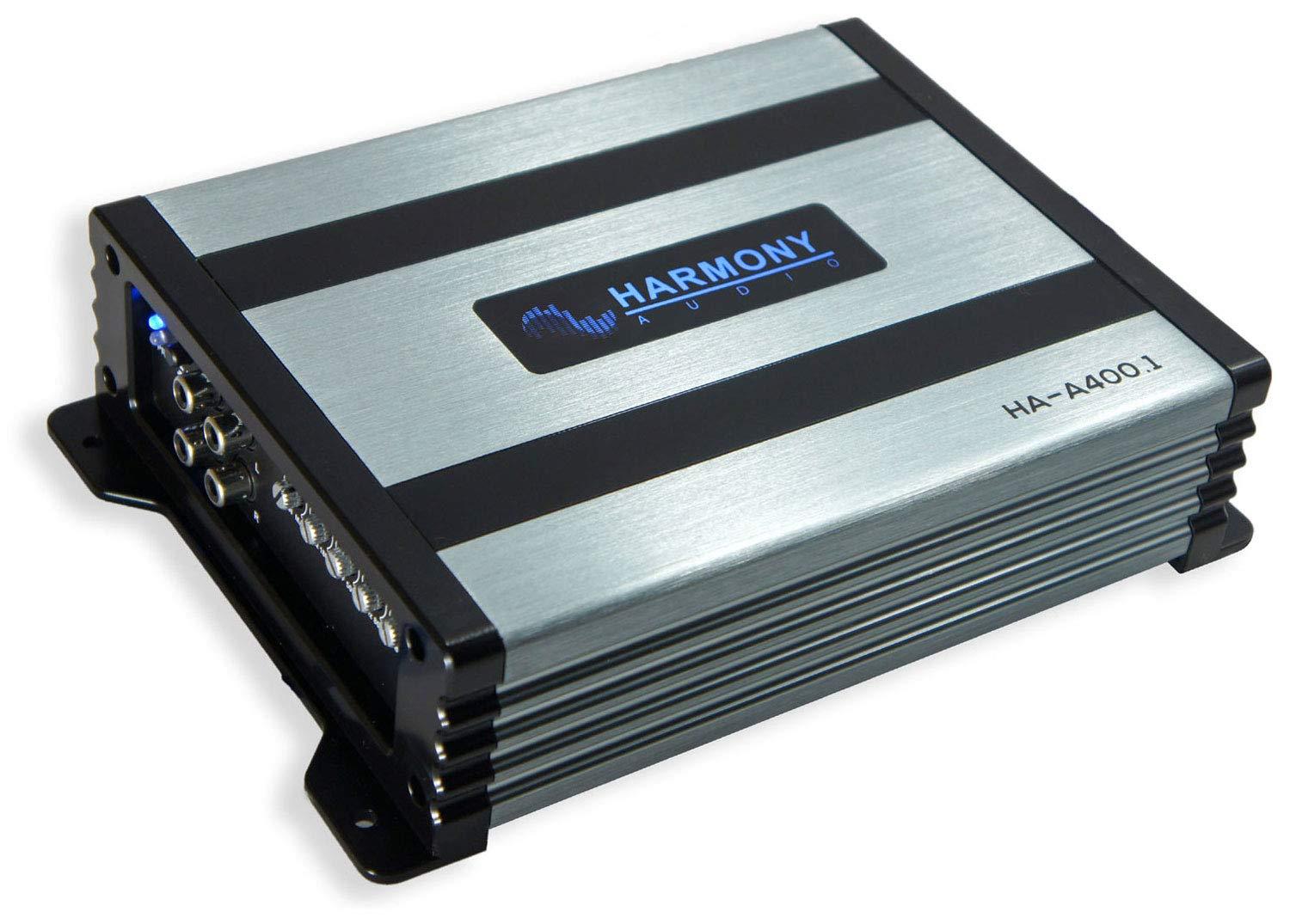

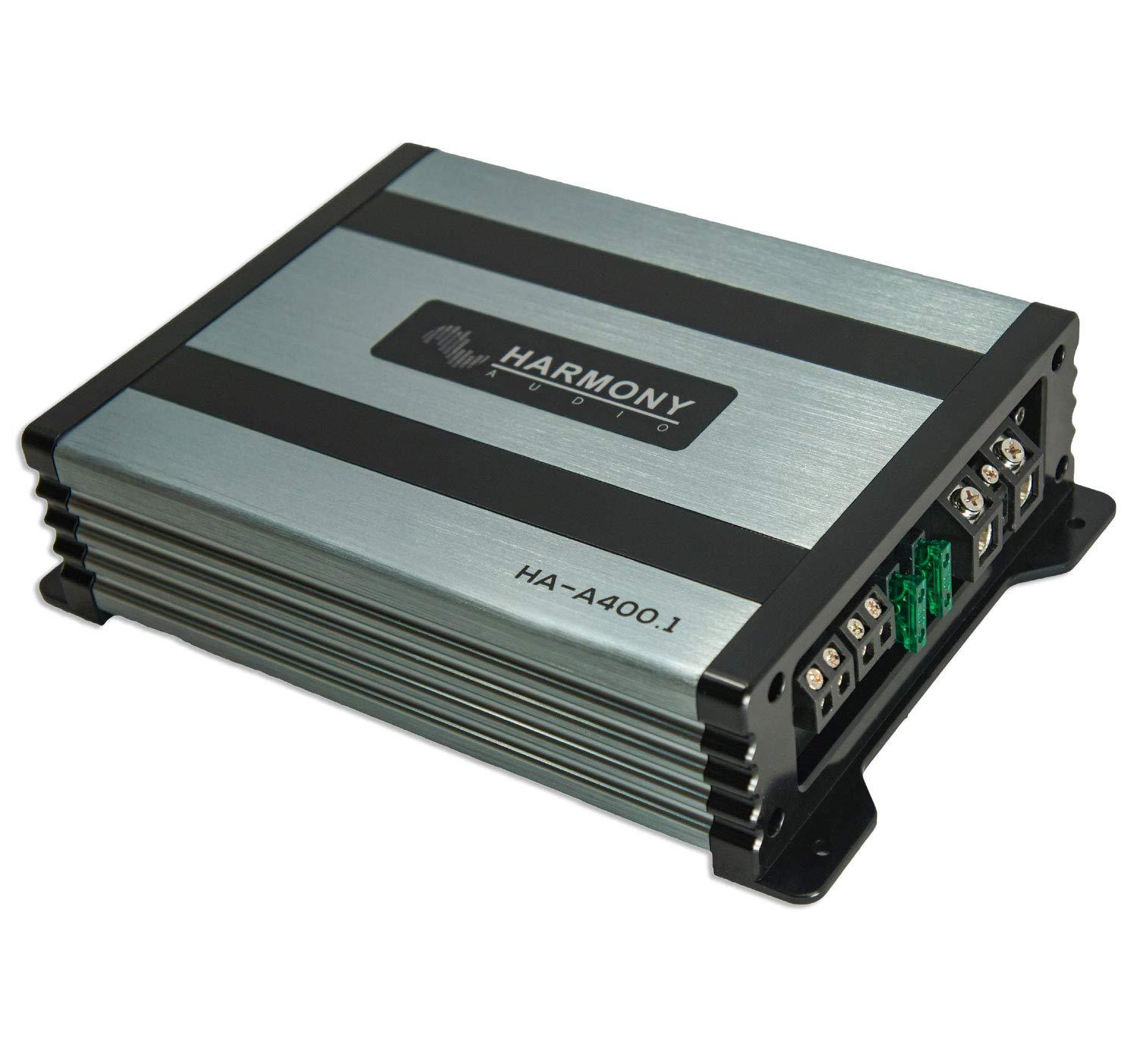

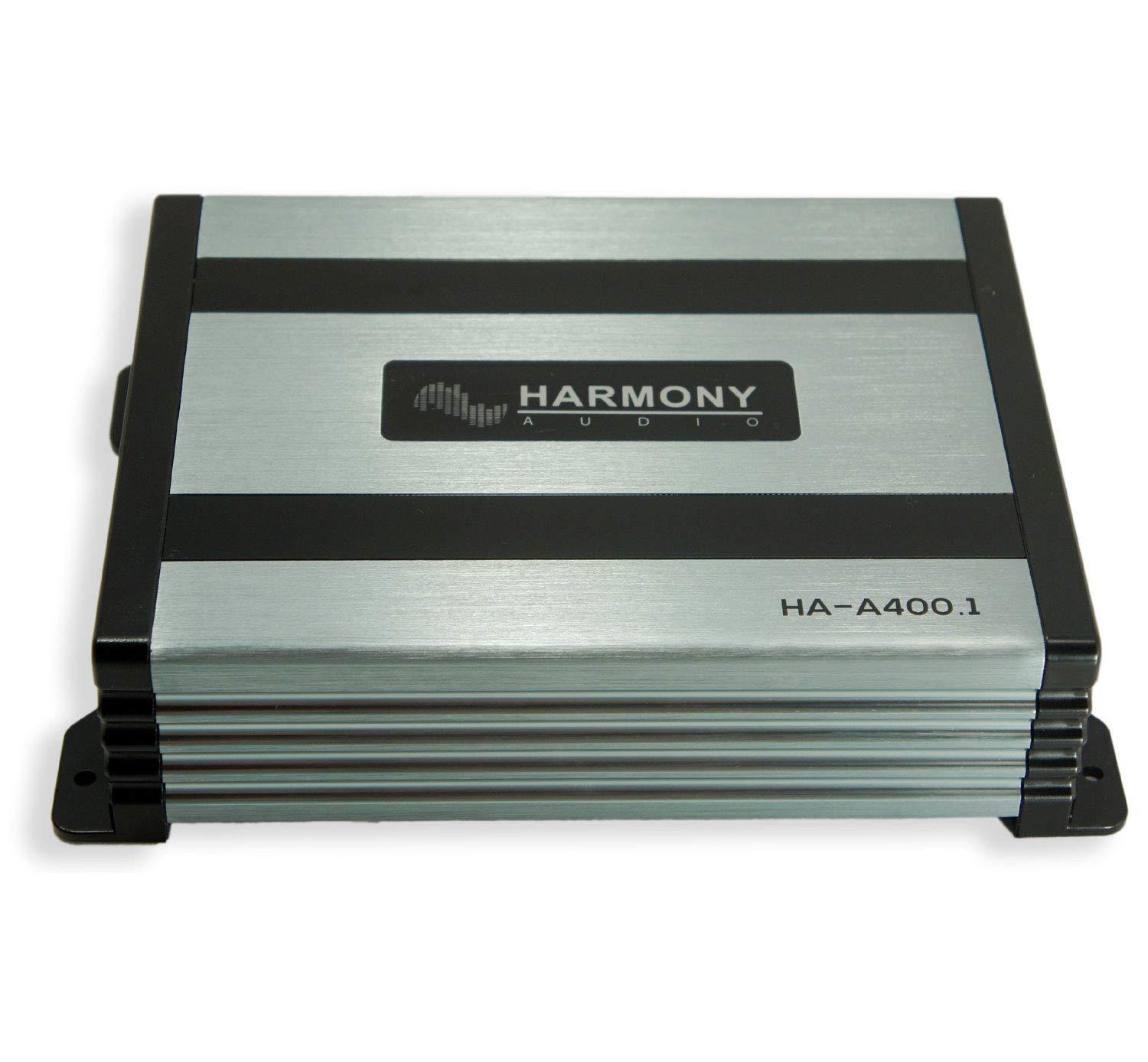

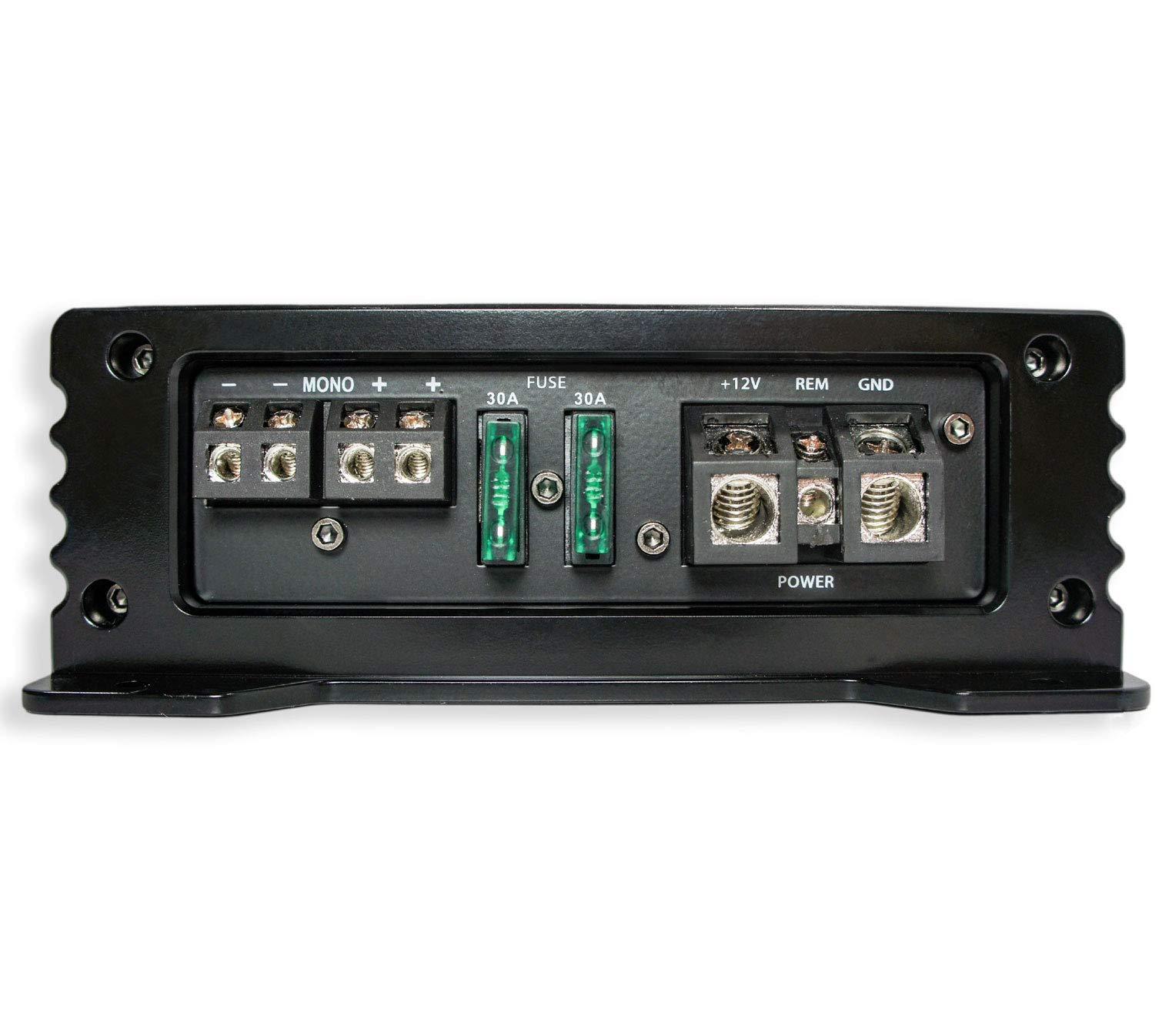

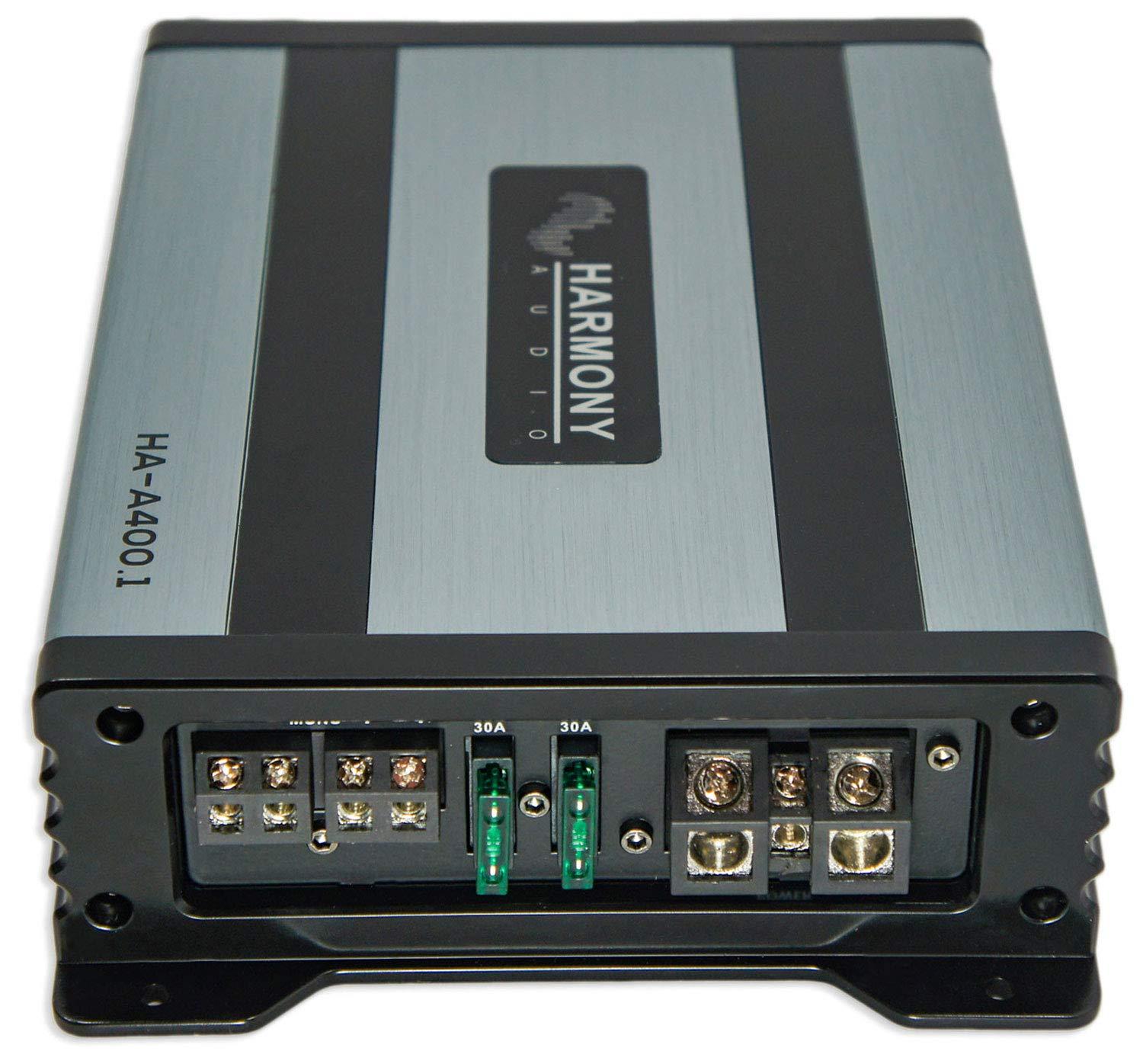

Harmony HA-A400.1 Mono Amplifier Specifications: Alloy Series Mono-1 Channel Class D Amplifier 14.4V @ 1 Ohm:400 Watts RMSx1/800 Watts PEAKx1 14.4V @ 2 Ohm:300 Watts RMSx1/600 Watts PEAKx1 Frequency Response:10Hz-180Hz Signal to Noise Ratio:95dB, A-weighted RCAs: Input and Full Pass Through Audio Output Turn On: DC Offset or 12V Remote Dimensions:9-3/16"Lengthx6-1/8"Widthx2"Height High Level Input Sensitivity:2.5V-40V Low Level Input Sensitivity:90mV-10V Gain:(Knob Variable) Low Pass Filter:40Hz-180Hz(Knob Variable) Subsonic Filter:0Hz-50Hz(Knob Variable) Frequency:30Hz-80Hz(Knob Variable) Bass Boost:0dB-12dB @ 50Hz(Knob Variable)
