Description
- Package Includes: (1) ALPINE X-A90V 900 Watt 5-Channel X-Series Car Audio Amplifier Class-D Amp. (1) ALPINE RUX-KNOB.2 Remote Control Bass Knob For Select Alpine Amplifiers Amps. Features: ALPINE X-A90V 900 Watt 5-Channel X-Series Car Audio Amplifier Class-D Amp. Alpine ID Sound Quality. Class-D Performance. Rotatable Illuminated Alpine Badge. Top-Side Control Panel. Built-in Crossover & Bass EQ
- Remote Bass (RUX-KNOB or RUX-KNOB.2) Compatible. Specifications: CTA-2006 Power Rating: 100W RMS x 4 + 500W x 1 (2<1% THD+N, 14.4V). 75W RMS x 4 + 300W x 1 (4<1% THD+N, 14.4V). S/N:90dBA (ref: 1W into 4. Dimensions: (W x L x H) 11.75" x 7 5/8" x 2". 5/3 channel operation. Speaker-level (high-level) inputs. 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers. Heavy duty aluminum alloy heat-sink. Input sensitivity: High level: .5 - 10V Low level: .2 - 4V. High level: .5 - 10V. Low level: .2 - 4V. Frequency Response: 4-channel: 10 - 60,000Hz Sub channel: 8 - 400Hz. 4-channel: 10 - 60,000Hz. Sub channel: 8 - 400Hz. Total Harmonic Distortion (THD): .07%. Signal to Noise Ratio: >105dB
- Variable high-pass filter: 50 - 400Hz, -24dB/octave. Variable low-pass filter: 50 - 400Hz, -24dB/octave. Subsonic filter: 8 - 40Hz. Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz. Fuse Rating: 30A x 3. Input sensitivity: High level: .5 - 10V. Low level: .2 - 4V. Frequency Response: 4-channel: 10 - 60,000Hz. Sub channel: 8 - 400Hz

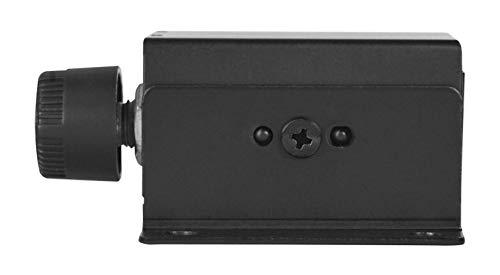

The optional RUX-KNOB.2 remote bass control knob plugs right in to select Alpine amplifiers for quick direct subwoofer control to make bass adjustments on the fly.
