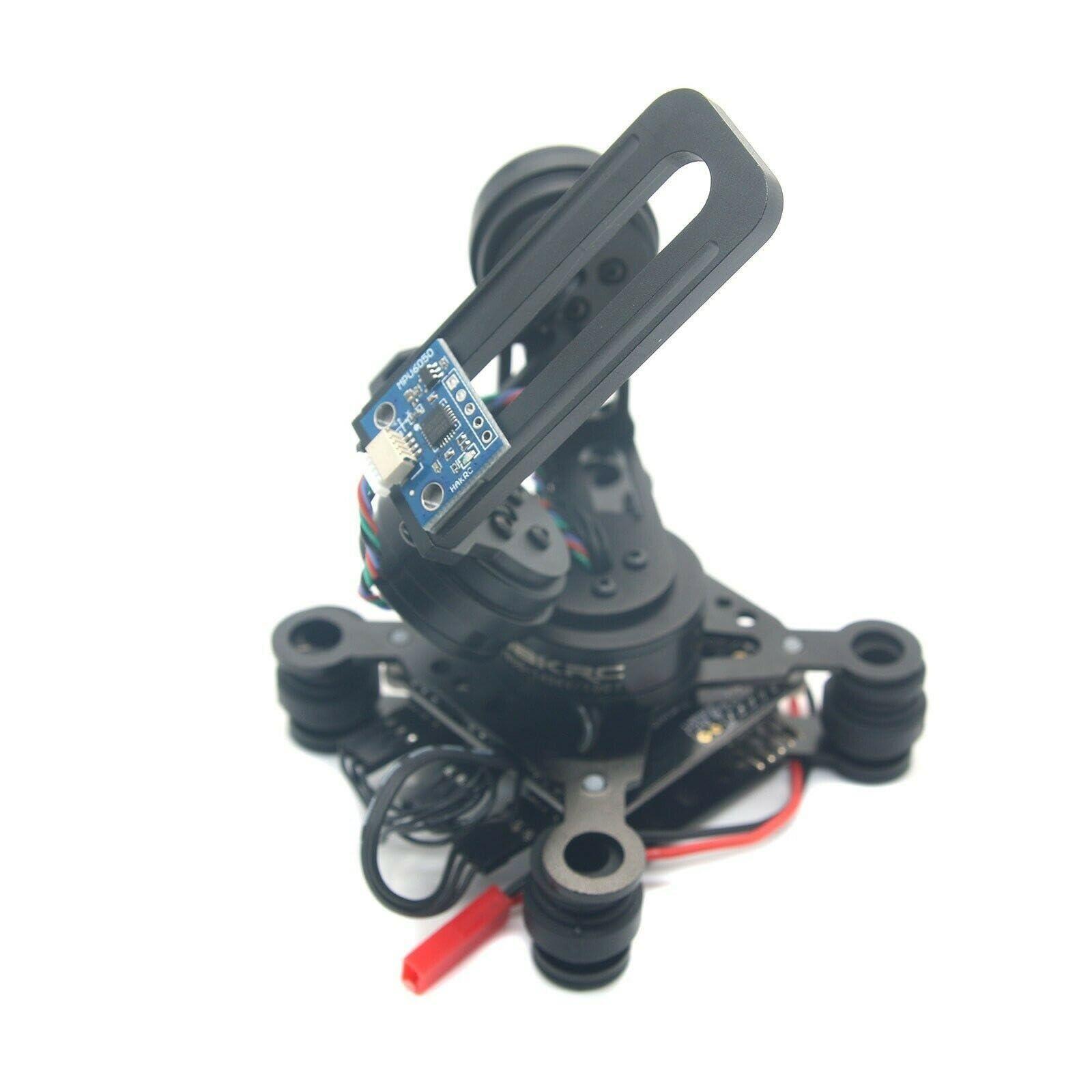

Description
- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible for Go 4 3,2,1
- With 3pcs 2804 160t motor
Features:
Simple structure and light weight,CNC aluminum alloy structure
Brushless motor direct drive
With anti-vibration rubber balls,easy to adjust
Compatible for Go 4 3,2,1
With 3pcs 2804 160t motor
With 32bit Storm32 firmware gimbal controller, sensor
With motor protector which can help heat dissipation
Specifications:
Power supply: 9-15V(3-4S)
Drive current: Max.1.5A
Height: 11cm
Color: Black
Features of Strom32 Gimbal Controller:
The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.
This version of the controller is our new direction in the development of the stabilizing solutions.
It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality.
32-bit MCU ARM Cortex M4.
Effectively calculates the complex tasks for 3-axis stabilization,700 times/seconds gyro caculates
Allows camera control with the RC or analog joystick.
Use several switchable profiles for different modes of operation
Control Pitch or roll by PWM or receiver,supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
Use IMU1 and on board IMU2 dual sensor module, lock YAW accuratly, stable performance
Support follow mode,lock mode,absolute mode or speed mode
Package includes:
1 x Aluminum gimbal installed 3 motors
1 x 32bit Storm32 Gimbal controller
1 x Sensor
Wiring
