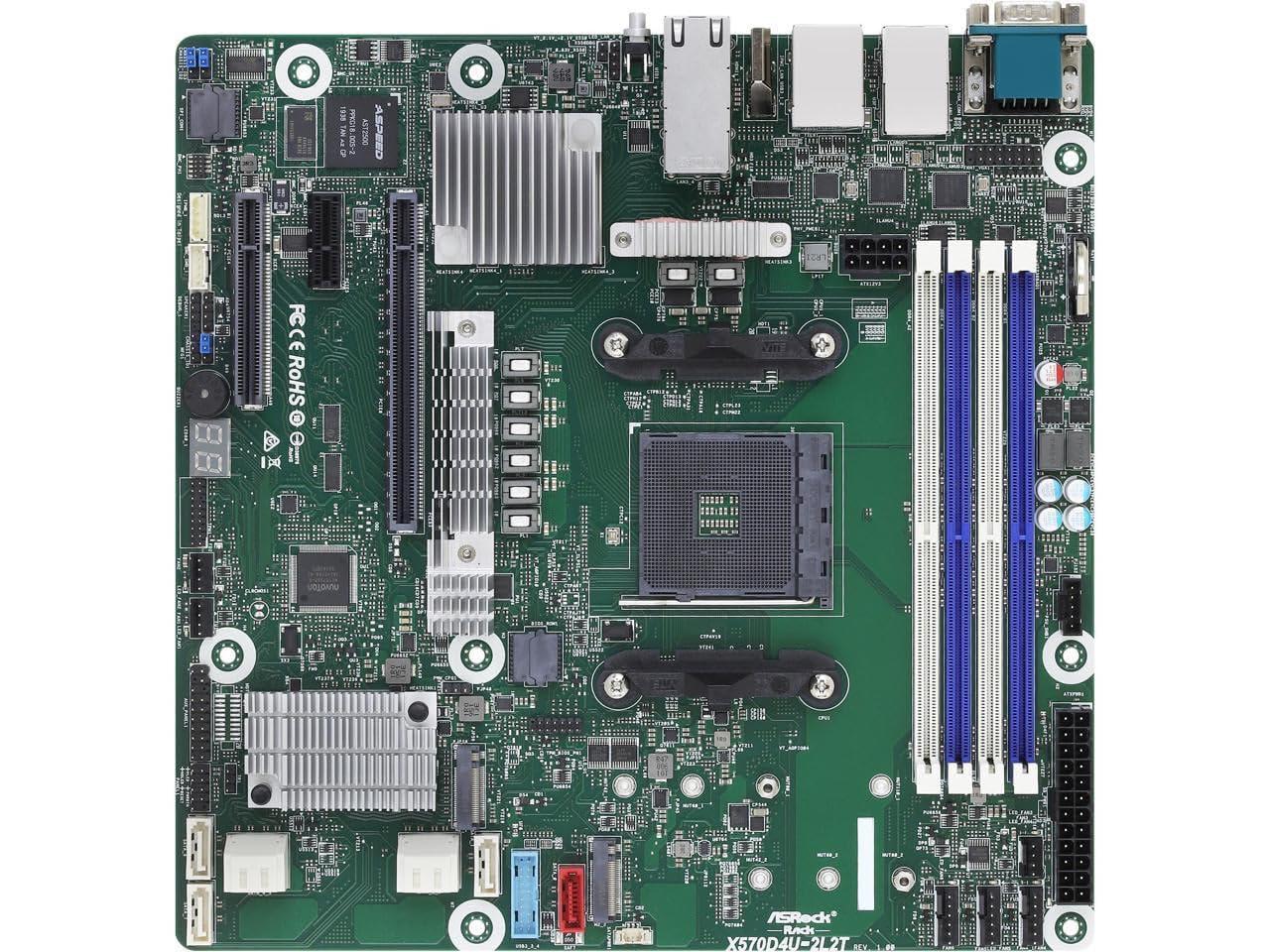

Description
- 288-pin DDR4 ECC and non-ECC UDIMM
- ECC support varies by CPU
- 3rd Gen AMD Ryzen Processors up to 3200 MHz
- 2nd Gen AMD Ryzen Processors with Radeon Graphics up to 2666 MHzExpansion Slot:
- SLOT6 Latch PCIe x16 (PCIe 4.0 x16) [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied
Every home needs an electronics expert, someone who can decide if it makes sense to buy the latest equipments. If you are a gadget freak, our Electronics catalog is your dream destination. System Memory. 288pin DDR4 ECC and nonECC UDIMM. ECC support varies by CPU. 3rd Gen AMD Ryzen Processors up to 3200 MHz. 2nd Gen AMD Ryzen Processors with Radeon Graphics up to 2666 MHzExpansion Slot. SLOT6 Latch PCIe x16 PCIe 4.0 x16 CPU, auto switch to PCIe4.0 x8 when SLOT4 is occupied. Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics. SLOT4 Openend PCIe x8 PCIe 4.0 x8 CPU. Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics. SLOT5 PCIe 4.0 x1. Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics. 1 Mkey PCIe4.0 x4 or SATA 6Gb/s Form factor 22110/2280/2260/2242 CPU. 1 Mkey PCIe4.0 x4 or SATA 6Gb/s Form factor 2280/2260/2242 X570Storage. X570 12 SATA 6Gb/s, support RAID 0/1/10. 8 SATA 7pin connectors, including 1 support SATA DOM. 4 SATA via optional M2HD M.2 deviceEthernet. 2 RJ45 10GbE by Intel X550AT2. 2 RJ45 1GbE by Intel i210Management. ASPEED AST2500 IPMI Intelligent Platform Management Interface 2.0. 1 x Realtek RTL8211E for dedicated management GLAN. Fan Tachometer. Quiet Fan Allow Chassis Fan Speed AutoAdjust by CPU Temperature. Fan MultiSpeed ControlSpecifications. CPU Supports 3rd Gen AMD Ryzen Processors and 2nd Gen AMD Ryzen Processors with Radeon Graphics. Socket AM4 PGA 1331. Power Design 105W. Chipset AMD X570. Capacity 4 DIMM slots 2DPC. BMC Controller ASPEED AST2500 IPMI Intelligent Platform Management Interface 2.0. IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN. HDMI 1. VGA Port 1. USB 3.2 Gen2 Port 2. Lan Port 2 RJ451GbE, 2 RJ45 10GbE. Dedicate LAN 1. Serial Port 1. UID Button/UID LED 1. Front Lan LED Connector 1 for LAN3/LAN4. Auxiliary Panel Header 1 18pin chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus. TR1 Header 1. TPM Header 1 1
