Description
- Universal TV tuner design supports worldwide RF frequencies for all NTSC, PAL B/G/D/K/I, PAL-M, PAL-N systems. Easy add-on TV tuner module for all VGA-based monitor or projector without coax input. Decoding RF coax signals from cable outlet, satellite box, RF modulator or CCTV surveillance camera system to sharp VGA pixels for display.
- 3 selectable video inputs: RF/Coax, RCA A/V and VGA ipnut/pass through. Excellent video to VGA converter for converting interlaced video into progressive VGA type for great video clarity and sharpness. Selectable 7-level VGA RGBHV output resolutions with maximum output up to 1920 x 1200 and 1920 x 1080 pixels.
- Supports Picture-In-Picture function for watching cable TV or video from a sub-window while the compute takes the main screen. PIP TV video sub-window can be resized from 1/16, 1/9, 1/4 screen or full screen display. PIP window screen location can be re-positioned to anywhere on the monitor screen. Premium motion adaptive de-interlacer built in for minimizing jagged edges noticed on big screen.
- Provides crisp and clear images with true and brilliant color definition. Adjustable controls of video color elements for brightness, contrast, hue, saturation, color temperature and picture modes. Supports all NTSC and PAL systems with automatic video mode detection.

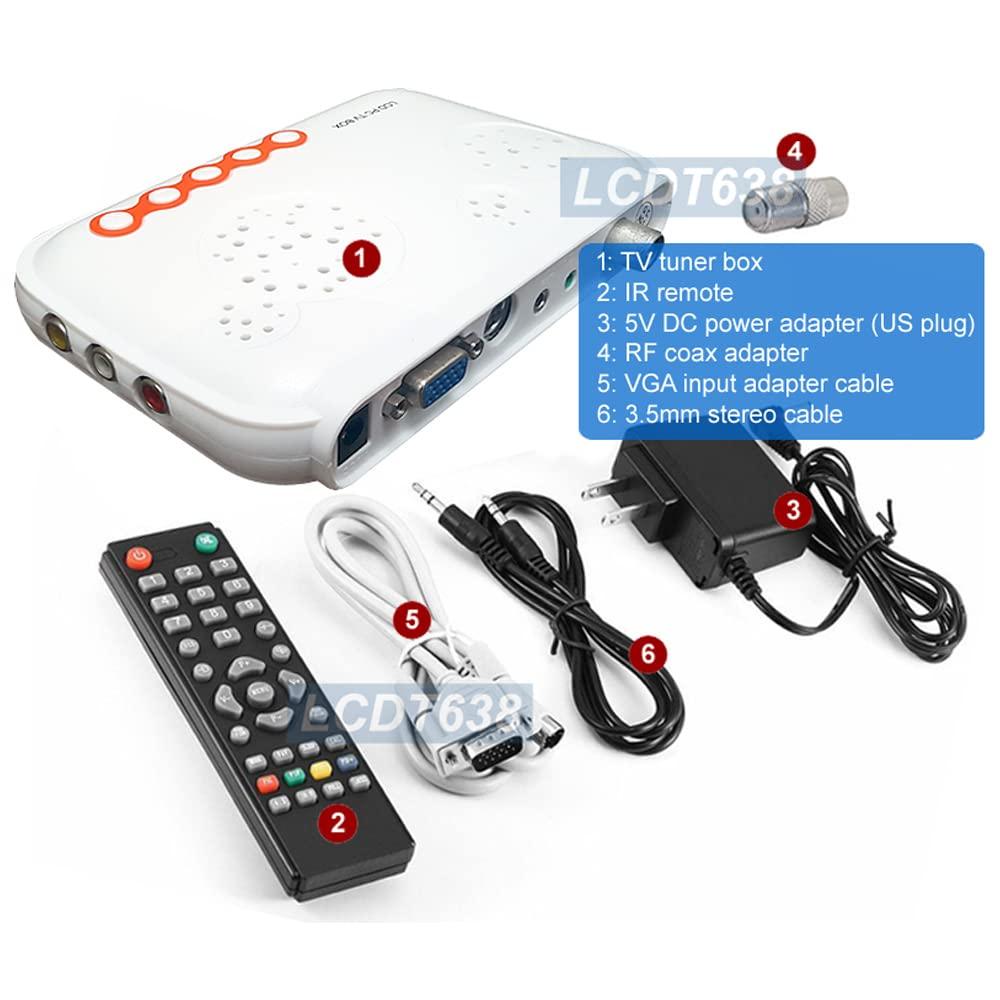

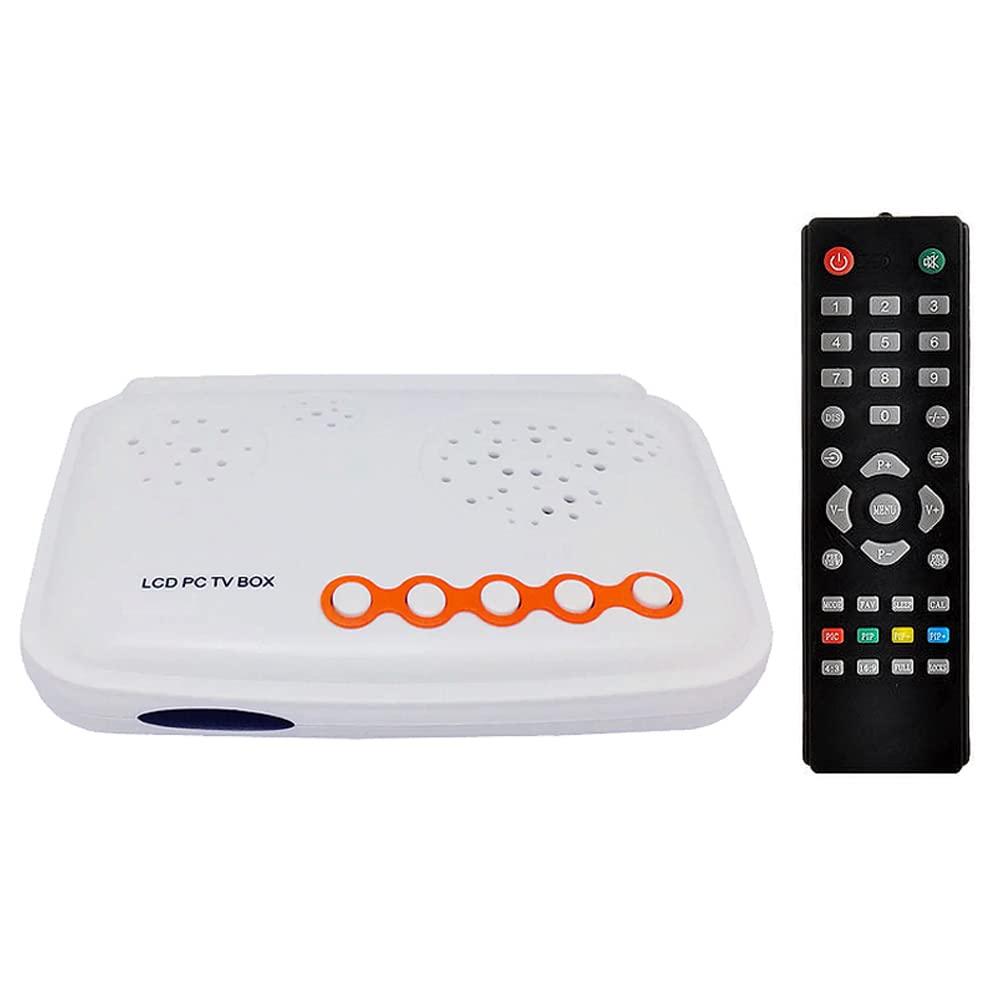

- Full-function IR remote controller. Featured with internal speaker for direct audio output. Easy operation by IR remote provided or manual push buttons on the converter unit.
This TV video converter switch is an easy add-on tuner module for those LCD monitors projectors that do not have TV tuner built in or LCD TV with broken RF terminals.
It can demodulate the RF outputs from all coax video sources such as cable set top boxes, video modulators, surveillance DVR systems and so on.
This RF TV demodulator can also be used for decoding the RF TV out from satellite receiver.
Multi-Format Analog Video To VGA Scaler Switcher

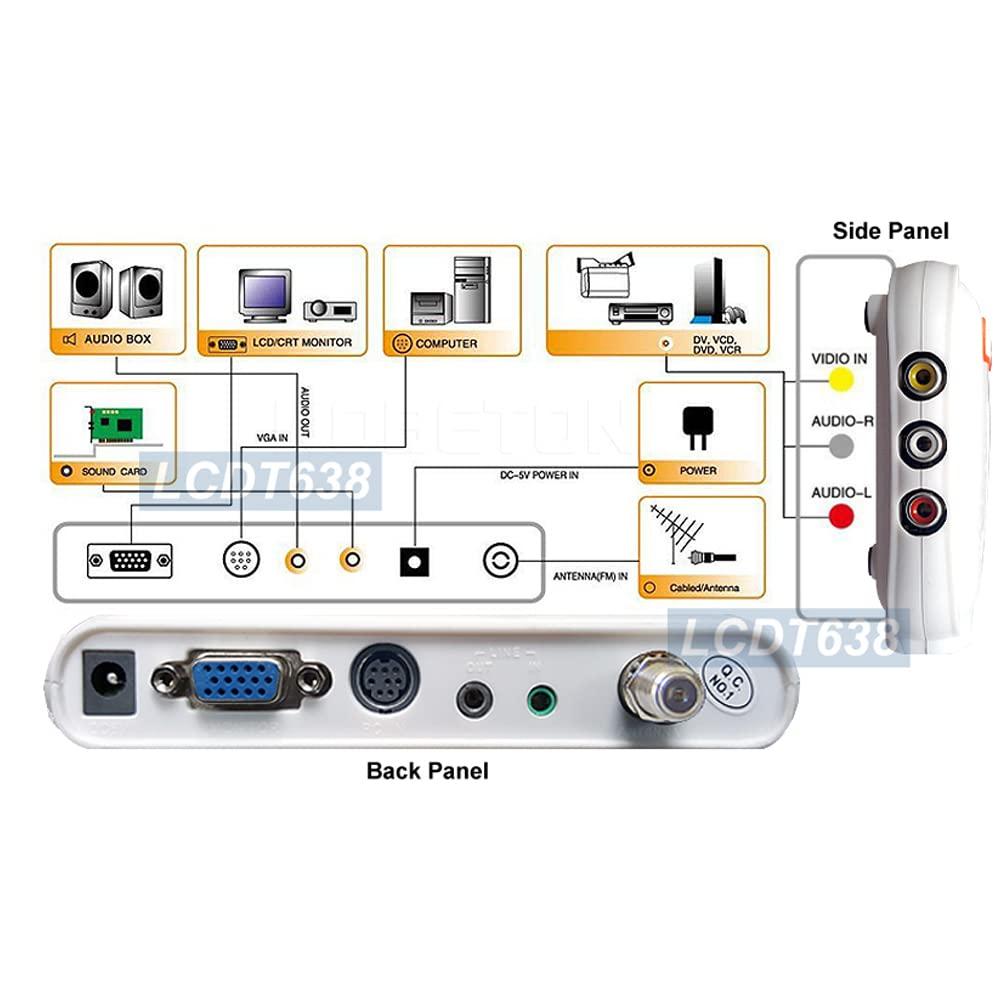

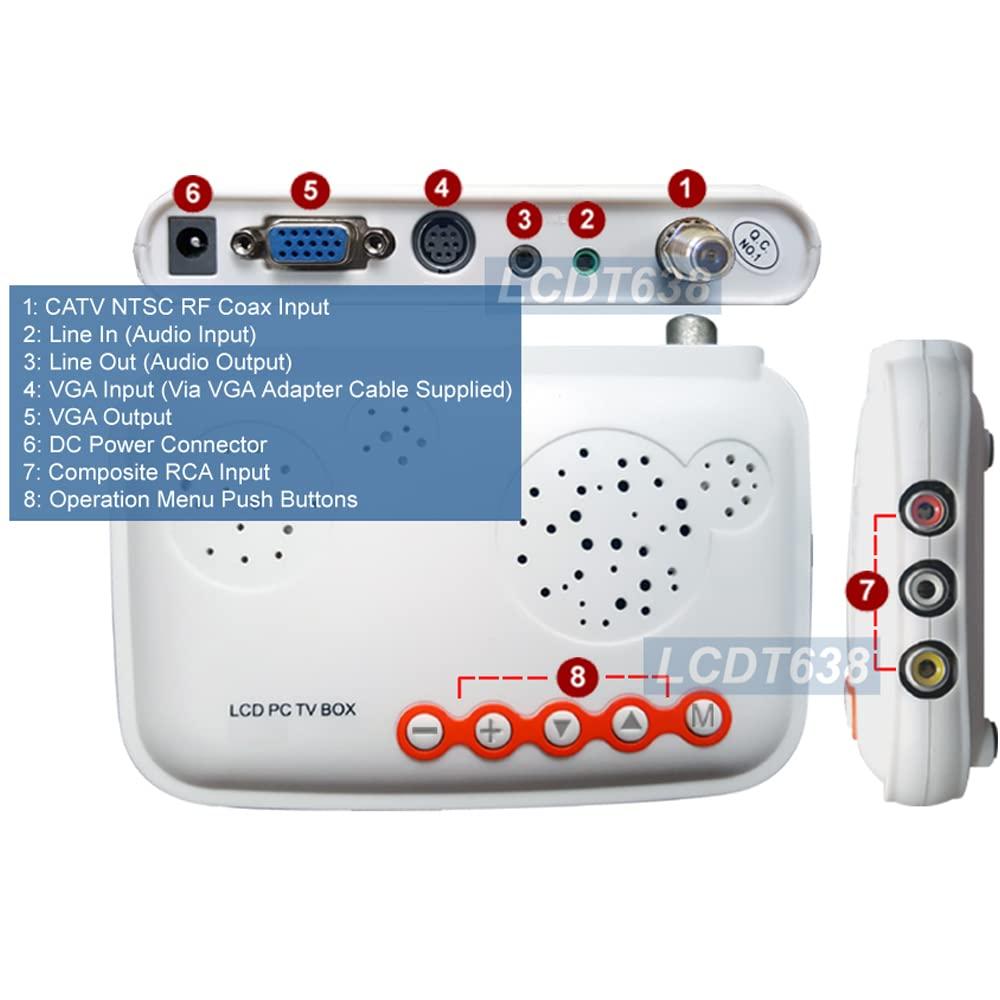

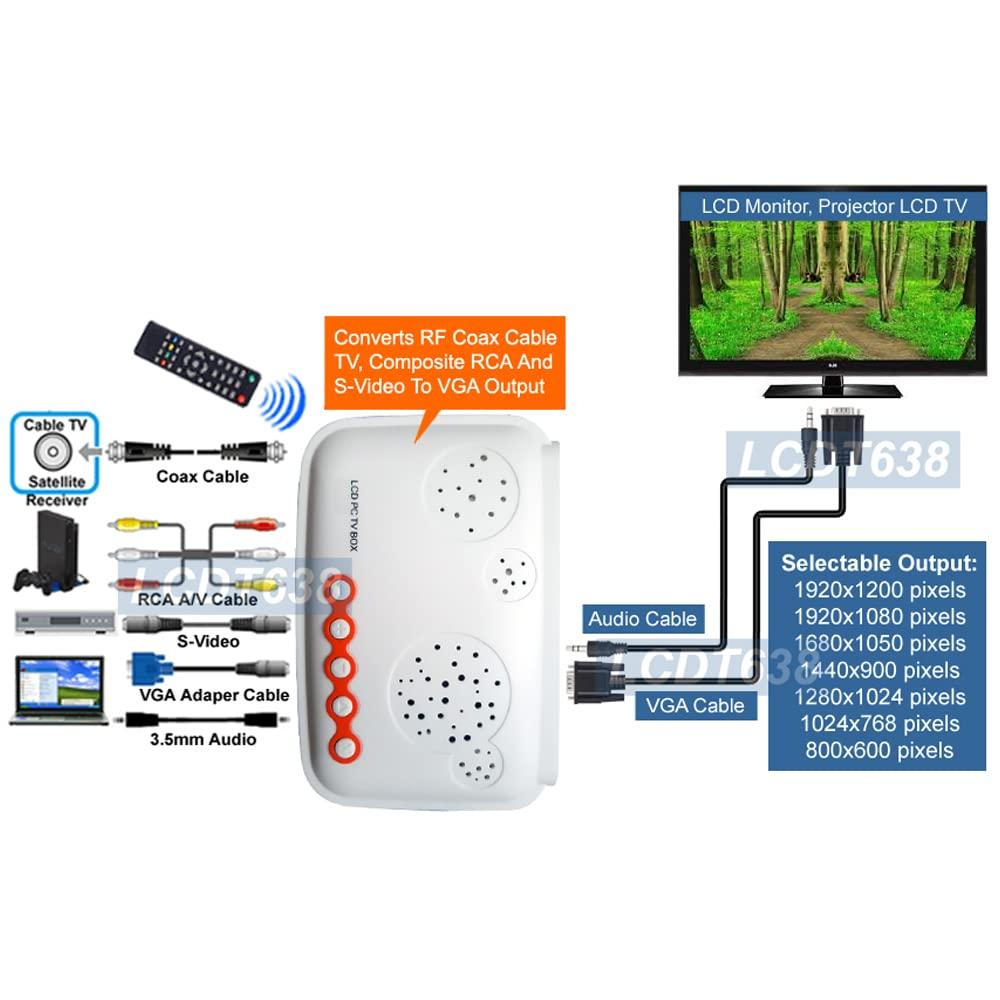

This multi-function TV video converter unit supports total of 3 video inputs including RF coax, RCA A/V and VGA input.
It expands the VGA display with video/audio inputs like what a TV has.

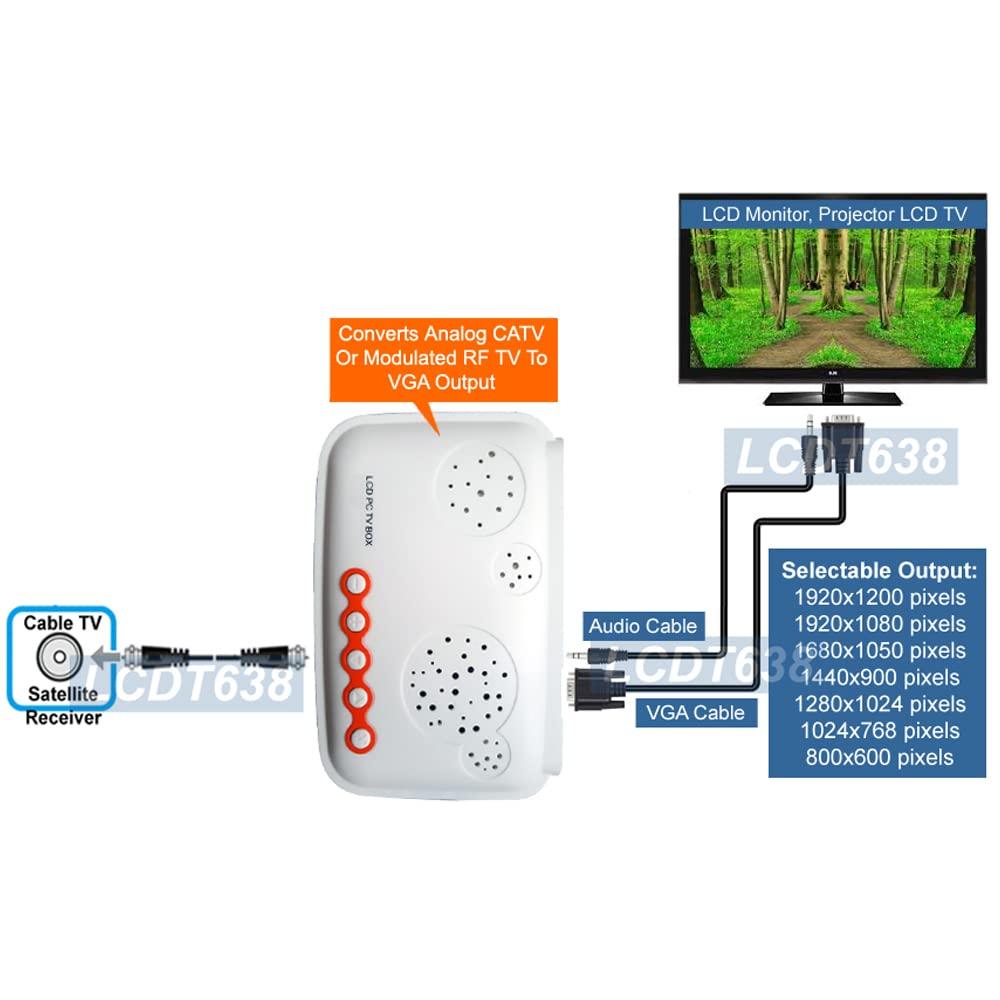

This unit is great for various applications including: RF Coax CATV To VGA: decode analog cable TV channels or the satellite coax output to 1920x1080/1920x1200 VGA pixels. Composite RCA To VGA: up-convert composite RCA video to 1920x1080 or 1920x1200 VGA pixels. Audio/Video Switch: easy IR remote control for selecting desired RF TV input or RCA video input from sources connected for presentation.

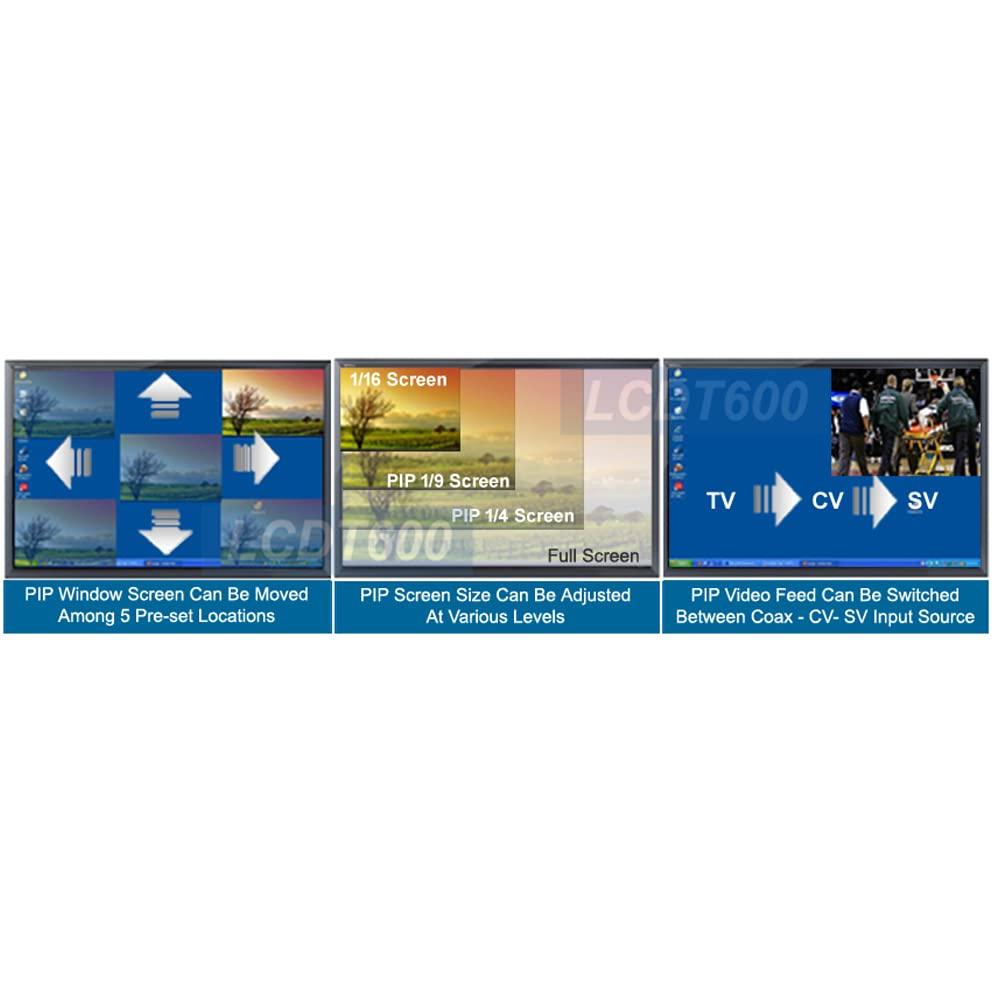

Real-Time Picture-In-Picture Video Processor
This unit allows users to use a regular LCD monitor or projector to display TV channel, DVD movie, surveillance cam while using computer for internet or other tasks at the same time on one screen as picture-in-picture (PIP).
The available PIP control functions includes: PIP Input Selection: Select the desired input video source (TV channel, RCA, VGA) to be displayed on the video sub-window on the monitor. PIP Size: Users can re-size the PIP video window screen at 1/16, 1/9, 1/4 or full screen display. PIP Location: The PIP video window can be moved around the VGA monitor screen through IR remote.
