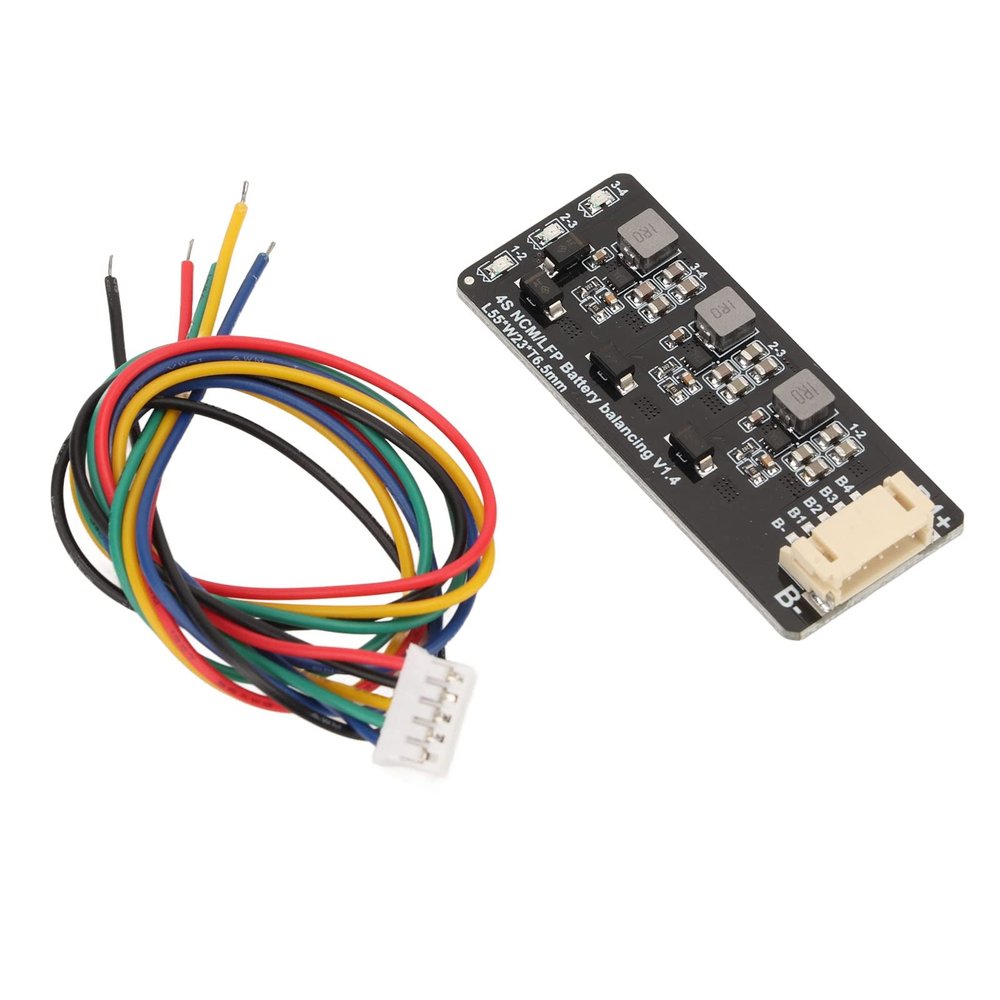

ANKROYU Active Balancer Board, PCB 22AWG Harness Active Equalizer Balancer, 1.2A 4S Inductive Balancer, ANKROYUu3k6q9t5se

Description

• Improve EfficiencyThe inductive energy transfer balance board, equipped with a high current 1.2A energy transfer battery voltage balancer, effectively balances battery voltage and enhances the overall efficiency of the battery pack
• Voltage BalancingThis module operates by balancing the voltage difference between adjacent batteries. When the voltage difference exceeds 0.1V, the chip triggers the balancing process, which continues until the voltage difference is reduced to within 0.03V
• Voltage EqualizationDuring charging and discharging, the presence of voltage differences between adjacent batteries triggers the equalization process. This effectively pulls back the battery pack voltage error, bringing it closer to the value
• Low Power ConsumptionFeaturing an improved ultra-low internal resistance MOS, this voltage balancer operates with a balance current of 0-1.2A. The smaller the current, the lower the static power consumption, which remains below 20A
• MaterialThe voltage balancer utilizes high-quality PCB materials known for their reliability, miniaturization, and interchangeability. The robust PCB construction ensures long-term performance, providing a stable platform for the voltage balancing module

Item Type: Battery Active Equalizer
Material: PCB
Harness Specification: 22AWG

Technical Parameter:
Balance Current:
Adjacent voltage difference more than 0.1V (current about 0.5-0.7A);
Adjacent voltage difference more than 0.2V (maximum equilibrium current 1.2A);
The smaller the voltage difference, the smaller the equalizing current

Wiring Definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive pole of the first battery
B2, the positive pole of the second battery
B3, the positive pole of the third battery
B4, the positive pole of the fourth battery

Package List
1 x Active Balancer Board
1 x Cable
