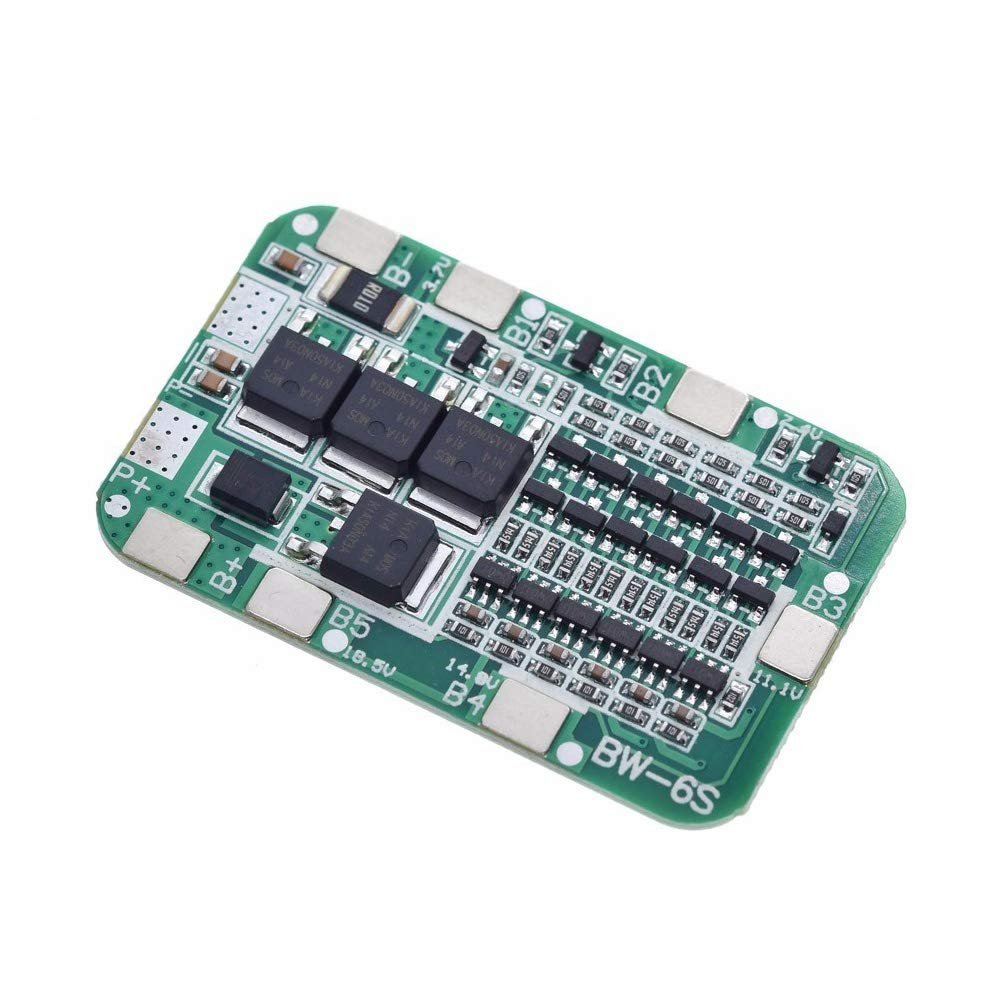

ANMBEST 6S 25.2V 15A 18650 Charger PCB BMS Protection Board

Description

• High-accuracy voltage detection circuit, fine workmanship and durable.
• MULTIPLE PPROTECTION: Over-discharge protection, overcurrent protection, overcharge protection; Short circuit protection; High charge and discharge current; Compact size and lightweight.
• Short circuit protection/Over current protection/Overload/Over discharge protection: disconnect load self-recovery.
• Low internal resistance, high power MOS. MOS transistor can control the battery charge and discharge, low standby current consumption.
• Applications: Use for variety of capacities and various shapes 3.7V lithium batteries,Massager battery pack, LED light backup power supply, solar street light battery pack, monitor standby power supply, etc.

Specifications:
Size: approx.50*30*2mm
Lampshift maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Battery: Nominal 3.7V lithium battery
Overcharge detection voltage: 4.28 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 0.05V
Over discharge detection voltage: 2.55 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9mS
Overcurrent protection current: 30 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect load self-recovery
Main circuit conduction resistance: 20m
Working current: 30uA
Sleep current (battery over discharge) 10uA
Temperature range: -30 / + 80
Attention:
When you wiring, plese do it strictly according to the wiring diagram. Do not deliberately make it short circuit.
Do not mix the good battery and poor battery to use.
The internal resistance of 6 battery capacity are closer will be better.
Package inlcuded:
1x 6S 15A lithium Battery Protection Board
