Description

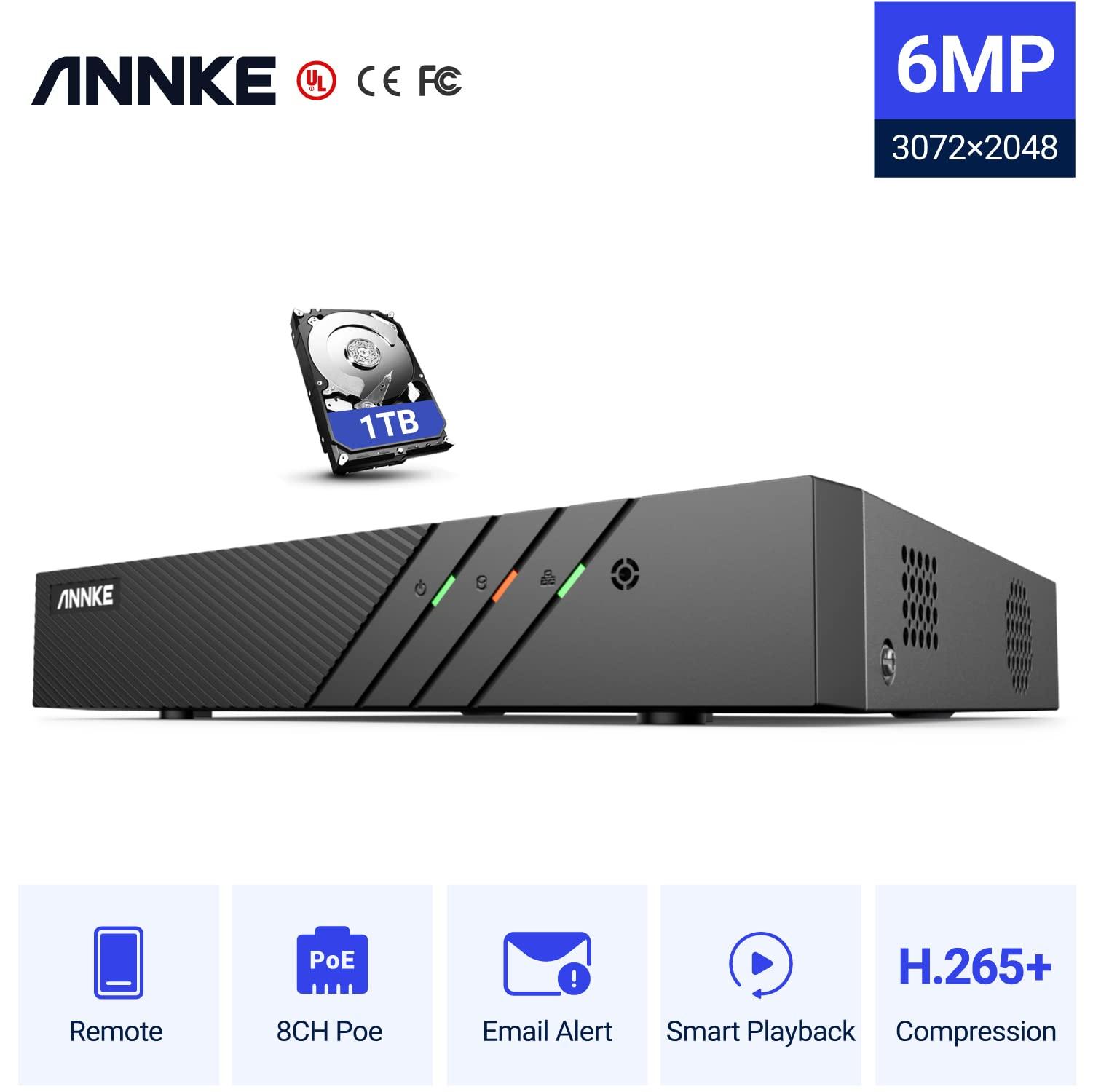

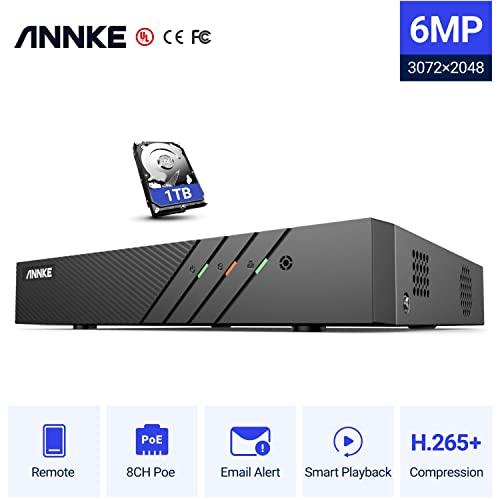

- Support up to 6MP StreamingANNKE 6MP network video recorder supports up to 8 PoE IP security cameras for up to 6MP live stream, playback and recording. By inserting an up to 6 TB HDD, users can enjoy 24/7 non-stop recordings all the year round.

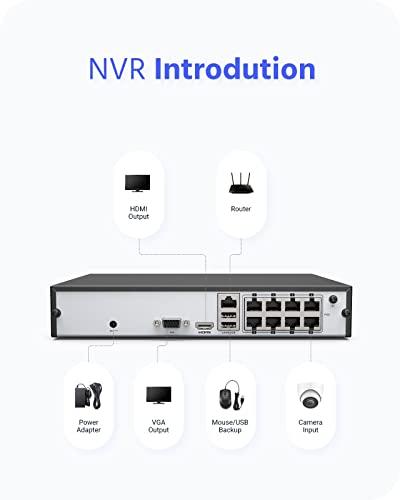

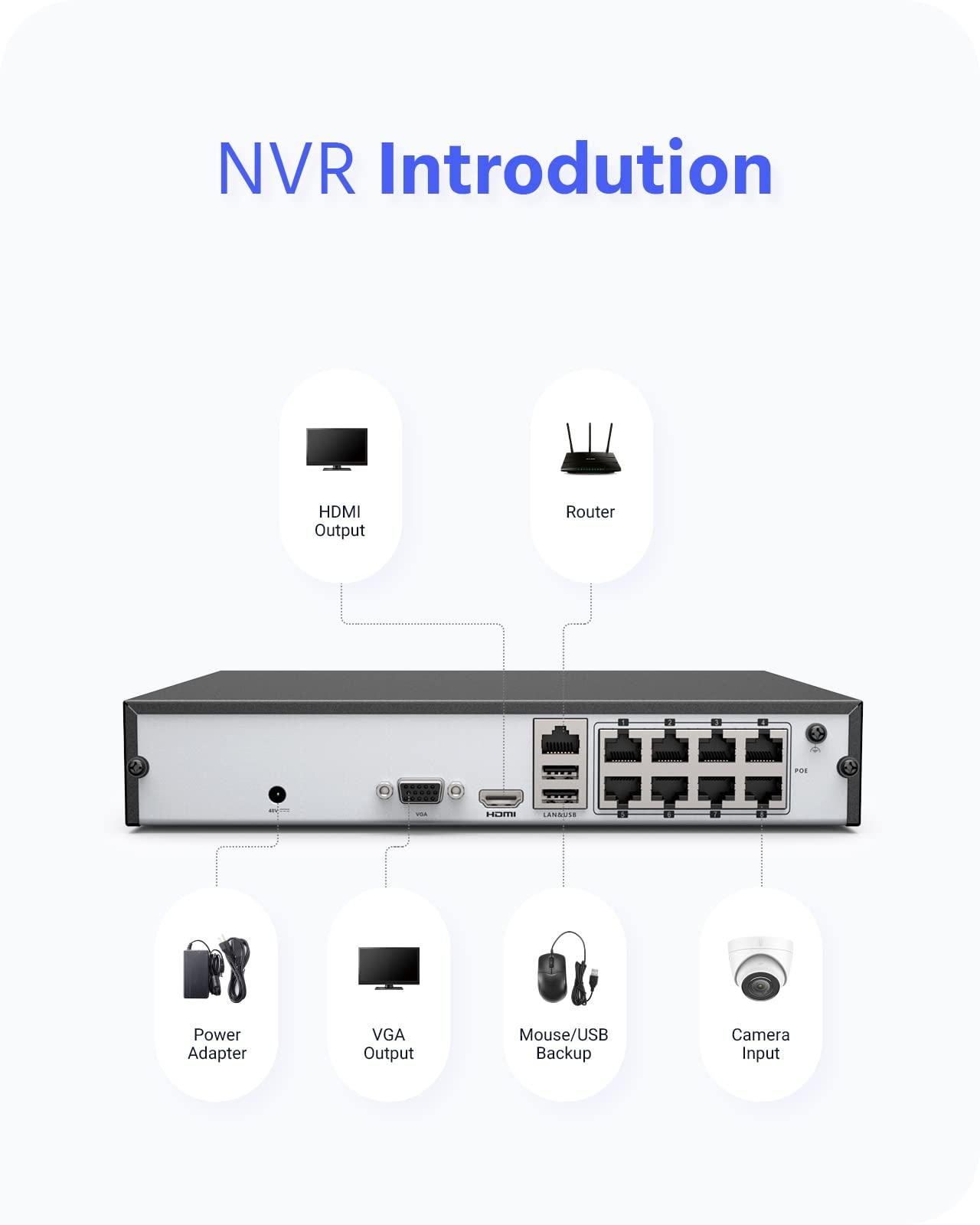

- Email Alerts & App PushesControl the whole system by accessing the NVR directly. Get instant email alerts and app pushes upon there is anything unusual. Locate the vital motion videos with the smart playback. Connect the NVR to a TV or monitor with the HDMI and VGA outputs for local stream.
- Secure Encryption for Privacy ProtectionANNKE security solutions are secured by ANNKE private protocols and encryptions. Users can log in the device only with the correct login password. Get live stream with the necessary preset verification code. Multi-level encryptions protect the stream transmission & downloading from hackers.

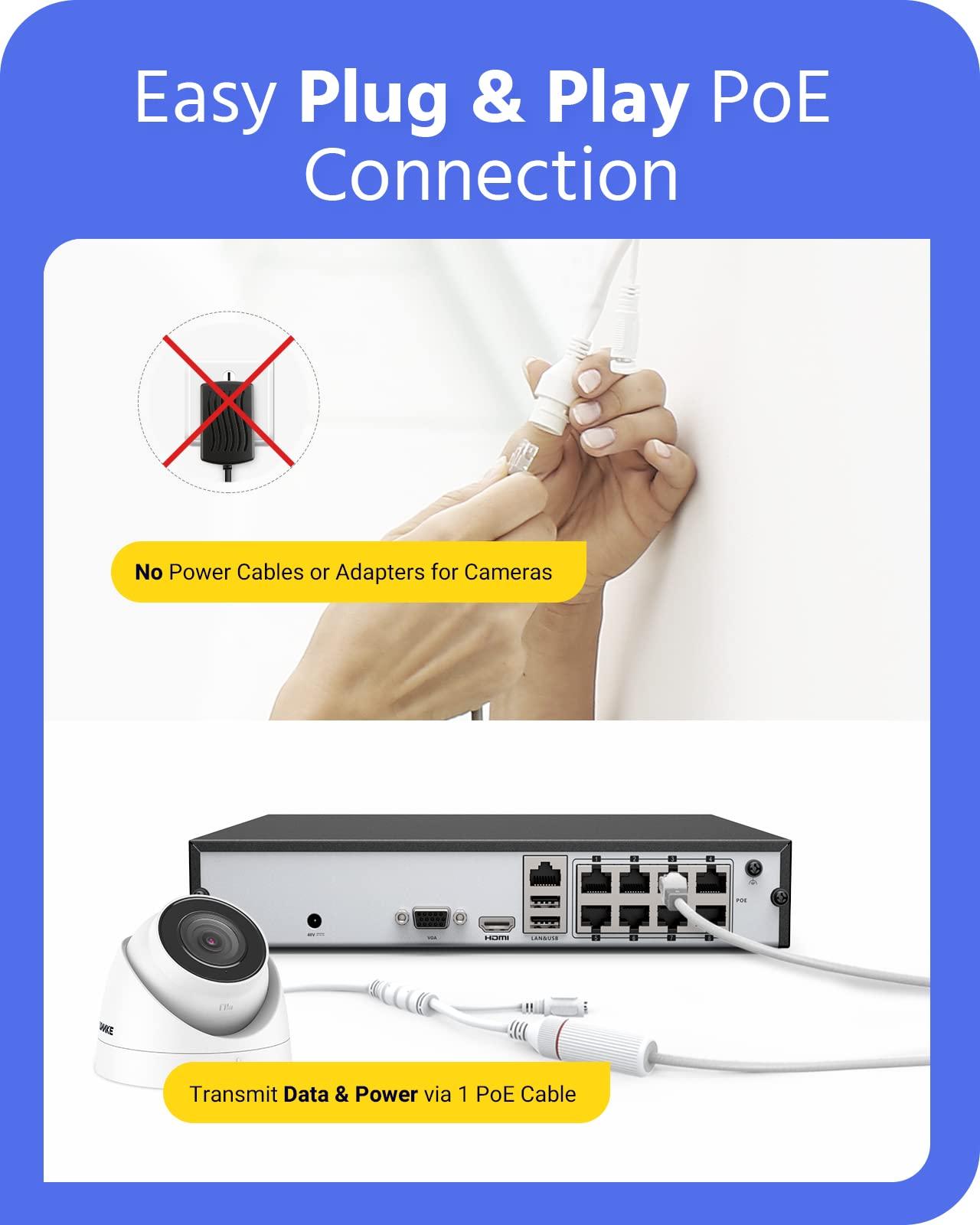

- Plug-and-Play PoE ConnectionThe PoE connection delivers stable data transmission and easy installation. Transmit data & power with just a network cable. Connect the NVR to the PoE security cameras via Ethernet cables, link the NVR to the router and power on the NVR to get instant live view & 24/7 records.

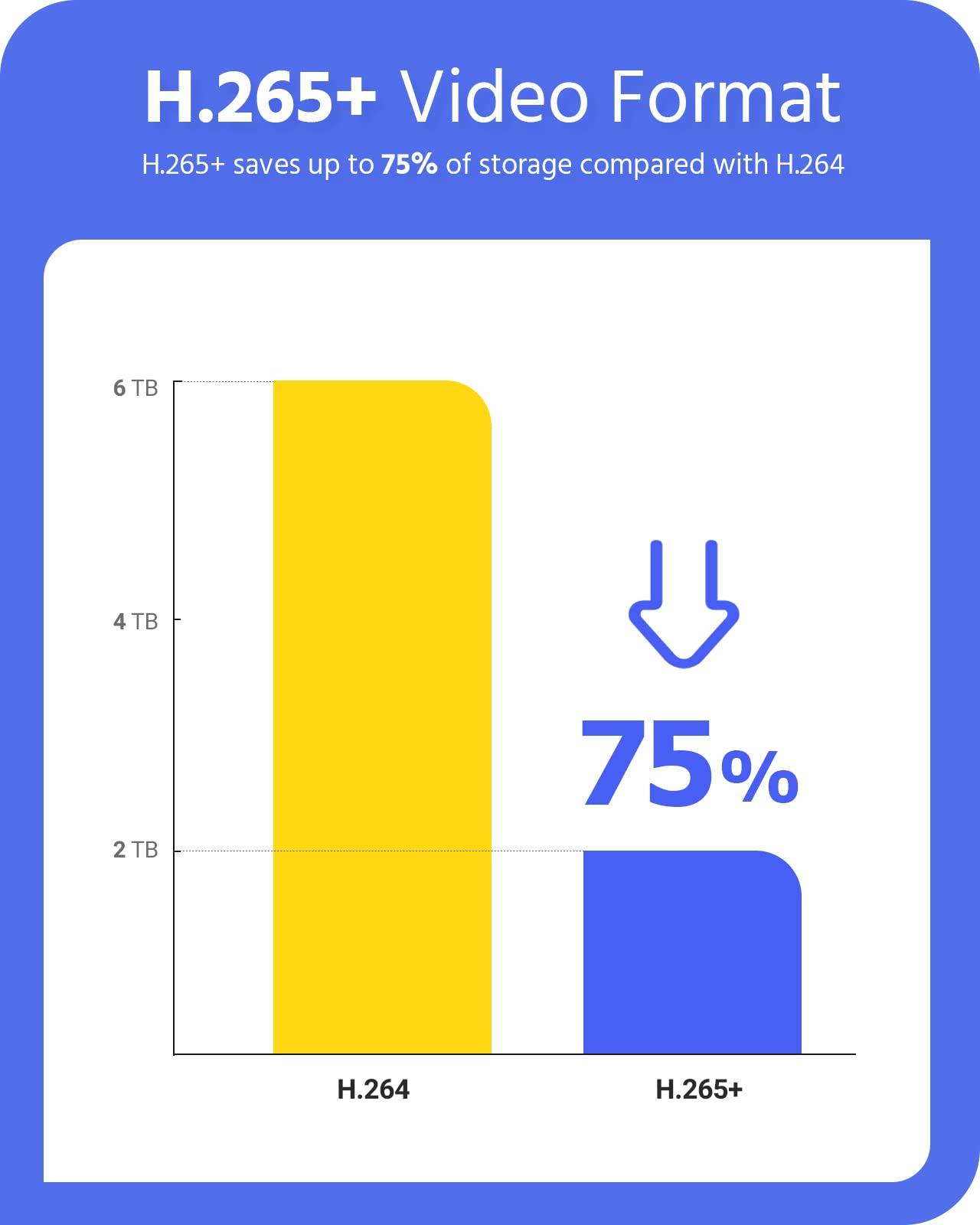

- Advanced H.265+ Video CompressionANNKE 8CH PoE NVR uses H.265+ coding to offer the faster & smoother stream experience than H.265/H.264+/H.264 systems. It enables a longer video recording time and reduces the storage capacity, which saves your budget on buying extra HDDs.
Product Description:

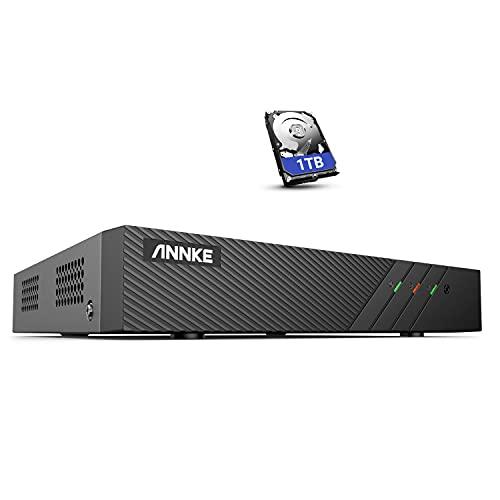

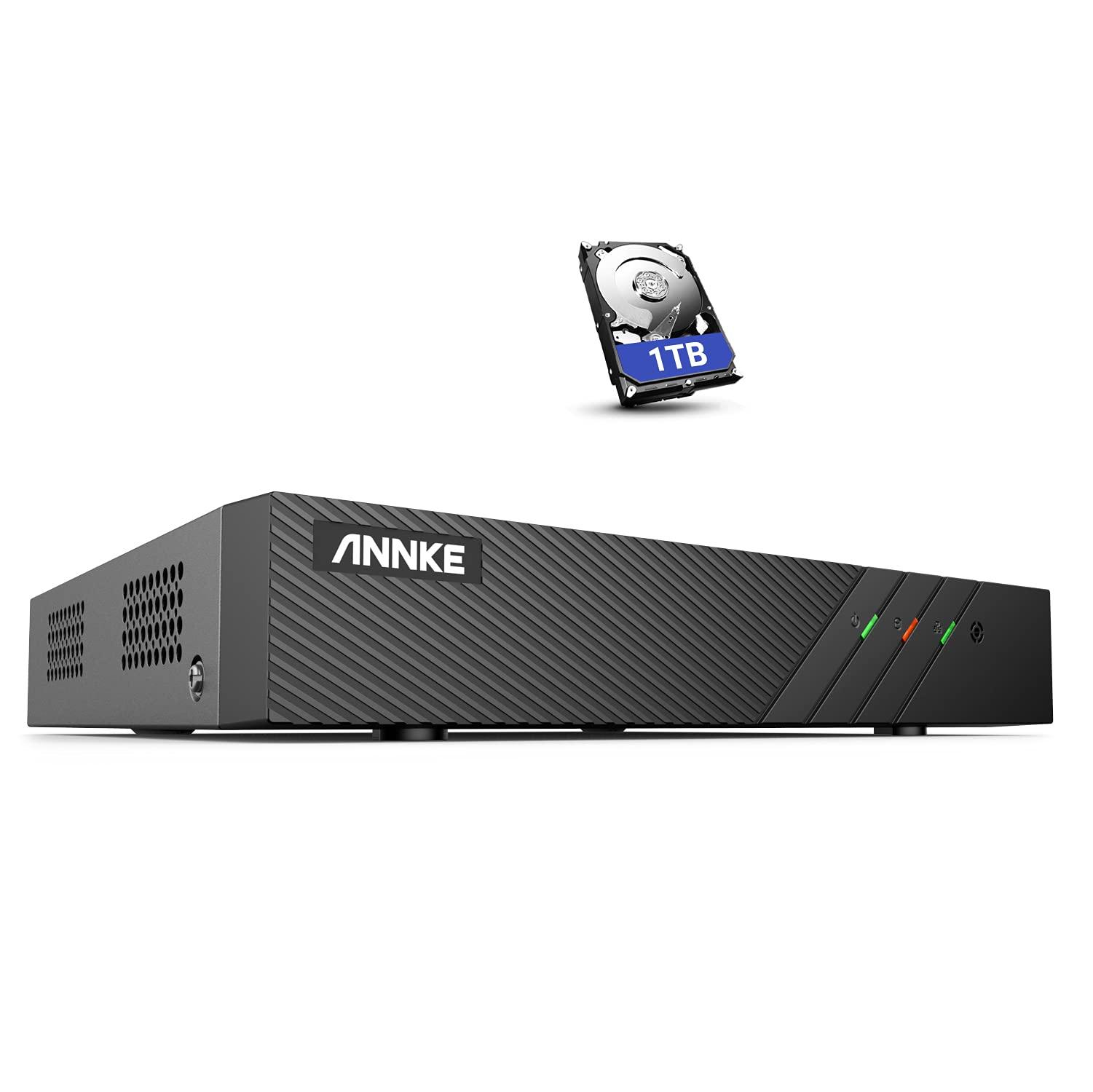

ANNKE PoE NVR provides 24/7 recordings and can connects up to 8 PoE IP cameras (up to 6MP) for easy remote management and control. The PoE connection realizes both data and power transmission with just one Ethernet cable. Get email alerts and app pushes upon there are motion-triggered events.
Main Features:
Up to 6MP Streaming
Advanced H.265+ Coding
100% Plug & Play PoE
Smart Playback
Remote Access Anywhere
App Pushes & Email Alerts
Secure Encryptions & Protocols
Up to 1080p HDMI/VGA Outputs
Specifications:
Video Compression: H.265+/H.265/H.264+/H.264
IP Video Input: 8CH PoE
Video Output: HDMI & VGA up to 1080p
Incoming Bandwidth: 60 M
Max Recording Resolution: Up to 6MP
Max Playback Resolution: Up to 6MP
Max Playback Channel: 8CH
Max Playback Capacity: 4CH@1080p, 1CH@6MP
HDD: 1 SATA Interface
HDD Capacity: Up to 6 TB Capacity
Network Interface: RJ 45 X1 (10/100 M)
POE: 8 Ports (IEEE 802.3at/af)
USB: 2X USB 2.0
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
POE: Max 25.5 W for Single Port
Working Temperature: 14 F - 131 F/- 10 C - 55 C
Dimensions (W x H x D): 10.4" 8.9" 1.9"/265 225 48 mm
Weight (Without Hard Disk): 2.2 lbs./1 kg
What's in the Box?
1X 6MP Security NVR with 1TB Hard Drive
1X USB Mouse
1X Power Adapter
1X 1 m Network Cable
1X 1.8 m HDMI Cable
1X User Manual
