Description
- 7 total ports with 4 PoE+ and 1 Standard Fast Ethernet (10/100TX) ports, RJ45 connections, Auto MDI/MDI-X, 2 Gigabit SFP Slots
- Compliant to IEEE 802.3af/at, 30 watts per port
- Network broadcast storm protection, Store-and-Forward switching, 8K MAC addresses, CSMA/CD
- Redundant 48 to 55 VDC power input via 6-pin terminal block, 6 kV ESD and 2 kV EFT protection, reverse polarity and overload protection
- Compact fanless IP30 metal enclosure, -40 to 75C operating temperature
- Power failure warning via relay output
- FCC, CE, UL 61010-1, UL 61010-2-201, UL Class 1 Division 2 certifications

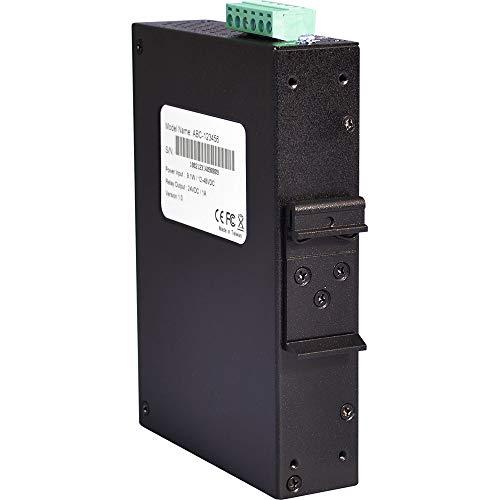

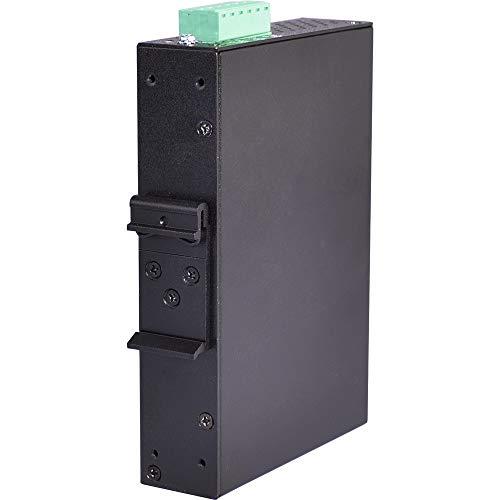

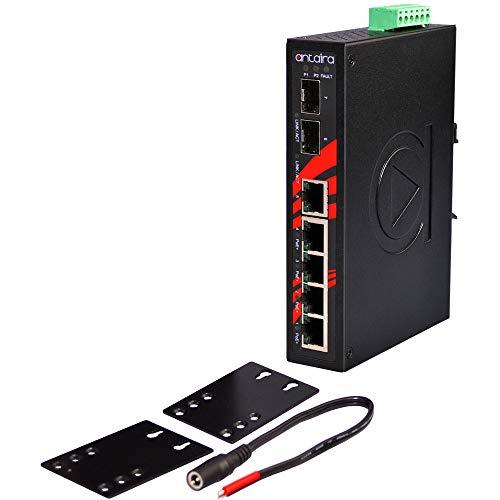

- DIN-rail and wall mounting brackets included
- 5-year warranty

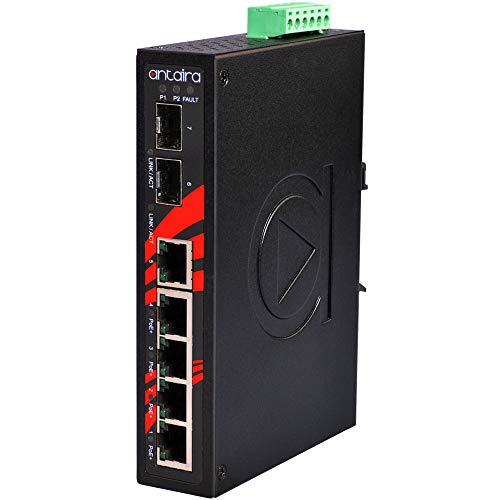

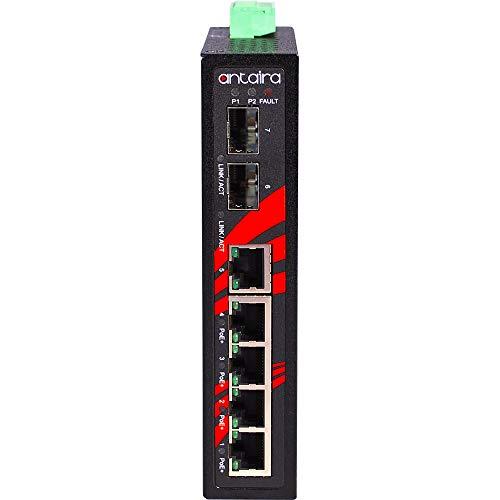

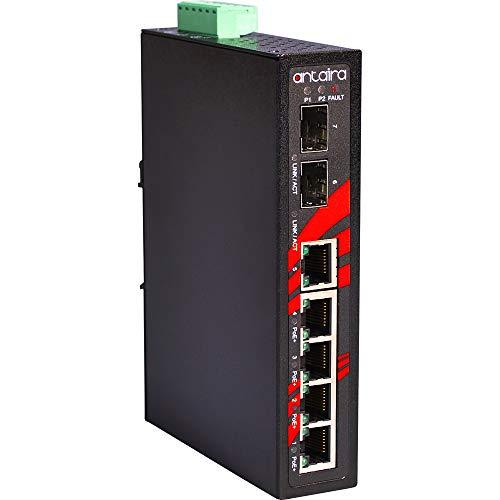

Antaira Technologies' LNP-0702C-SFP-T industrial, unmanaged Fast Ethernet switch offers 4 Power over Ethernet (PoE+) ports, a standard Fast Ethernet port, and 2 dual-rate (100/1000TX) SFP ports. The four PoE+ ports are IEEE 802.3at compliant providing up to 30 watts of power per port. Its ideal for high-bandwidth, long distance applications. With a rugged design and extended temperature rating, it is suited for industrial automation, outdoor projects and harsh environments.
The LNP-0702C-SFP-T features high EFT and ESD protection to stop unregulated voltage spikes. It supports redundant power input with reverse polarity protection. The voltage input is 48 55 VDC.
