Description
- 5 Fast Ethernet Ports (10/100TX) with Auto MDI / MDI-X, 2 SFP Slots
- Store and Forward architecture, 8K MAC address table, CSMA/CD
- Redundant 12 to 48 VDC power input via 6-pin terminal block, 6 kV ESD and 2 kV EFT protection, reverse polarity and overload protection

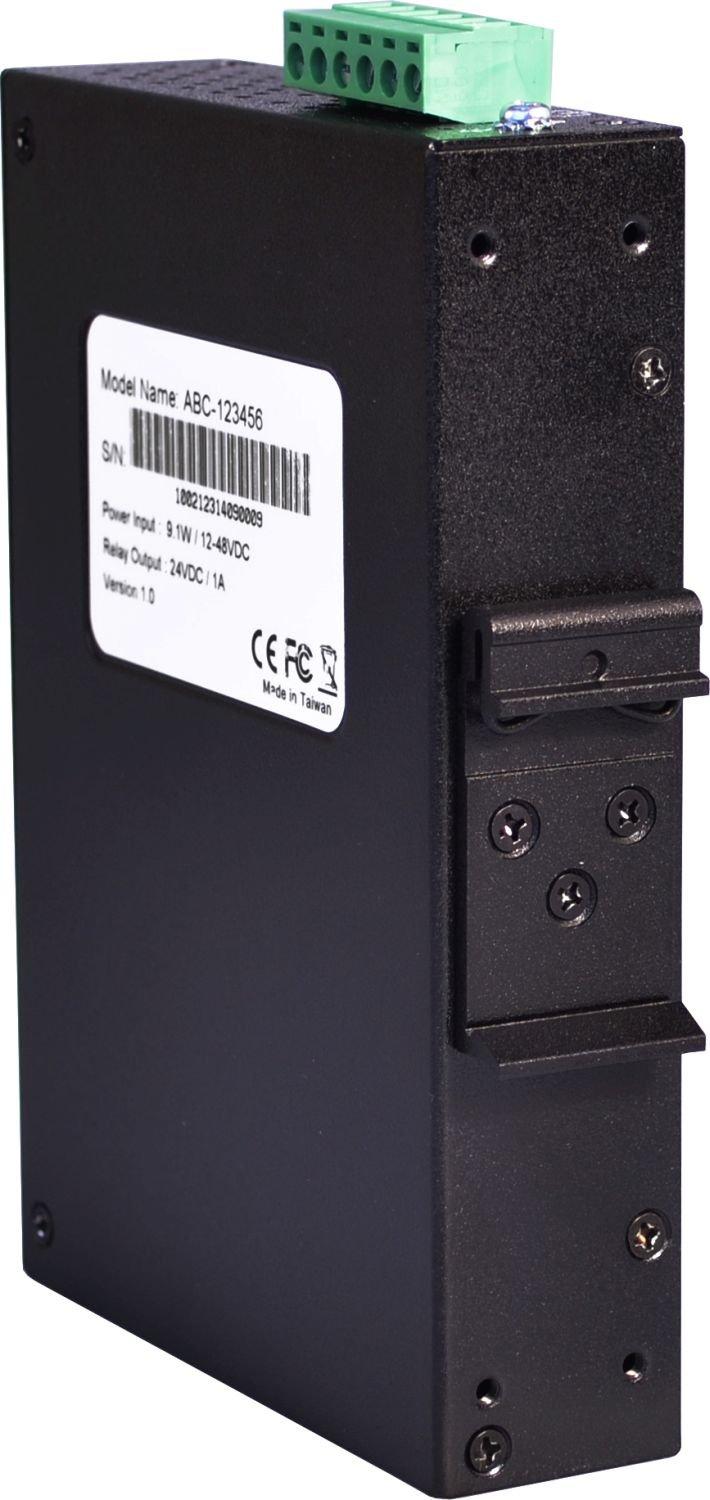

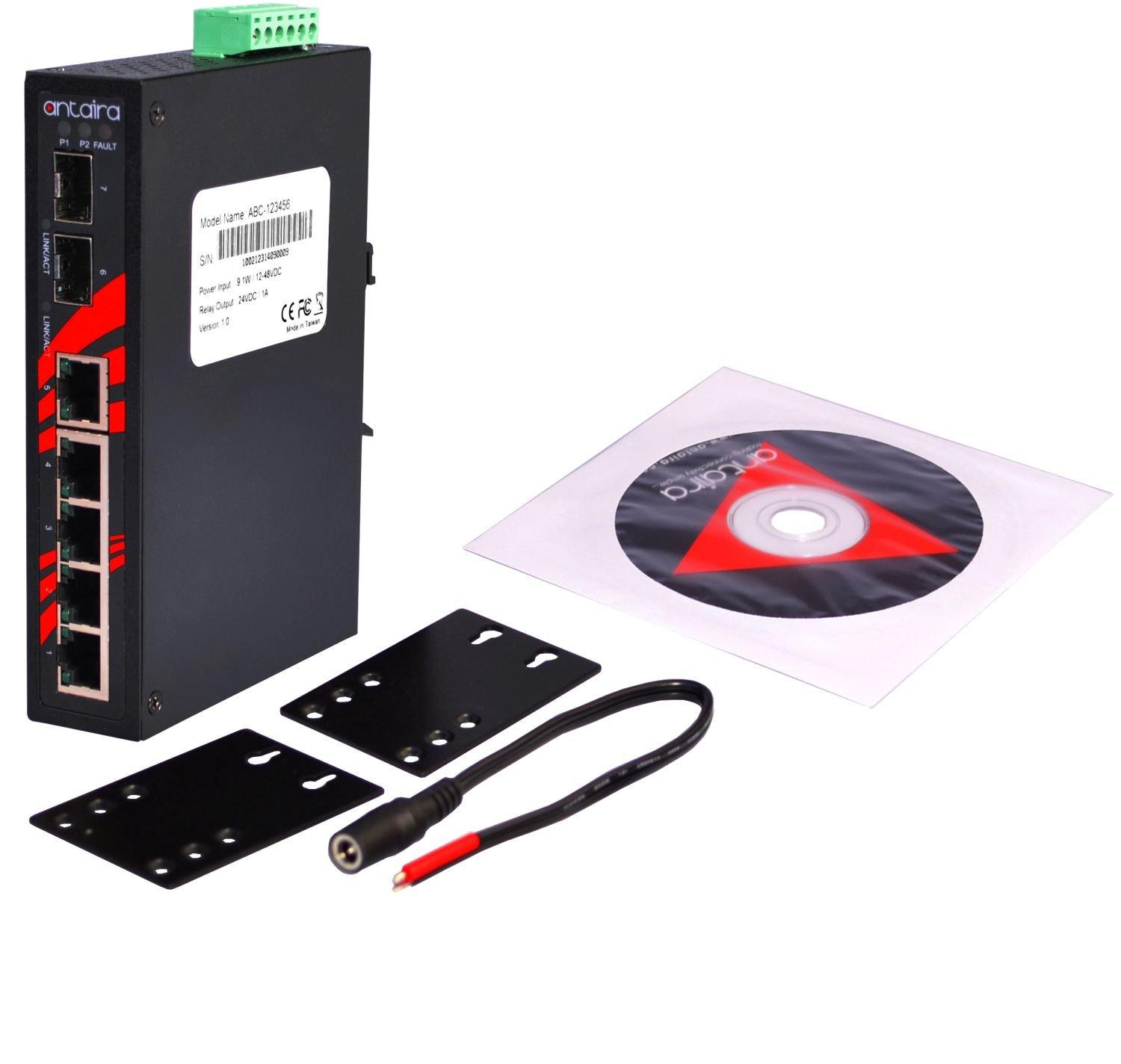

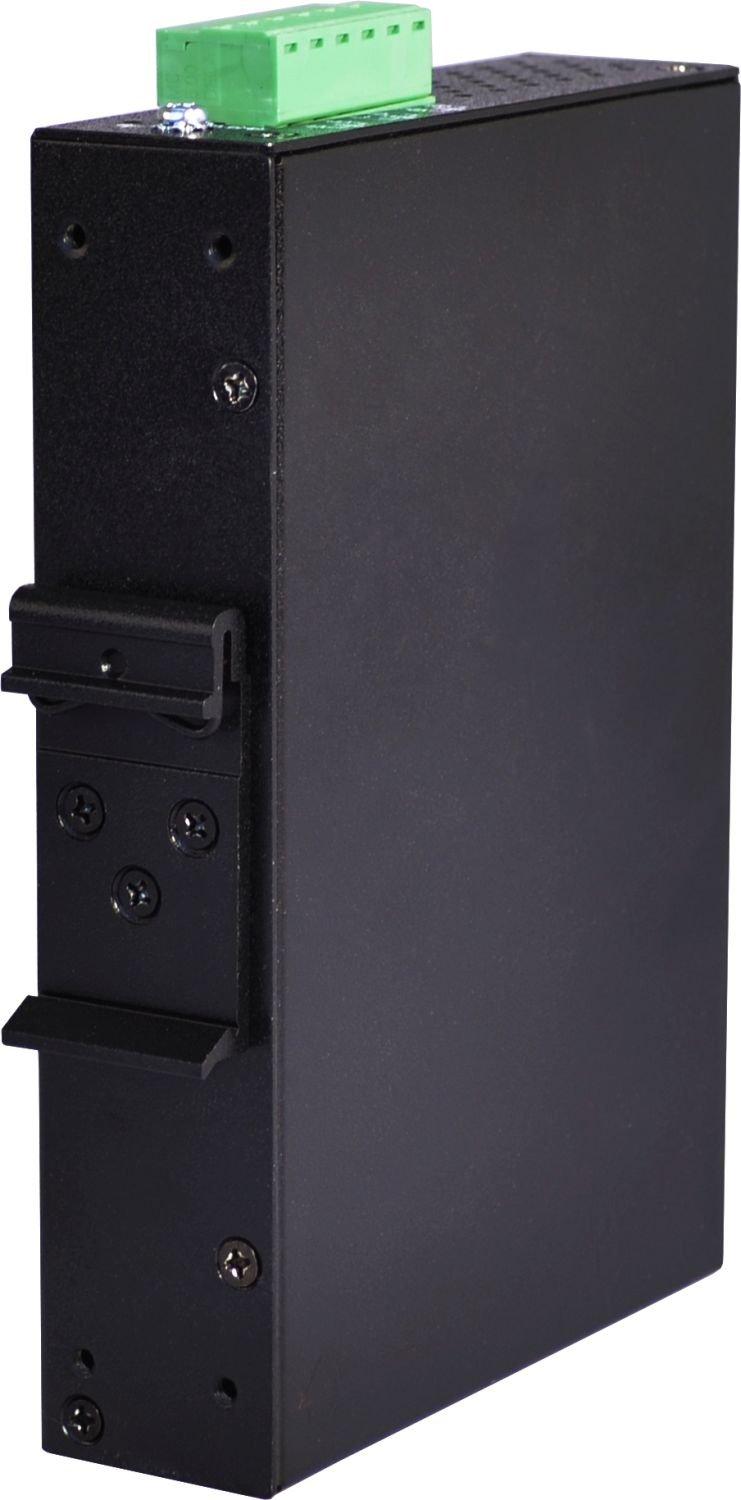

- Fanless metal enclosure, operating temperature from -10 to 70C, DIN-rail and wall mounting brackets included
- Meets FCC, CE, UL 61010-1, UL 61010-2-201 industrial certifications; 5-year warranty

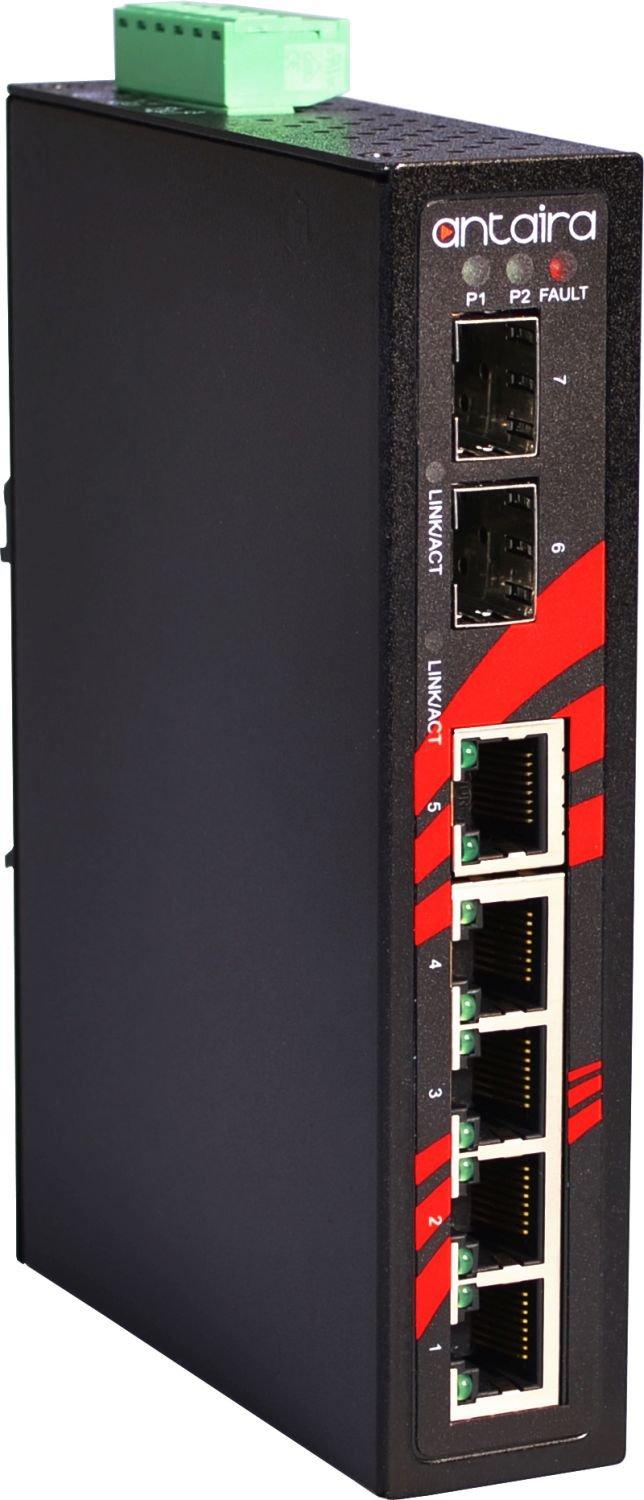

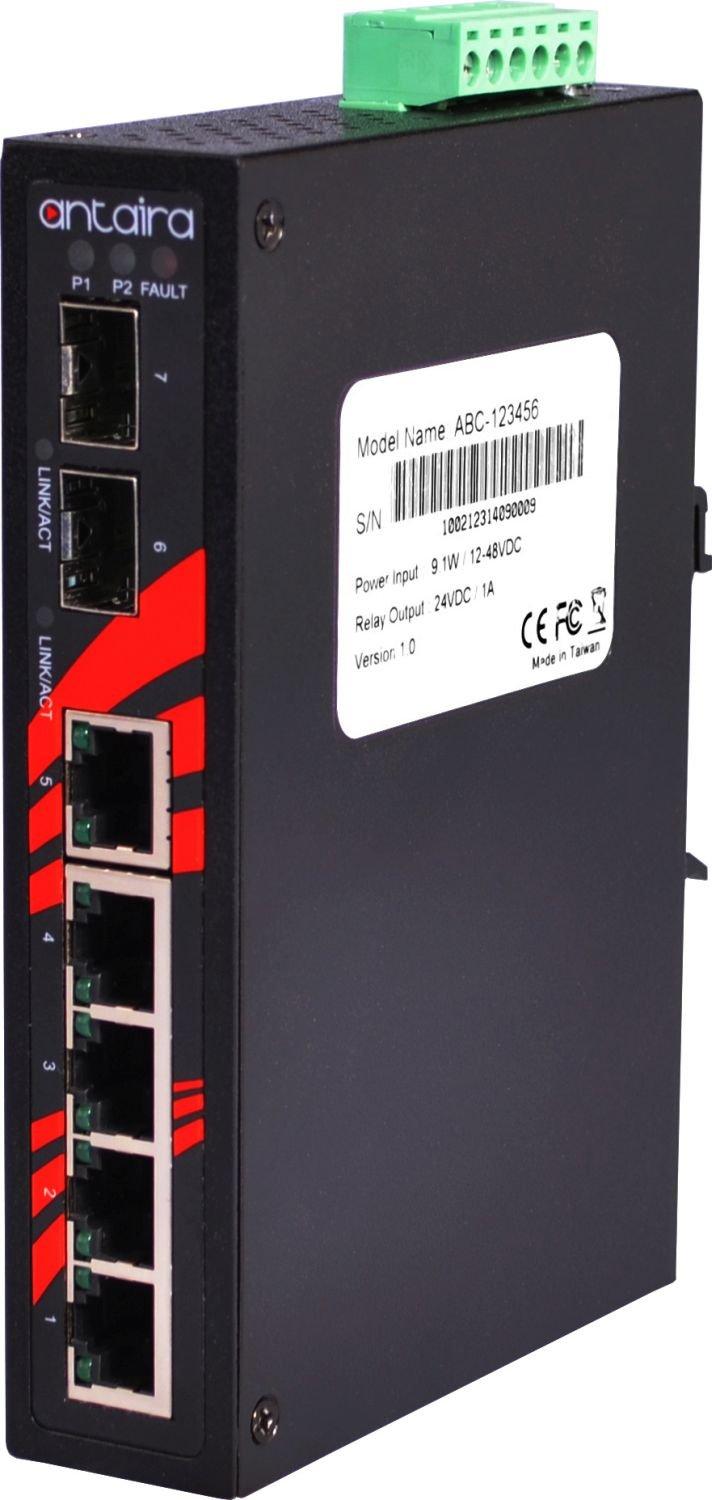

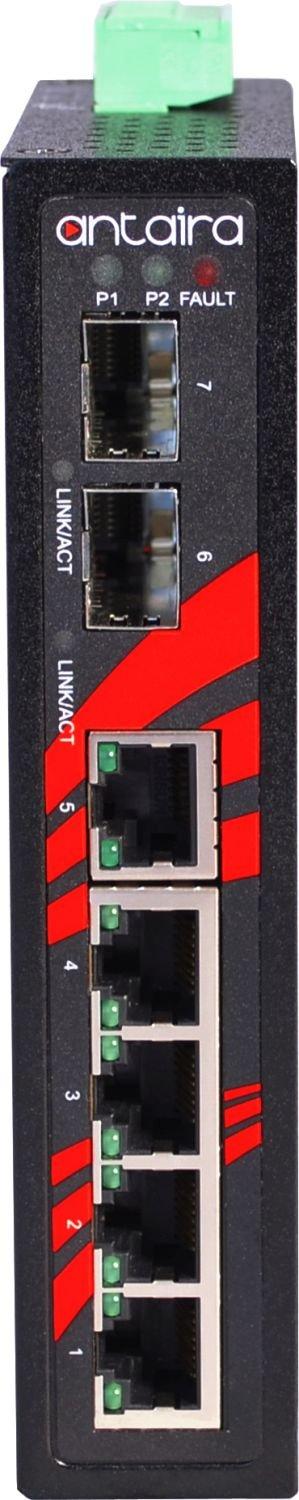

With rapid growth in data traffic, demand for high-performance, stable communications has increased. To meet these conditions, IT professionals and engineers choose Antaira Technologies Ethernet switches for their networking needs. The LNX-0702C-SFP is a 7-port unmanaged Ethernet switch with 5 Fast Ethernet 10/100TX ports and 2 100/1000FX SFP slots for fiber optic connectivity. It was developed for industrial and outdoor applications requiring high-speed and high-reliability. Substations, factory floors, control panels, railway and remote sites may have noisy, unregulated power. Thats why this switch is equipped with high ESD and overvoltage protection. In addition, it provides reverse polarity and accepts redundant input voltage from 12 to 48V DC.
With an IP30 rated rugged aluminum case, the LNX-0702C-SFP withstands temperatures ranging from -10 to 70 C. In a sealed NEMA or control box, its perfectly suited in rainy and humid outdoor areas and dusty factory floors. A built-in relay alerts engineers of possible power outages and port failures. This feature is an enormous help to those in charge of maintaining and troubleshooting the network. Broadcast Storm Control protection blocks data traffic when it exceeds a predefined volume.
