Description

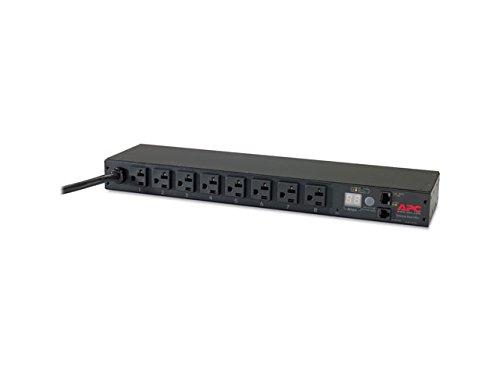

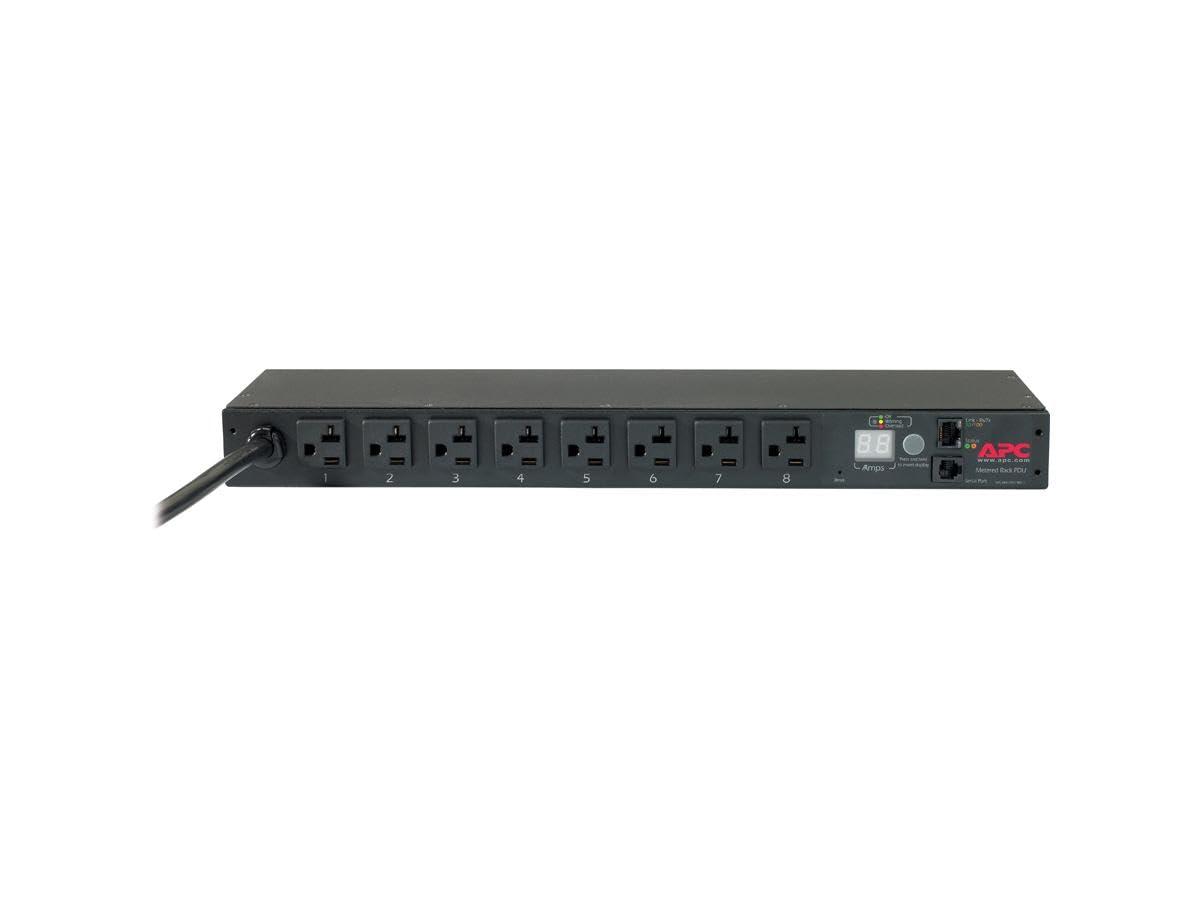

AP7801Features Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Includes : Cord Retention Bracket(s) , Installation Guide , Rack Mounting Brackets , User Manual Output Nominal Output Voltage 120V Overload Protection No Maximum Total Current Draw 16 Output Connections (8) NEMA 5-20R (Battery Backup) Input Nominal Input Voltage 100V , 120V Input frequency 50/60 Hz Input Connections NEMA L5-20P Cord Length 12ft ( 3.66meters ) Number of Power Cords 1 Load Capacity 1920VA Maximum Input Current 20A Regulatory Derated Input Current (North America) 16A Physical Maximum Height 1.74inches ( 44mm , 4.4cm ) Maximum Width 17.47inches ( 444mm , 44.4cm ) Maximum Depth 4.03inches ( 102mm , 10.2cm ) Rack Height 1U Net Weight 3.8lbs. ( 1.73kg ) Shipping weight 6.4lbs. ( 2.91kg ) Shipping Height 2.5inches ( 64mm , 6.4cm ) Shipping Width 18.5inches ( 470mm , 47.0cm ) Shipping Depth 13.25inches ( 337mm , 33.7cm ) Environmental Operating Environment 23 - 113 F ( -5 - 45 C ) Operating Relative Humidity 5 - 95 % Operating Elevation 0-10000ft ( 0-3000meters ) Storage Temperature -25 - 65 C Storage Relative Humidity 5 - 95 % Storage Elevation 0-50000ft ( 0-15000meters )
