Description
- Arc Audio KS 300.4 4-Channel Full Range Amplifier
- Advanced Microprocessor Control System
- Non-Digital Class G/H Switching Design
- Code Based Flashing Diagnostics
- Protection Against: Reverse Voltage, Over Voltage, Speaker Short, and Thermal Overload

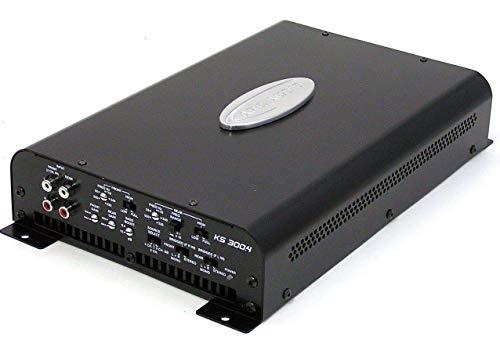

Arc Audio KS 300.4 4-Channel Full Range Amplifier
4-Channel Full Range Amplifier
Advanced Microprocessor Control System
Non-Digital Class G/H Switching Design
Code Based Flashing Diagnostics
Designed By Robert Zeff
Protection Against: Reverse Voltage, Over Voltage, Speaker Short, and Thermal Overload
Can Drive Highly Reactive Loads
Optically Isolated Mosfet Power Supply
Quiet Internal Fan Cooling
Specifications -
4-Channels @ 4 Ohms - 90 Watts
4-Channels @ 2 Ohms - 175 Watts
2-Channel @ 4 Ohms (Bridged) - 350 Watts
Frequency Response - 5Hz - 50kHz
Crossover Range - 55Hz - 5500Hz
Bass Boost - 18dB @ 45Hz
S/N Ratio - 95dB
Input Sensitivity (Low) - 200mV - 3.5V
Max Current Draw - 85A @ 800 Watts 1% THD
Idle Current - 1.14 Amp
Fuse - 3 x 30 Amp
Dimensions - 11.25(L) x 8.0"(W)x2.375"(H)
