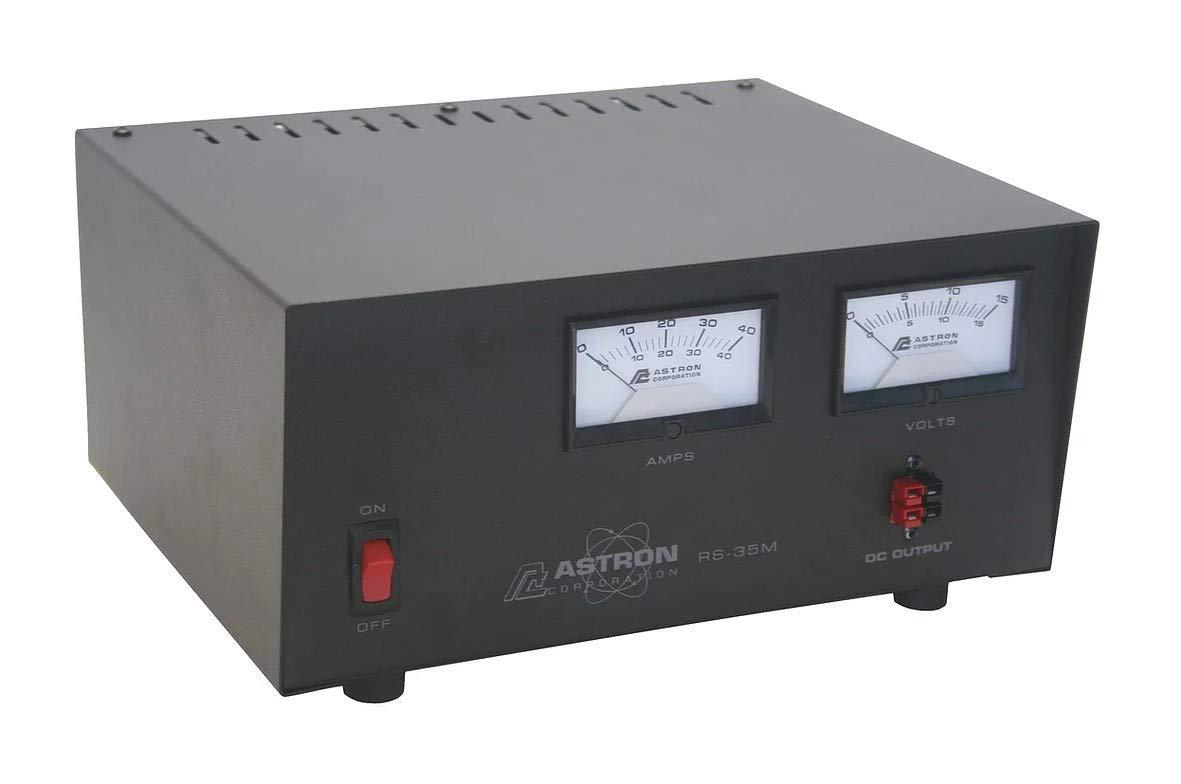

Astron Astron RS-35M-AP Desktop 13.8VDC Linear Power Supply with Meters and Anderson Power Poles, 35A Peak, 25A Continuous
Astron Astron RS-35M-AP Desktop 13.8VDC Linear Power Supply with Meters and Anderson Power Poles, 35A Peak, 25A Continuous
Astron

Astron RS-35M-AP Desktop 13.8VDC Linear Power Supply with Meters and Anderson Power Poles, 35A Peak, 25A Continuous

$ 845.30
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • CONTINUOUS DUTY: 25 Amps
  • ICS: 35 Amps
  • POWER TERMINALS: 1/4"-20 Screw Type and Anderson Power Poles
  • FAN COOLED: No
  • Separate Voltage and Amperage Meters Included


Features and Specifications SOLID STATE ELECTRONICALLY REGULATED FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage THREE CONDUCTOR POWER CORD HEAVY DUTY HEAT SINK INPUT VOLTAGE: 105-125VAC OUTPUT VOLTAGE: 13.8VDC 0.05 volts INTERNALLY ADJUSTABLE VOLTAGE (11-15VDC) RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line) LOAD REGULATION: 0.08% from 0 to Full Continuous Load EFFICIENCY: 77% OPERATING TEMP: -10 to 55C
