AUBER 1/32 DIN Compact General Purpose Timer

Description

• 1/32 DIN size
• General purpose timer
• "single delay, double delay, cycled delay functions"

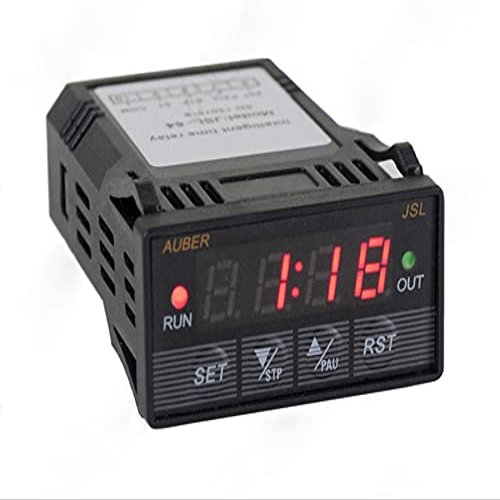

"The JSL-64 is a very compact, 1/32 DIN sized, general purpose timer. It measures 24 x 48 x 75 mm (0.95'' x 1.89'' x 3''), half the height of a 1/16 DIN sized timer that is commonly available on the market. It is suitable for building small control boxes or control panels where space is limited. A 1/32 DIN sized timer is hard to find. This timer is probably the most affordable yet the most functional timer on the market.

Although it is small in size, JSL-64 is a full function timer that offers all the timing modes as our JSL-74 timer does. By using a newer and more powerful microcontroller, this timer has an intuitive user interface for easy setup. It allows the user to program single delay, double delay, or cycle modes for various applications that requires a time controlled relay to activate a device. The timer can be started when it is powered up. It can also be started via the Reset key, or the Reset terminal on the back. The time unit can be set in second, minute, and hours. The two time segments can have different units. In addition to the Reset key, this timer also has a Pause key, Stop key and corresponding terminals on the back to meet different requirements.

Specifications:
Timer range: 0.01 second to 9999 minute.
Timer mode: single delay, double delay, cycled delay.
Timer trigger: power on, front key pad, or remote switch.
Timer accuracy: <1 s/day.
Power supply: 90 - 260 V AC or DC.
Power Consumption: <2 W
Relay output: 10 A at 240 VAC/30 VDC (resistive load)
Relay life: 100,000 times.
Operating temperature: 0-60 C.
Humidity: 0-95%RH
Mounting cutout: 22 x 45 mm
Dimension: 24 x 48 x 75 mm (1""x 2"" x 3""))"
