Description
- Full 1920x1080p HD resolution output with a frame rate up to 60fps. 10x optical zoom, 5x Digital zoom with 60.9 wide field of view
- High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
- H.264/H.265 video compression. IP streaming(dual stream), 3G-SDI, USB2.0 video output
- RS-485 (VISCA/ Pelco-D/ Pelco-P), VISCA over IP, ONVIF, UVC1.1 and IR remote control
- USB2.0 Type-A Port: Able to connect with PC, Mac, or Chromebook computer easily. Compatible with any web conferencing or streaming software

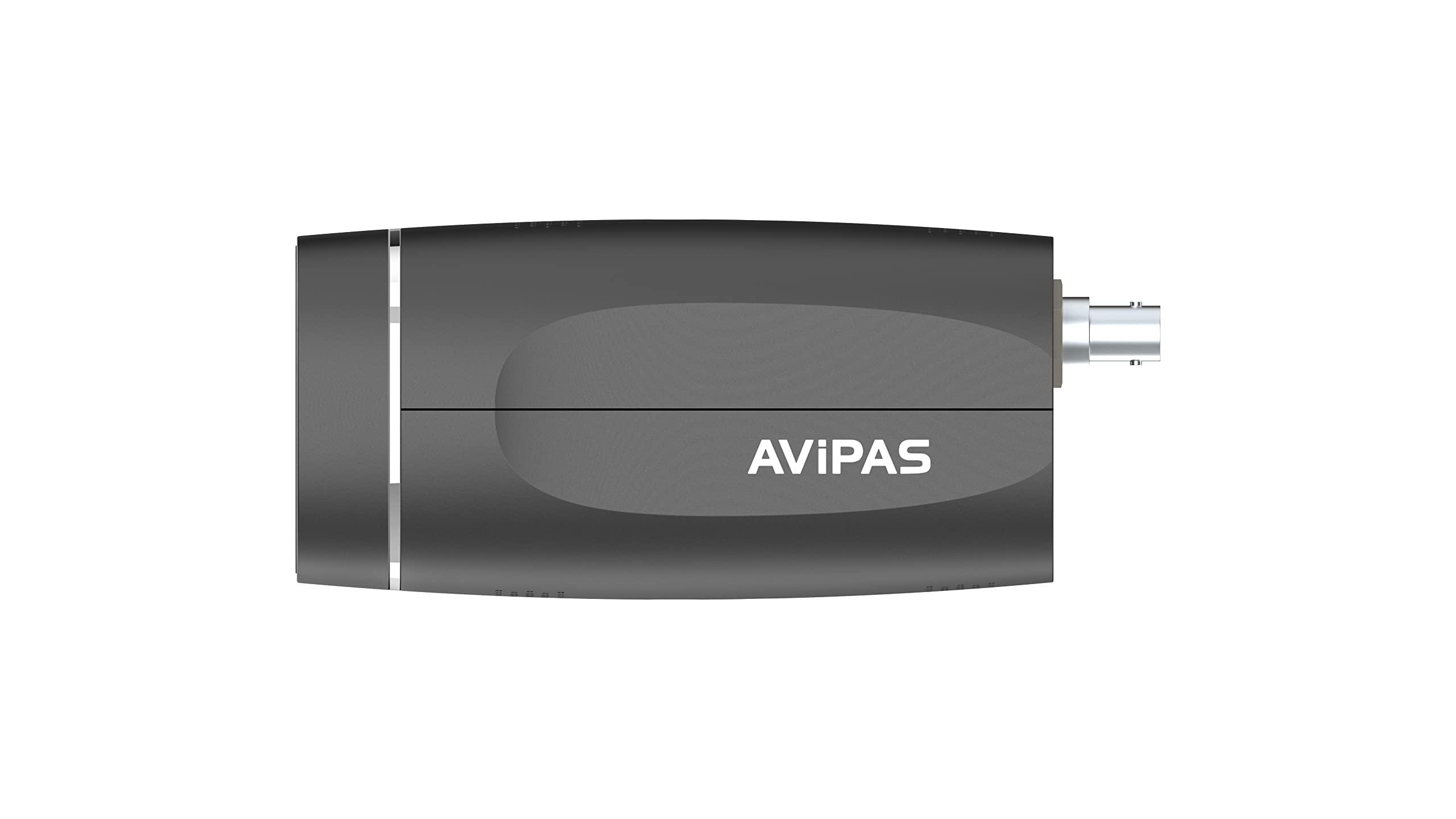

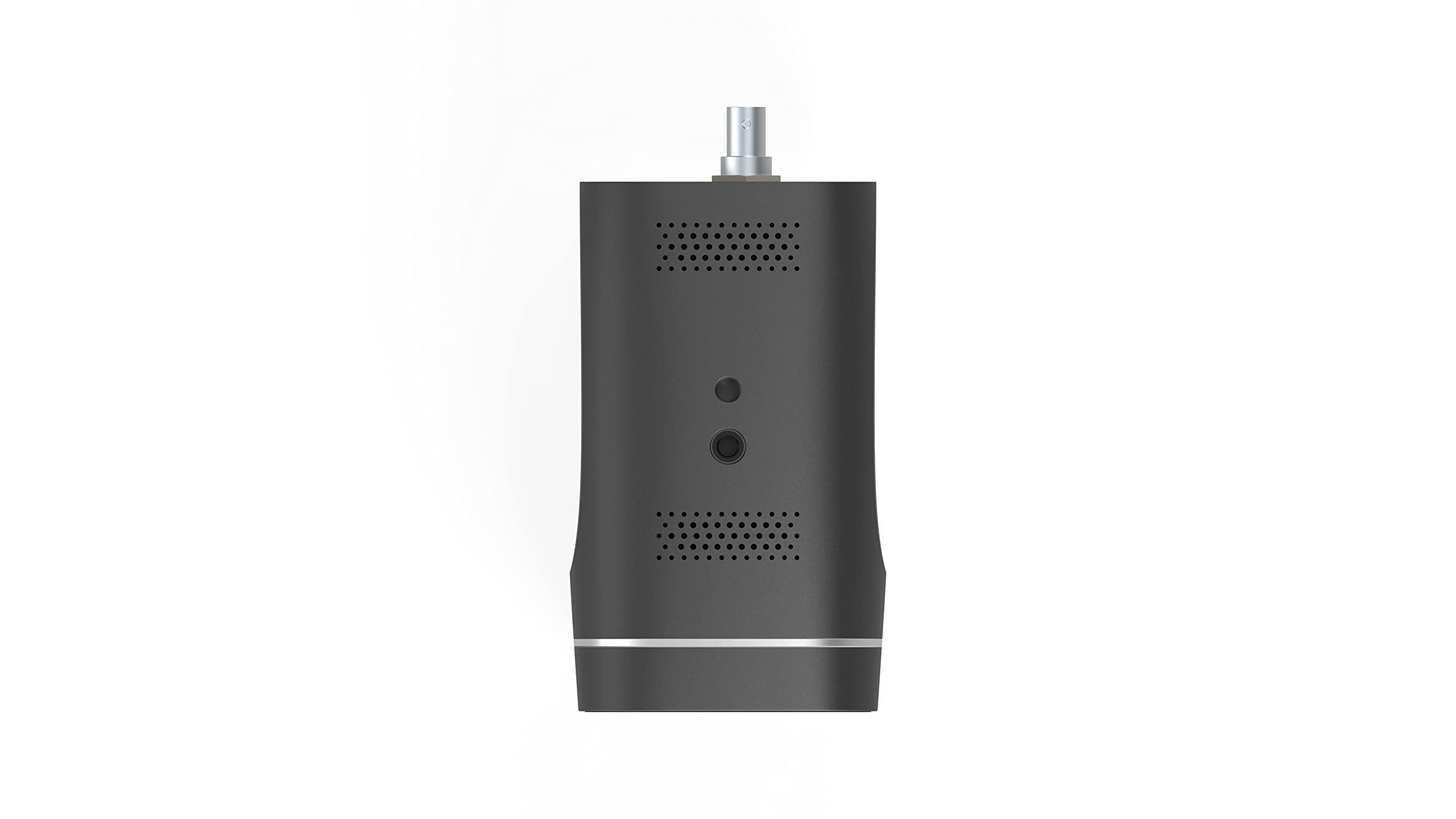

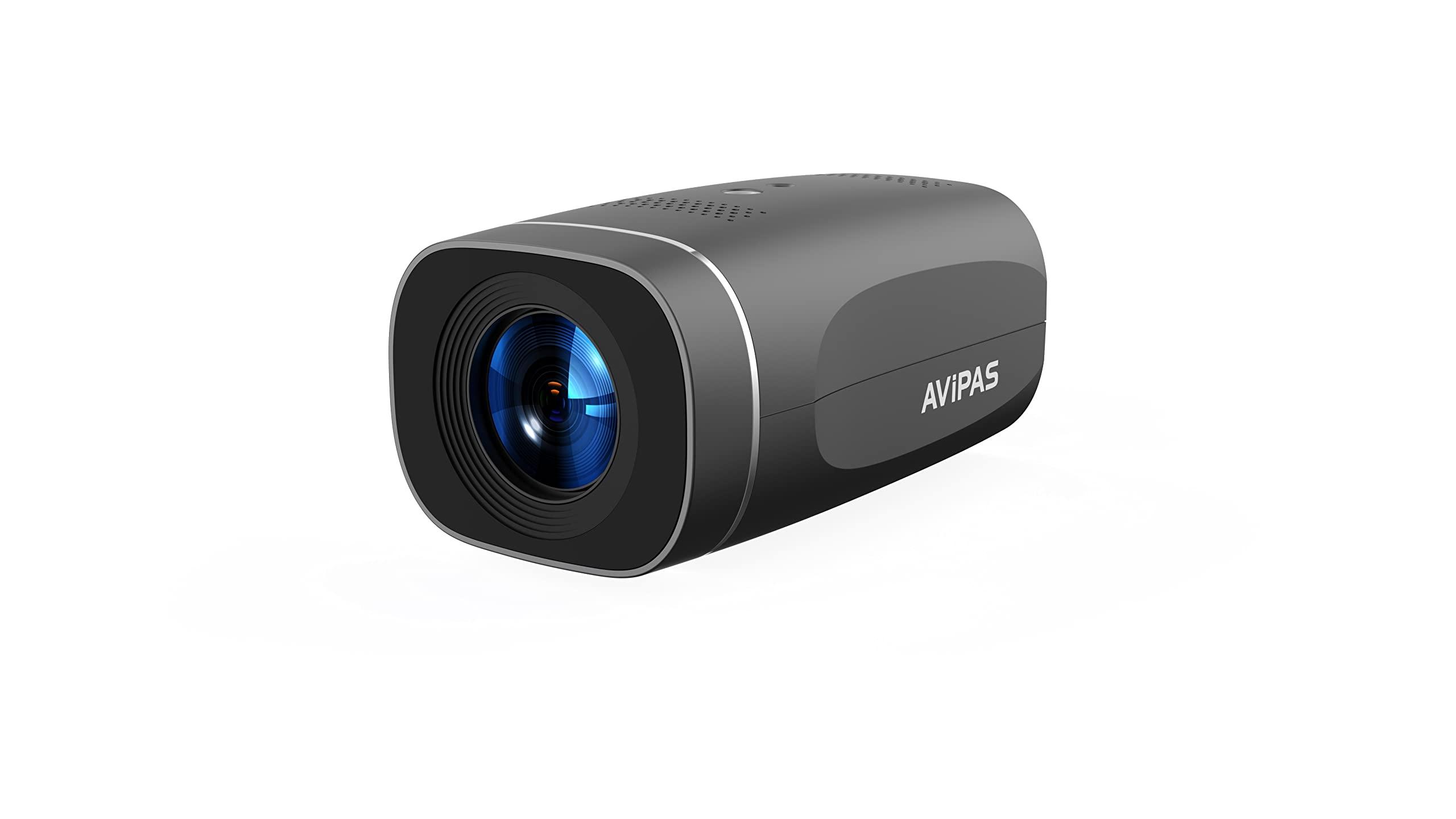

AViPAS AV-1180 is a 10x SDI/USB2.0 Box IP Camera features a 2.07MP, 1/ 2.8 high-quality SONY CMOS sensor to provide full HD video. 10x optical zoom, 5x digital zoom lens with 60.9-degree field of view. Resolution is up to 19201080 with a frame rate up to 60fps. AV-1180 has 3G-SDI, USB2.0 and IP video output interface. It supports H.264 & H.265 video compression.
AV-1180 supports one 3.5mm Line-in audio with AAC, MP3, G.711A audio coding formats. Control protocol options include VISCA, PELCO-P, PELCO-D, ONVIF, UVC1.1 and VISCA over IP.
Ideal for video conferencing, government, court, educational environments, remote learning, corporate training, remote medical and internet communication.
Key Features:
Full HD Resolution: 1/2.8 2.07M effective pixel SONY CMOS sensor, delivery the image resolution at1080P with frame rate up to 60fps.

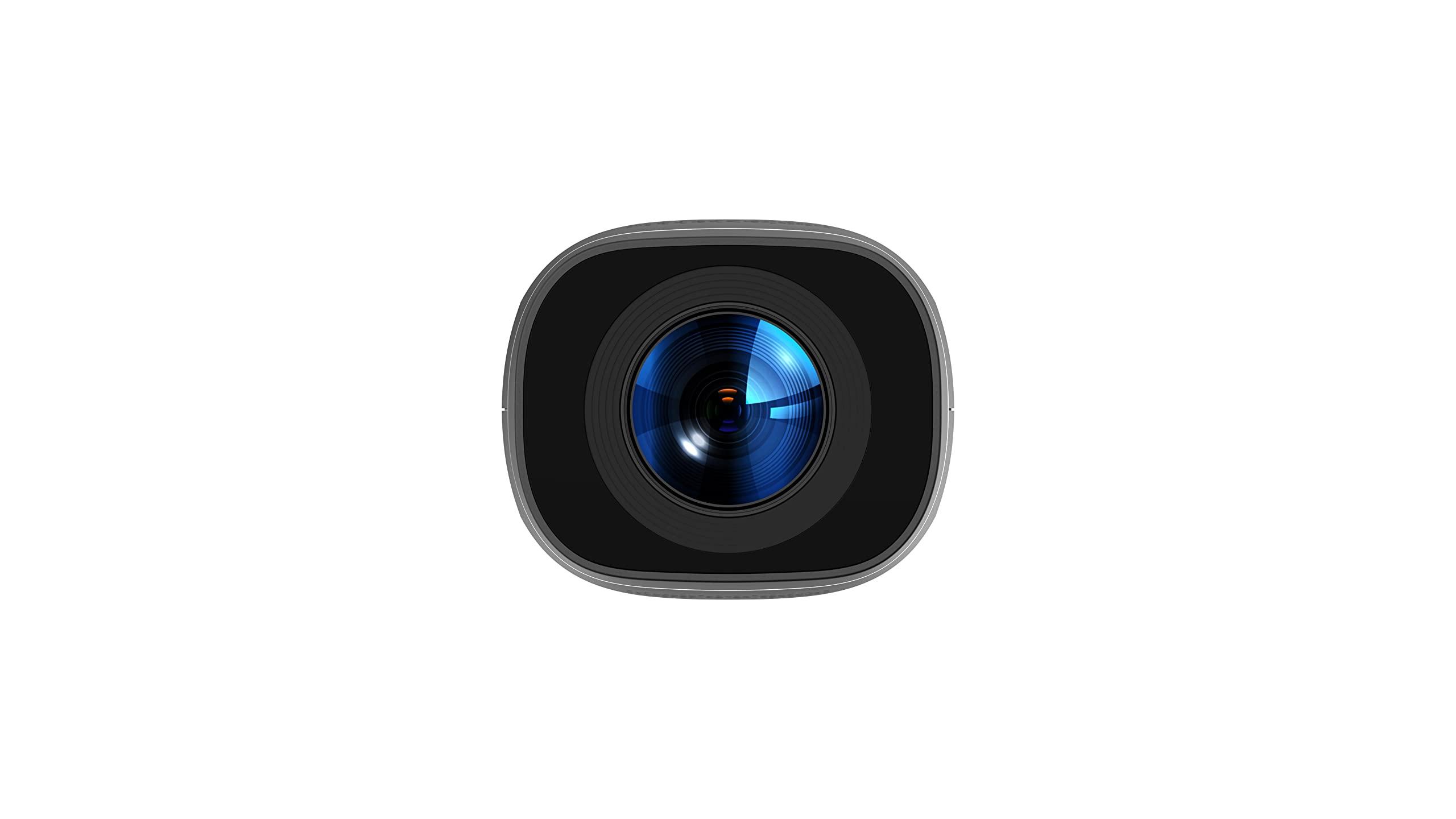

Optical Zoom Lens: 10x optical zoom, 5x digital zoom with 60.9 horizontal wide field of view.

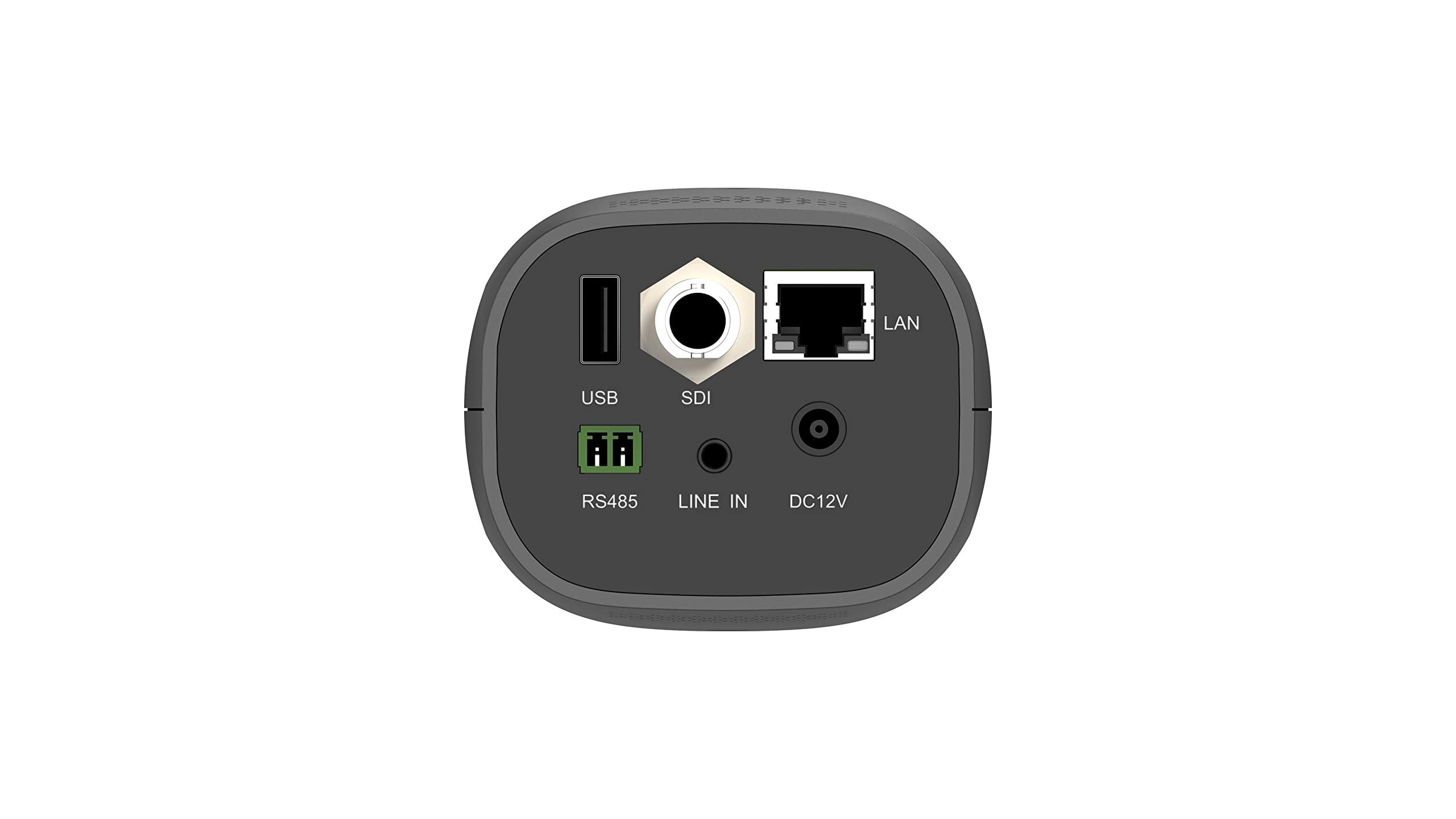

Video outputs: Supports simultaneously SDI, USB2.0 and IP streaming (LAN) outputs.
Dual Stream outputs: Supports simultaneously main stream and sub stream output.
Video Compression: Support H.264, H.265
Audio input and encoding: 3.5mmAudio Line-in, embedded with IP streaming out with AAC, MP3, G.711A audio encoding
Network Protocol: Support RTSP, RTMP, RTP multicast, ONVIF, GB/T28181 protocols
Control Protocol: Supports VISCA, PELCO-D, PELCO-P, ONVIF, UVC1.1 & VISCA-over-IP protocols and automatic identified the protocols
Communication interface: Half-Duplex RS485 Phoenix connector
PoE (Power Over Ethernet): Supports PoE, IEEE standard 802.af. Ethernet cable can transmit Power, IP control signal and video streaming output
USB2.0 Type-A Port: Able to connect with PC, Mac, or Chromebook computer easily. Compatible with any web conferencing or streaming software
