Description
- Support HDMI1.3v & 1.2 signal (10.2Gbps/deep color 36bit/xv-YCC/1080p24fs/dts-HD) for upto 200ft transmit via CAT5E/6 LAN cable.
- 1080P/1080i/720P/576P/576i/480P/480i; Support 3D video
- Support up to 200ft between the TX and RX unit; For better picture quality and longer distance transfer, we recommend to use Cat 6 cable.
- Easy to install: Plug and play, No driver or software installation required.
- Auto adjustment of feedback, equalization, and amplification

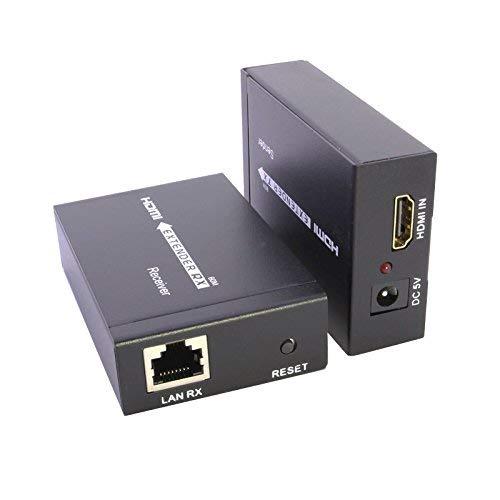

HDMI Extender by Cat 5e/6 Network Cable Up to 200Ft
Features:
One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Follow the standard of IEEE-568B
Transmission distance can be up to 200Ft (60 meters) for 1080p using CAT-6 Cable
Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable
Signalling rates up to 1.65Gbps in support of 1080P display
Specification: Signal Inputs/Output Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Port RJ45x1, HDMIx1 Maximum Single Link Range 1920 X 1200, 1080P Output Video HDMI 1.3b + HDCP 1.0/1.1 Video Format Supported VGA 640 x 480,800 x 600,1024 x 768,1920 x 1200 DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P Operating Frequency Video Amplifier Bandwidth 1.65Gbps Resolutions (HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p Environment Operating Temperature (0 ~ 50 ) Storage Temperature (0 ~ 50 ) Humidity RH85% Max. (Non-condensing) Power Requirement External Power Supply 5V DC
Note:
Quality of the network cable will affect the transmit length
Package Included:
1 x Sender
1 x Receiver
2 x Power adapter
