Description
Manufacturer: Axiom Memory Solutions
Part: SSDEV10IB240-AX
UPC: 841280117220
Category: Storage - Hard Drives - Internal Hard Drives
Description: Axiom Enterprise Value EV100

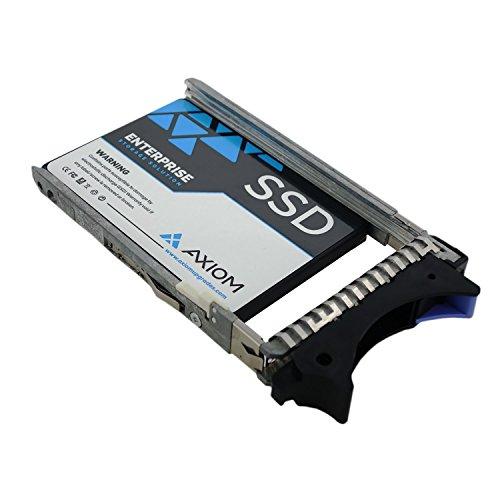

Axiom Enterprise Value EV100 - Solid state drive - encrypted - 240 GB -
hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - for Lenovo System x32XX
M2, x3350, x35XX, x35XX M2, x3650 M2, x36XX, x3850, x3850 M2, x3950 M2
Product Description Axiom Enterprise Value EV100 - solid state drive -
240 GB - SATA 6Gb/s
Type Solid state drive - hot-swap
Capacity 240 GB
Hardware Encryption Yes
Encryption Algorithm 256-bit AES
NAND Flash Memory Type 16nm multi-level cell (MLC)
Form Factor 2.5"
Interface SATA 6Gb/s
Data Transfer Rate 600 MBps
Features Temperature sensor, Enhanced Power Loss Data Protection,
End-to-end data protection, 0.3 DWPD, Power Fail Protection & Recovery
Manufacturer Warranty 5 years warranty
Designed For Lenovo System x3200 M2 (2.5"); x3250 M2 (2.5"); x3350
(2.5"); x3500 (2.5"); x3500 M2 (2.5"); x3550 (2.5"); x3550 M2 (2.5");
x3650 (2.5"); x3650 M2 (2.5"); x3655 (2.5"); x3850 (2.5"); x3850 M2
(2.5"); x3950 M2 (2.5")
Extended Specifications
General
Device Type Solid state drive - hot-swap
Capacity 240 GB
Hardware Encryption Yes
Encryption Algorithm 256-bit AES
NAND Flash Memory Type 16nm multi-level cell (MLC)
Form Factor 2.5"
Interface SATA 6Gb/s
Features Temperature sensor, Enhanced Power Loss Data Protection,
End-to-end data protection, 0.3 DWPD, Power Fail Protection & Recovery
Performance
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 500 MBps (read) / 260 MBps (write)
4KB Random Read 68000 IOPS
4KB Random Write 10200 IOPS
Reliability
MTBF 2,000,000 hours
Expansion & Connectivity
Interfaces. Compatible Systems IBM - System x3200 M2 (4367, 4368-xxx) IBM - System x3250 M2 (4190, 4191, 4194-xxx) IBM - System x3350 (4192, 4193-xxx) IBM - System x3500 (7977-xxx) IBM - System x3550 (7978-xxx) IBM - System x3650 (7979-xxx) IBM - System x3655 (7943, 7985-xxx) IBM - System x3850 (8863, 8864-xxx) IBM - System x3850 M2 (7141, 7233-xxx) IBM - System x3950 M2 (7141, 7233-xxx) IBM - eServer xSeries 366 (8863-xxx)
