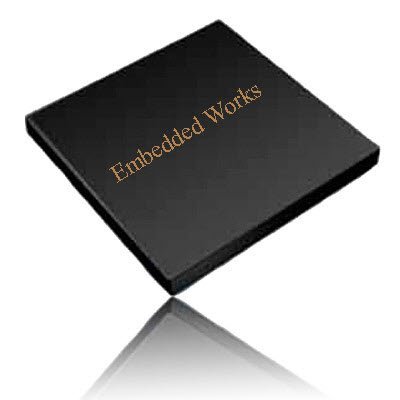

Azurewave AW-AH634 802.11abgn WiFi+BT SDIO Module Broadcom BCM4334 / Bluetooth 4.0 Class 1 or 2 Transmitter Operation

Description

• Form Factor: SiP Module
• 802.11abgn / Broadcom / Extended Temp.
• Interface: SDIO

Azurewave AW-AH634 Product Features:
- Integrates Broadcom solutions of BCM4334 WiFi /BT /FM SoC
- SDIO v2.0 interfaces support for WLAN
- High speed UART and PCM for Bluetooth
- FM subsystem control through Bluetooth HCI interface
- ECI-enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN
- Flexible Power Supply (2.3V~4.8V), supplies with internal switching regulator
- Multiple power saving modes for low power consumption
- Lead-free /Halogen Free Design
- 9.0mm(L) x 9.0mm(W) x 1.1mm(H) 86 pin LGA package

The AW-AH634 is an advanced IEEE 802.11abgn WLAN, Bluetooth and FM Combo module. The module is targeted to mobile and embedded devices which need a small footprint package, low power consumption, and multiple OS support. The module supports 2.4GHz and 5GHz bands single-stream IEEE 802.11n MAC/baseband/radio, Bluetooth 4.0 + HS, and FM radio receiver functionality. It also features an integrated Power Management Unit (PMU), Power Amplifiers (PAs), and a Low Noise Amplifier (LNA) to address the needs of mobile devices that require minimal power consumption and compact size. By using AW-AH634, the customers can easily enable the Wi-Fi, BT and FM embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market.
